Запчасти Case 1085B (4-068) - HEATER SHROUDING (04) - ELECTRICAL SYSTEMS

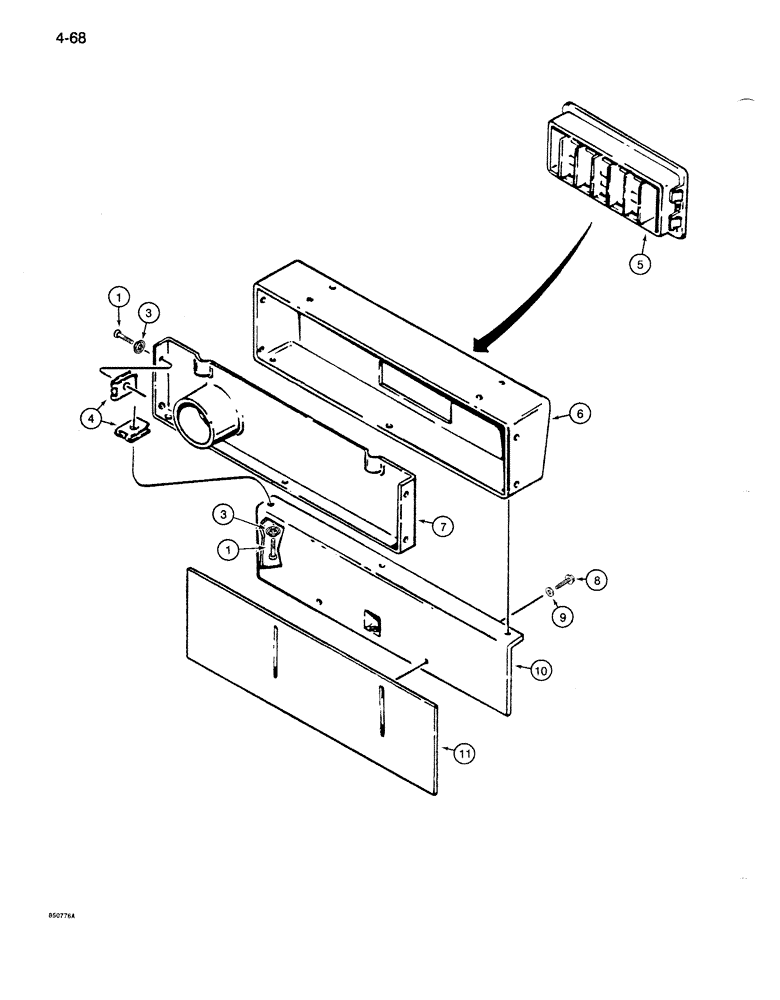

Схема запчастей Case 1085B - (4-068) - HEATER SHROUDING (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch

7шт.

3

F64315

WASHER

- No. 10, special trim type

7шт.

4

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

7шт.

5

F89948

GUARD

LOUVER - heater shroud

1шт.

6

S618291

PANEL

SHROUD - heater, outer

1шт.

7

S618292

PANEL

SHROUD - heater, inner

1шт.

8

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

2шт.

9

195-2251

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 1/8 inch

2шт.

10

S516015

PANEL

- seat, upper

1шт.

11

S516013

PANEL

- seat, lower

1шт.

Выбрано товаров: 10
