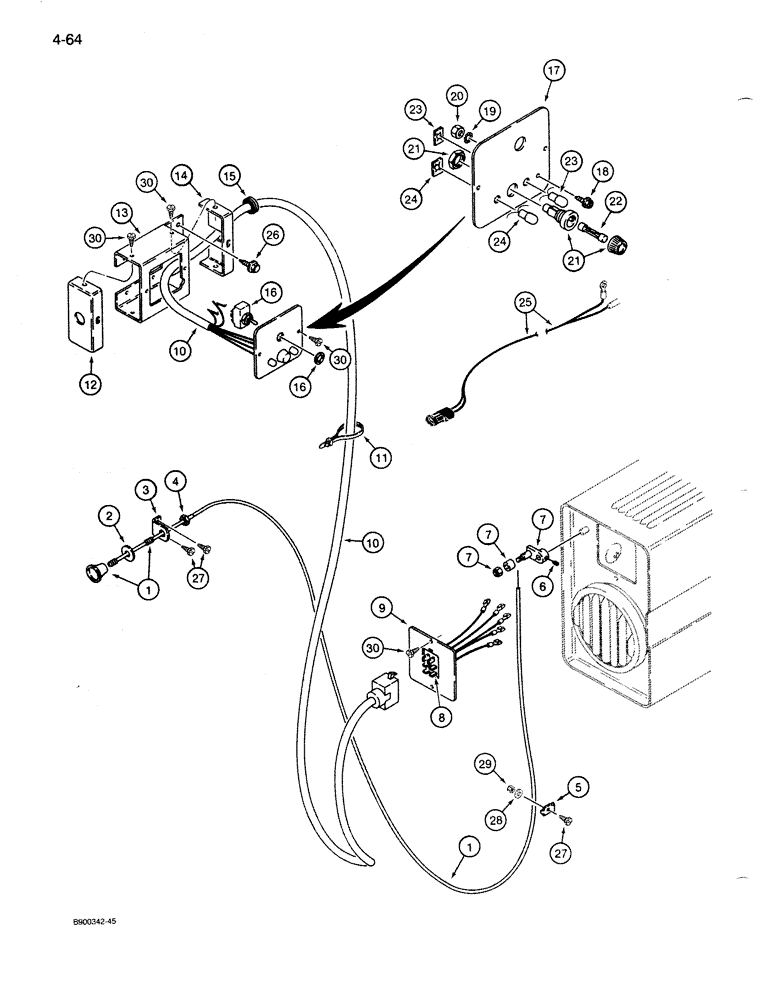

Запчасти Case 1085B (4-064) - LIQUID PROPANE FIRED HEATER, ELECTRICAL CONTROLS (04) - ELECTRICAL SYSTEMS

S517628

HEATER

ASSEMBLY - L.P. fired, heater SN 44402 and after, parts list Figures 4-58 through 4-64, Includes: Ref. 1 - 24

1шт.

Refer to the heater serial number when servicing internal parts.

1шт.

1

N60219

CABLE

CONTROL - push-pull, includes cable and knob

1шт.

2

N60221

PLATE

- control cable

1шт.

3

N60220

BRACKET

- control cable

1шт.

4

131-5

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 5/16 inch NF

1шт.

5

N60222

CLAMP

- cable

1шт.

6

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - set, hex socket headless, No. 6 NC x 1/4 inch, cup point

1шт.

7

S300350

LEVER

- control, includes collar and nut

1шт.

8

N60216

HARNESS

- electrical control, lower

1шт.

9

N60234

PANEL

- harness

1шт.

10

N14197

HARNESS

AND PANEL ASSEMBLY - electrical control, upper

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

N60217

BRACKET

- end, left-hand

1шт.

13

S300351

BRACKET

- mounting

1шт.

14

N60215

BRACKET

- end, right-hand

1шт.

15

N60214

GROMMET

- rubber

1шт.

S300341

KIT

- electrical control, Includes: Ref. 16 - 24

1шт.

16

S118159

SWITCH

- toggle, two pole

1шт.

17

N8776

PLATE

- mounting, toggle switch, lamps, and fuse

1шт.

18

163-17

SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

- machine, hex slotted washer head, No. 6 NC x 3/8 inch, used for ground

1шт.

19

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

1шт.

20

225-14106

NUT,#6-32

1шт.

21

S90394

HOLDER

- fuse, includes hex nut

1шт.

22

NSS

NOT SOLD SEPARAT

FUSE - 10 amp, obtain locally if S300341 Kit is not ordered

1шт.

23

N60373

LIGHT

LAMP - pilot, green, 24 volt, includes retainer

1шт.

24

N60374

LIGHT

LAMP - pilot, amber, 24 volt, includes retainer

1шт.

25

S243709

HARNESS

- heater electrical control to cab harness

1шт.

26

S40799

SCREW

- self-tapping, special, control, Serial Range: box-cab

2шт.

27

276-2058

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex, self tapping, No. 10 NC x 1/2 inch

3шт.

28

495-31022

WASHER,#10

1шт.

29

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

30

281-1438

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/2"

SCREW - hex washer, self-tapping, No. 6 NC x 1/2 inch

1шт.
