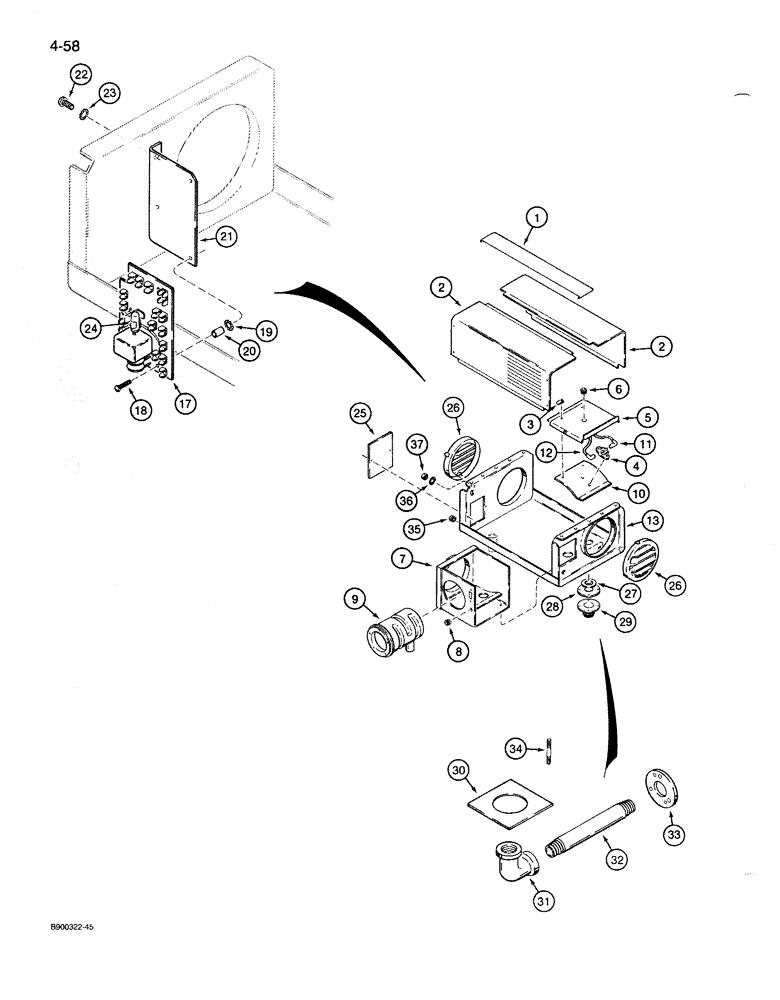

Запчасти Case 1085B (4-058) - LIQUID PROPANE FIRED HEATER, HOUSING, COVERS, AND HEAT (04) - ELECTRICAL SYSTEMS

S517628

HEATER

ASSEMBLY - L.P. fired, heater SN 44402 and after, parts list Figures 4-58 - 4-64, Includes: Ref. 1 - 37

1шт.

Refer to the heater serial number when servicing internal parts.

1шт.

1

S118132

BAR

COVER - heater, top

1шт.

2

S118133

COVER

- heater, includes two sides

1шт.

3

S118134

CLAMP

- cover

1шт.

4

S118138

THERMOSTAT

SWITCH - overheat

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

5

S118136

COVER

- heat exchanger

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

6

S118135

GROMMET

- cover

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - mounting, heat exchanger

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

8

S90383

GROMMET

- wiring, mounting bracket

2шт.

Part of heat exchanger and thermostat kit S300354

1шт.

9

NSS

NOT SOLD SEPARAT

EXCHANGER - heat

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

10

S118137

BAFFLE

- overheat switch

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - overheat switch

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - overheat switch

1шт.

Part of heat exchanger and thermostat kit S300354

1шт.

13

N8767

CASE ASSY.

HOUSING - heater

1шт.

S300360

KIT

- printed circuit board, Includes: Ref. 17 - 23

1шт.

17

N8779

BOARD

CIRCUIT - printed, electrical control

1шт.

18

187-1204

SCREW,Cross Flat Hd, #6 x 3/4"

- self-tapping, round head, No. 6 NC x 3/4 inch

3шт.

19

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

3шт.

20

NSS

NOT SOLD SEPARAT

SPACER - circuit board

3шт.

21

N8765

BRACKET

- mounting, circuit board

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW - machine, round head, No. 8 NC x 1/4 inch

2шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock, external tooth, No. 8

1шт.

24

S110317

SWITCH

- mercury, tip over

1шт.

25

S300355

COVER

PLATE - cover, heater housing

1шт.

26

N8768

KIT

- air deflector, includes 2 deflectors and retainer clips

1шт.

S239983

SEAL

- exhaust seal, Includes: Ref. 27 - 29

1шт.

27

S110309

WASHER

- exhaust seal

1шт.

28

S118140

GASKET

- exhaust seal

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR - exhaust

1шт.

S300349

KIT

- exhaust components, Includes: Ref. 30 - 34

1шт.

30

S118179

SHIELD

- heat

1шт.

31

S118178

ELBOW

- exhaust

1шт.

32

S300327

NIPPLE, LUBE

NIPPLE - exhaust

1шт.

33

S300326

INSULATOR

- exhaust

1шт.

34

S110405

STUD

- heater mounting

1шт.

35

S90383

GROMMET

- wiring, heater housing

1шт.

36

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

37

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

1шт.

S300354

KIT

- heat exchanger and thermostat controls, Includes: Ref. 4 - 12 and S300342 kit on Fig. 4-060, Refs. 5- 15

1шт.
