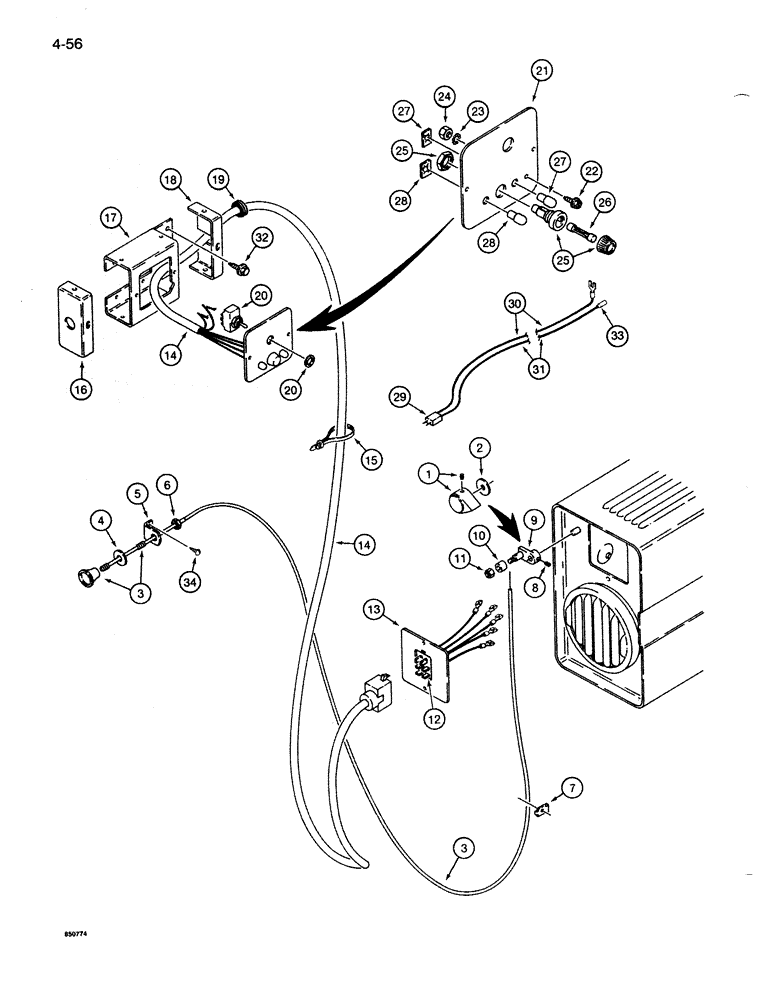

Запчасти Case 1085B (4-056) - LIQUID PROPANE FIRED HEATER, ELECTRICAL CONTROLS (04) - ELECTRICAL SYSTEMS

S516251

HEATER

ASSEMBLY - L.P. fired, prior to heater SN 44402, no longer available, replace with S517628 heater assembly, parts list Figures 4-58 through 4-64, service with parts list Figures 4-50 through 4-56, Includes: Ref. 1 - 28

1шт.

(No Seal Kit Available)

1шт.

1

S118156

KNOB

- heat control, includes set screw, if used

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - spring, if used

1шт.

3

N60219

CABLE

CONTROL - push pull

1шт.

4

N60221

PLATE

- legend

1шт.

5

N60220

BRACKET

- control

1шт.

6

131-5

LOCK NUT,3/8"-16, GB

NUT - hex, self locking, 5/16 inch NF

1шт.

7

N60222

CLAMP

- cable

1шт.

8

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - set, hex socket headless, No. 6 NC x 1/4 inch, cup

1шт.

9

N60232

LEVER

- control

1шт.

10

N60233

COLLAR

- lever

1шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

12

N60216

HARNESS

- electrical control, lower

1шт.

13

N60234

PANEL

- harness

1шт.

14

N14197

HARNESS

AND PANEL ASSEMBLY - electrical control, upper

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

N60217

BRACKET

- end, left-hand

1шт.

17

N60218

BRACKET

- mounting

1шт.

18

N60215

BRACKET

- end, right-hand

1шт.

19

N60214

GROMMET

- rubber

1шт.

20

S118159

SWITCH

- toggle, two pole

1шт.

21

N8776

PLATE

- mounting, toggle switch

1шт.

22

463-4066

SCREW,Slot Hex Wash Hd, #6-32 x 3/8"

- machine, hex slotted washer, No. 6 NC x 3/8 inch

1шт.

23

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

1шт.

24

225-14106

NUT,#6-32

1шт.

25

S90394

HOLDER

- fuse

1шт.

26

REF

INSTRUCTION

FUSE - 10 amp, obtain locally

1шт.

27

N60373

LIGHT

- pilot, green, 24 volt

1шт.

28

N60374

LIGHT

- pilot, amber, 24 volt

1шт.

29

S116501

PLUG

CONNECTOR - to cab wiring harness

1шт.

30

S234996

ELECTRICAL WIRE

WIRE - ground

1шт.

31

S111780

ELECTRICAL WIRE

WIRE - to heater power wire

1шт.

32

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, control box to cab

2шт.

33

223-251

MAKING-UP

CONNECTOR - crimp type, 10-12 wire size

1шт.

34

276-2058

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.
