Запчасти Case 1085B (4-054) - LIQUID PROPANE FIRED HEATER, IGNITION, BURNER, AND FAN (04) - ELECTRICAL SYSTEMS

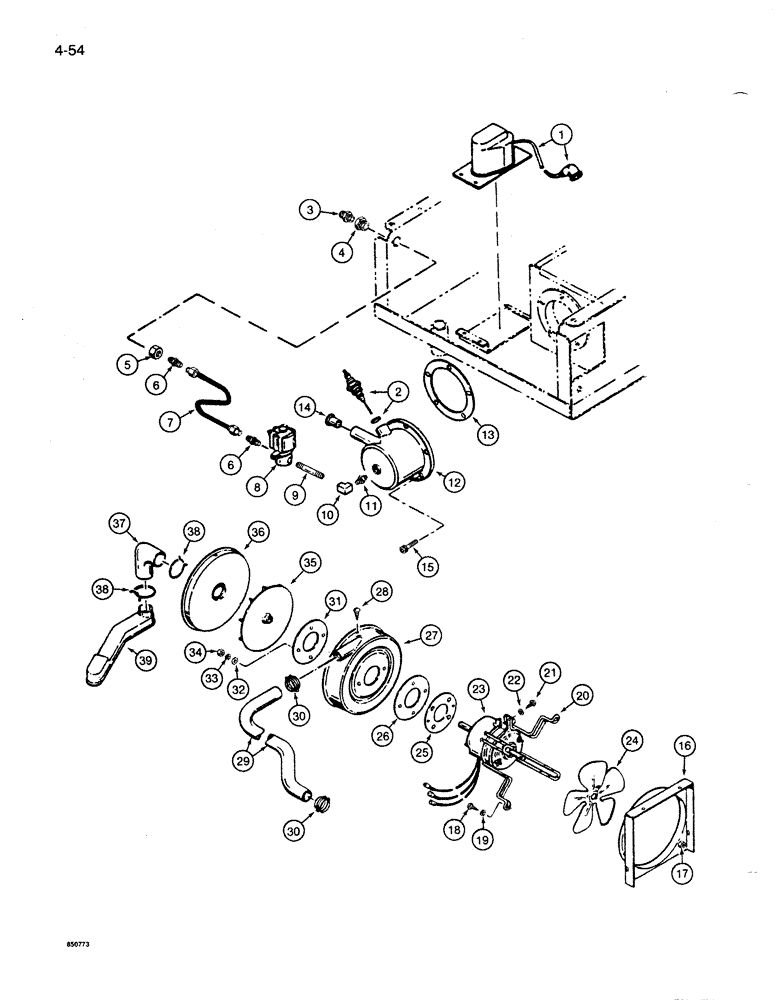

Схема запчастей Case 1085B - (4-054) - LIQUID PROPANE FIRED HEATER, IGNITION, BURNER, AND FAN (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

S516251

HEATER

ASSEMBLY - L.P. fired, prior to heater SN 44402, no longer available, replace with S517628 heater assembly, parts list Figures 4-58 through 4-64, service with parts list Figures 4-50 through 4-56, Includes: Ref. 1 - 39

1шт.

Refer to the heater serial number when servicing internal parts.

1шт.

1

N60384

COIL

IGNITION - electrical, heater

1шт.

2

S90475

PLUG

- ignition, includes gasket

1шт.

3

S118259

ELEC CONNECTOR

ADAPTER - male, straight

1шт.

4

S90413

CONNECTOR, ELEC

ADAPTER - female

1шт.

5

131-418

LOCK NUT,PAL, 5/8"-18

NUT - hex, self-locking, 5/8 inch NF

1шт.

6

222-801

HYD CONNECTOR,3/8"-24, 45 Degree Fl x 1/8" NPT

ADAPTER - straight, 3/8-24 45 degree flare x 1/8 inch PT

2шт.

7

N8773

LINE

HOSE - fuel

1шт.

8

N8772

VALVE

- solenoid, 24 volt

1шт.

9

NSS

NOT SOLD SEPARAT

NIPPLE - pipe, at solenoid

1шт.

10

NSS

NOT SOLD SEPARAT

ELBOW - female, 90 degree

1шт.

11

N8770

RESISTOR

RESTRICTOR - fuel, .062 inch (1.6 mm) diameter

1шт.

12

N8771

HEAD

- burner

1шт.

13

S90404

GASKET

- burner head

1шт.

14

NSS

NOT SOLD SEPARAT

RESTRICTOR - air, burner intake

1шт.

15

165-23

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

5шт.

16

NSS

NOT SOLD SEPARAT

PLATE - mounting, fan

1шт.

17

NSS

NOT SOLD SEPARAT

NUT - mounting plate

4шт.

18

187-1176

SCREW

- self-tapping, pan head Philllips, No. 10 NC x 1 inch

4шт.

19

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

20

NSS

NOT SOLD SEPARAT

MOUNT - fan motor

1шт.

21

187-1150

SCREW,Cross Pan Hd, 1/4"-20 x 1"

- self-tapping, pan head Phillips, 1/4 NC x 1 inch

1шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

S239980

MOTOR

- fan, 24 volt

1шт.

24

NSS

NOT SOLD SEPARAT

BLADE - fan

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - fan motor

1шт.

26

NSS

NOT SOLD SEPARAT

SPACER - fan motor

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - blower

1шт.

28

NSS

NOT SOLD SEPARAT

SCREW - blower housing

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - intake blower

1шт.

30

NSS

NOT SOLD SEPARAT

CLAMP - hose

2шт.

31

NSS

NOT SOLD SEPARAT

SPACER - blower wheel

1шт.

32

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

33

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

34

225-14210

NUT,#10-32

4шт.

35

NSS

NOT SOLD SEPARAT

WHEEL - blower

1шт.

36

NSS

NOT SOLD SEPARAT

COVER - wheel

1шт.

37

NSS

NOT SOLD SEPARAT

ELBOW - blower outlet

1шт.

38

NSS

NOT SOLD SEPARAT

CLAMP - hose

2шт.

39

NSS

NOT SOLD SEPARAT

DUCT - air

1шт.

N14104

KIT

service, includes Ref. 16 - 39

1шт.
