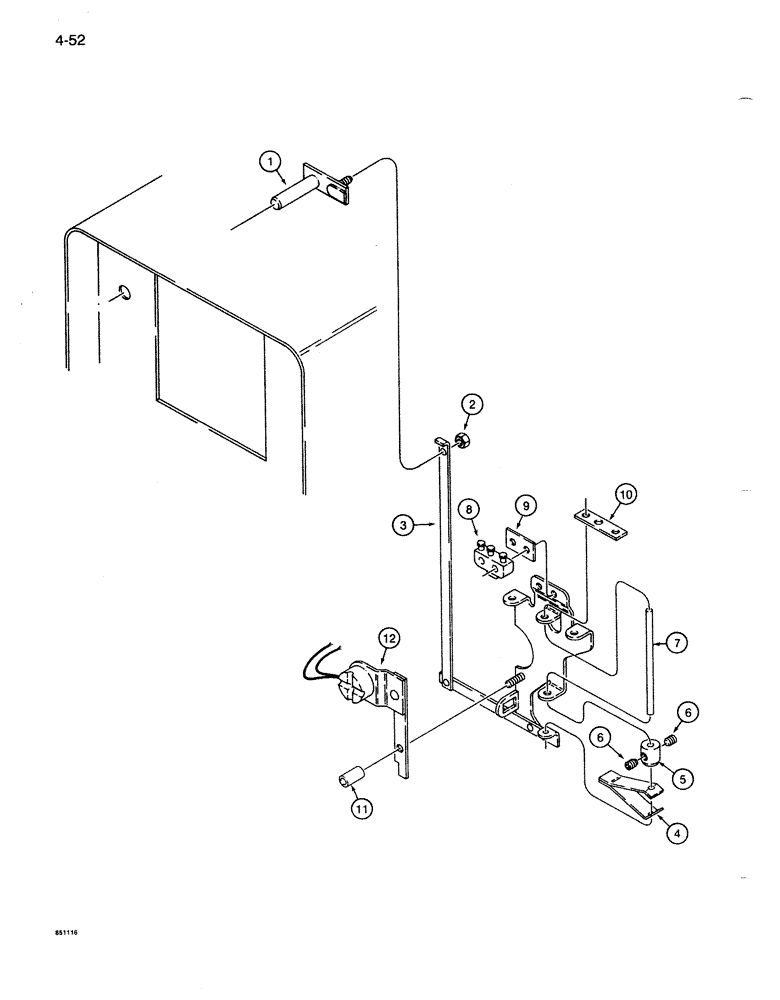

Запчасти Case 1085B (4-052) - LIQUID PROPANE FIRED HEATER, HEATER CONTROLS (04) - ELECTRICAL SYSTEMS

S516251

HEATER

ASSEMBLY - L.P. fired, prior to heater SN 44402, no longer available, replace with S517628 heater assembly, parts list Figures 4-58 through 4-64, service with parts list Figures 4-50 through 4-56, Includes: Ref. 1 - 12

1шт.

Refer to the heater serial number when servicing internal parts.

1шт.

1

S118158

ARM

- pivot, heat control

1шт.

2

N8777

NUT

- stop, special

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - microswitch and bi-metal control mounting

1шт.

4

S90497

BLADE

CONTROL - bi-metal, replaces S118152 control

1шт.

5

NSS

NOT SOLD SEPARAT

STOP - actuator

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - set, actuator stop

2шт.

7

NSS

NOT SOLD SEPARAT

ROD - actuating

1шт.

8

S90493

SWITCH

MICROSWITCH - heat control

1шт.

9

S110357

INSULATOR

- microswitch

1шт.

10

N8778

SHIELD

- heat

1шт.

11

N8774

SPACER

- flame switch bracket

1шт.

12

N8775

SWITCH

- flame

1шт.
