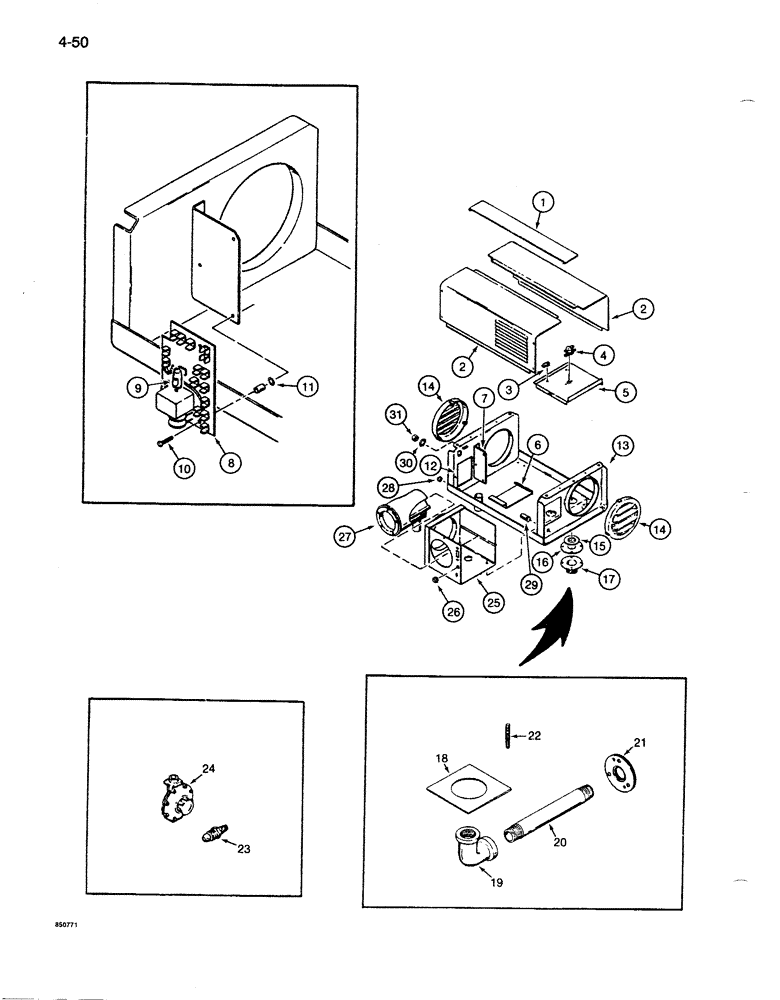

Запчасти Case 1085B (4-050) - LIQUID PROPANE FIRED HEATER, HOUSING, COVERS, & HEAT EXCHANGER 1085B UNITS PRIOR TO P.I.N. JAK003192 (04) - ELECTRICAL SYSTEMS

S516251

HEATER

ASSEMBLY - L.P. fired, prior to heater SN 44402, no longer available, replace with S517628 heater assembly, parts list Figures 4-58 through 4-64, service with parts listed below and on Figures 4-52 through 4-56, Includes: Ref. 1 - 31

1шт.

Refer to the heater serial number when servicing internal parts.

1шт.

1

S118132

BAR

COVER - heater, top

1шт.

2

S118133

COVER

- heater, side

2шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - cover

2шт.

4

S118138

THERMOSTAT

SWITCH - overheat

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - heat exchanger

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - mounting, ignition

1шт.

7

N8765

BRACKET

- mounting, circuit board

1шт.

8

N8779

BOARD

CIRCUIT - printed, electrical control

1шт.

9

S110317

SWITCH

- mercury, tip over

1шт.

10

187-1204

SCREW,Cross Flat Hd, #6 x 3/4"

- self-tapping, flat Phillips, No. 6 NC x 3/4 inch

3шт.

11

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

3шт.

12

N8766

PLATE

- cover

1шт.

13

N8767

CASE ASSY.

HOUSING - heater, includes Ref. 6, 29, and 30

1шт.

14

N8768

KIT

- air deflector, includes retainer clips

2шт.

S239983

SEAL

- exhaust seal

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - exhaust seal

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - exhaust seal

1шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - exhaust seal

1шт.

18

S118179

SHIELD

- heat

1шт.

19

S118178

ELBOW

- exhaust

1шт.

20

NSS

NOT SOLD SEPARAT

NIPPLE - exhaust

1шт.

21

S91309

INSULATOR

- exhaust

1шт.

22

S110405

STUD

- heater mounting

1шт.

23

S118177

CONNECTOR, ELEC

CONNECTOR - includes flow regulator

1шт.

24

NSS

NOT SOLD SEPARAT

REGULATOR - pressure

1шт.

25

NSS

NOT SOLD SEPARAT

BRACKET - mounting, heat exchanger

1шт.

26

NSS

NOT SOLD SEPARAT

GROMMET - wiring, mounting bracket

1шт.

27

N8769

HEAT EXCHANGER

EXCHANGER - heat

1шт.

28

NSS

NOT SOLD SEPARAT

GROMMET - wiring, heater case

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER - heater case

1шт.

30

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

31

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

1шт.
