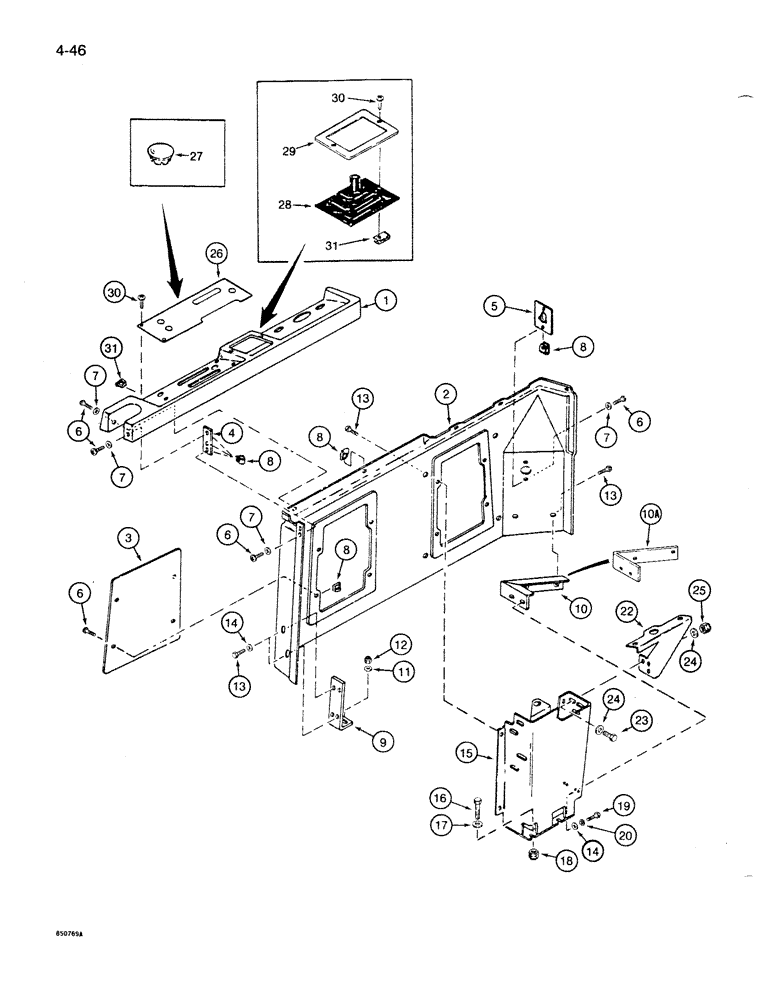

Запчасти Case 1085B (4-046) - RIGHT-HAND INSTRUMENT PANEL, CONSOLE AND COVERS (04) - ELECTRICAL SYSTEMS

1

S956668

COVER

- console and instrument panel

1шт.

2

S956662

PANEL, SIDE

PANEL - console, outer

1шт.

3

S516014

COVER

- side, console

2шт.

4

S118869

BAR

BRACKET - mounting, Serial Range: cover-console

1шт.

5

S239946

PLATE

- mounting, key switch

1шт.

6

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch

18шт.

7

F64315

WASHER

- special finish, black

10шт.

8

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

18шт.

9

S239381

BRACKET

- support, console rear

1шт.

10

S515427

BRACKET

- support, console front, no longer available, order S516665 bracket

1шт.

10a

S516665

BRACKET

- support, console front

1шт.

11

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 1/8 inch, hardened

1шт.

12

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

13

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex washer head, self-tapping, 1/4 NC x 3/4 inch

8шт.

14

195-2250

WASHER,.266" x 13/16" x .083"

- flat, 17/64 x 13/16 x 3/32 inch

4шт.

15

S615423

SUPPORT

BRACKET - support, right-hand control

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

18

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

S615986

BRACKET

- mounting, gauge

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

25

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

26

S616761

PANEL, INSTRUMENTS

PANEL - instrument, right-hand

1шт.

27

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, if used

1шт.

28

S615715

BOOT

- control handle, at console

1шт.

29

S239340

FLANGE

RETAINER - boot

1шт.

30

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch

4шт.

31

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

4шт.
