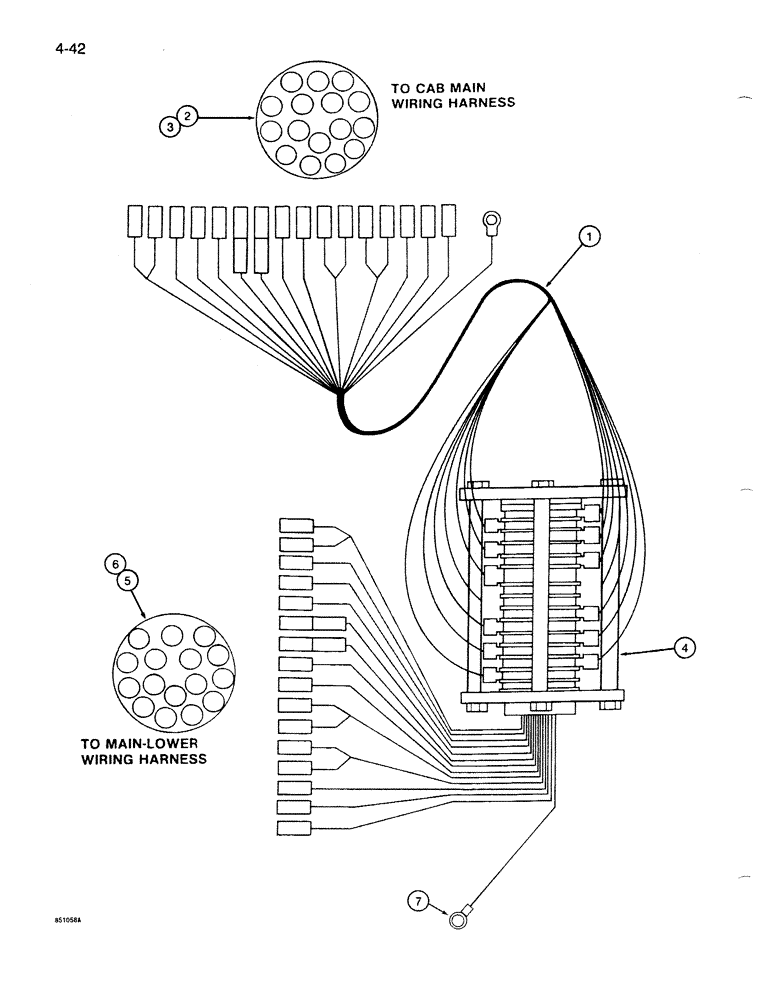

Запчасти Case 1085B (4-042) - COLLECTOR RING ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

S616965

SPECIAL RING

RING ASSEMBLY - collector, electrical, not available, order components

1шт.

1

S616959

HARNESS

- wiring, collector ring, Includes: Ref. 2 and 3

1шт.

2

S99514

COUPLING

CONNECTOR - harness, female, with movable ring on body, contact sockets not included

1шт.

3

S99513

CONTACT

- connector, socket, not shown

16шт.

4

S619617

COLLAR

RING ASSEMBLY - collector, 14 rings, 35 amp, replaces S617234 ring assembly, see Fig. 4-040, Includes: Ref. 5 and 6

1шт.

5

S99518

PIVOT ASSY.

CONNECTOR - harness, male, with non-movable threaded body, contact pins not included

1шт.

6

S99516

CONTACT

- connector, pin, not shown

16шт.

7

223-56

TERMINAL CONNECTOR,10 - 12

- eyelet, 10-12 wire x 3/8 inch screw size

1шт.
