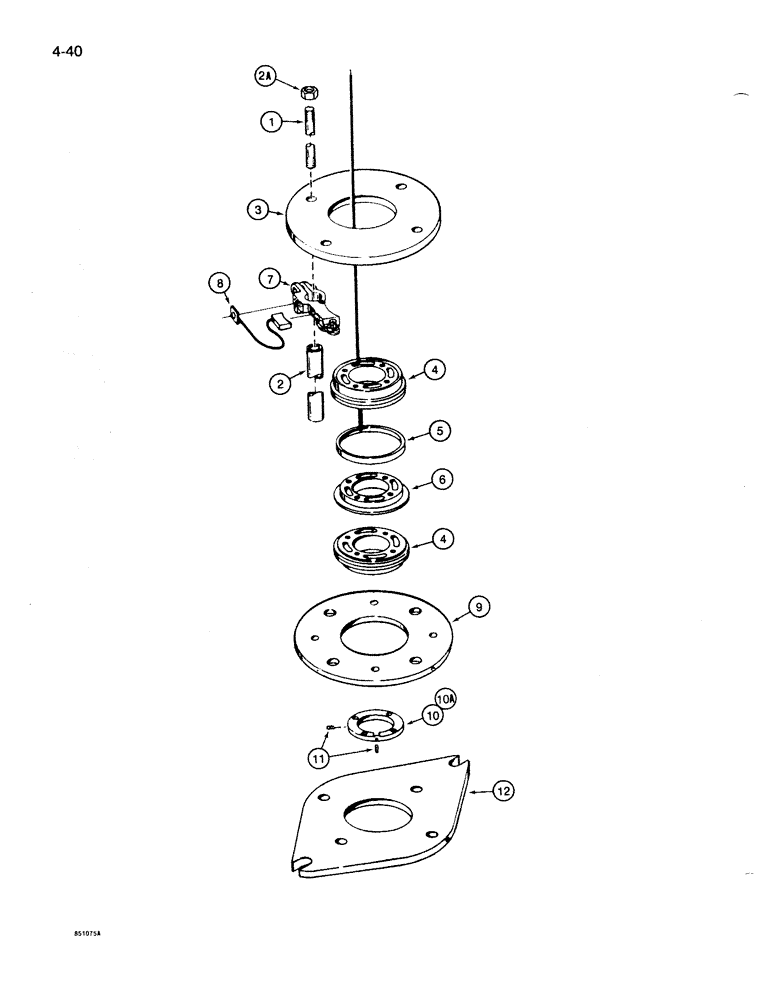

Запчасти Case 1085B (4-040) - ELECTRICAL COLLECTOR RING (04) - ELECTRICAL SYSTEMS

S616965

SPECIAL RING

RING ASSEMBLY - collector, electrical, not available, order components

1шт.

S617234

COLLAR

RING ASSEMBLY - collector, 14 rings, 35 amp, no longer available, for service order S619617 ring assembly

1шт.

S619617

COLLAR

RING ASSEMBLY - collector, 14 rings, 35 amp

1шт.

S92247

STUD

ASSEMBLY - brush holder, Includes: Ref. 1 - 2A

4шт.

1

S92249

STUD

- brush holder

1шт.

2

S92248

INSULATOR

- stud, brush holder

1шт.

2a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

S92261

BEARING HOUSING

BEARING - collector ring, upper

1шт.

N60044

BEARING ASSY

RING ASSEMBLY - bearing, upper and lower, Includes: Ref. 4 - 4A

2шт.

4

NSS

NOT SOLD SEPARAT

RING - bearing, upper and lower

1шт.

4a

S118005

RING

INSULATOR - ring, not shown

1шт.

5

S92242

RING

WIRE - ring and lead, collector, 10 gauge

4шт.

5

S105590

RING ASSY.

WIRE - ring and lead, collector, 12 gauge

5шт.

5

S105591

RING ASSY.

WIRE - ring and lead, collector, 14 gauge

6шт.

6

S92258

RING

- insulator, ring and lead wire

14шт.

7

S219605

BRUSH HOLDER

BRUSH ASSEMBLY - holder, collector ring, Includes: Ref. 7A - 7E

14шт.

7a

165-111

HEX SOC SCREW,1/4" - 28 x 5/8"

BOLT - hex socket, 1/4 NF x 5/8 inch, not shown

1шт.

7b

S92243

BRUSH

HOLDER - brush, not shown

1шт.

7c

S92244

CONNECTOR, ELEC

CONNECTOR - brush holder, not shown

1шт.

7d

S92246

SCREW

- No. 10 NF x 3/8 inch, brass, special, not shown

1шт.

7e

S92256

SPRING

- brush, not shown

1шт.

8

S92257

BRUSH, COMMUTATOR

WIRE - lead with brush, collector ring

14шт.

9

N60372

BEARING

- collector, lower

1шт.

10

S116549

COLLAR

- locking, use with S617234 ring assembly

1шт.

10a

S301481

COLLAR

- locking, use with S619617 ring assembly

1шт.

11

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, hex socket, 5/16 NC x 1/2 inch, cup point

2шт.

12

S93228

BEARING HOUSING

PLATE - mounting, collector ring

1шт.

13

S92252

SCREW

- special, locking collar, use with S617234 ring assembly, not shown

4шт.

13a

S301437

STUD

- special, locking collar, use with S619617 ring asembly, not shown

4шт.

14

S616959

HARNESS

- wiring, collector ring, not shown

1шт.

See Fig. 4-042 for harness and connectors.

1шт.
