Запчасти Case 1085B (4-038) - LAMPS (04) - ELECTRICAL SYSTEMS

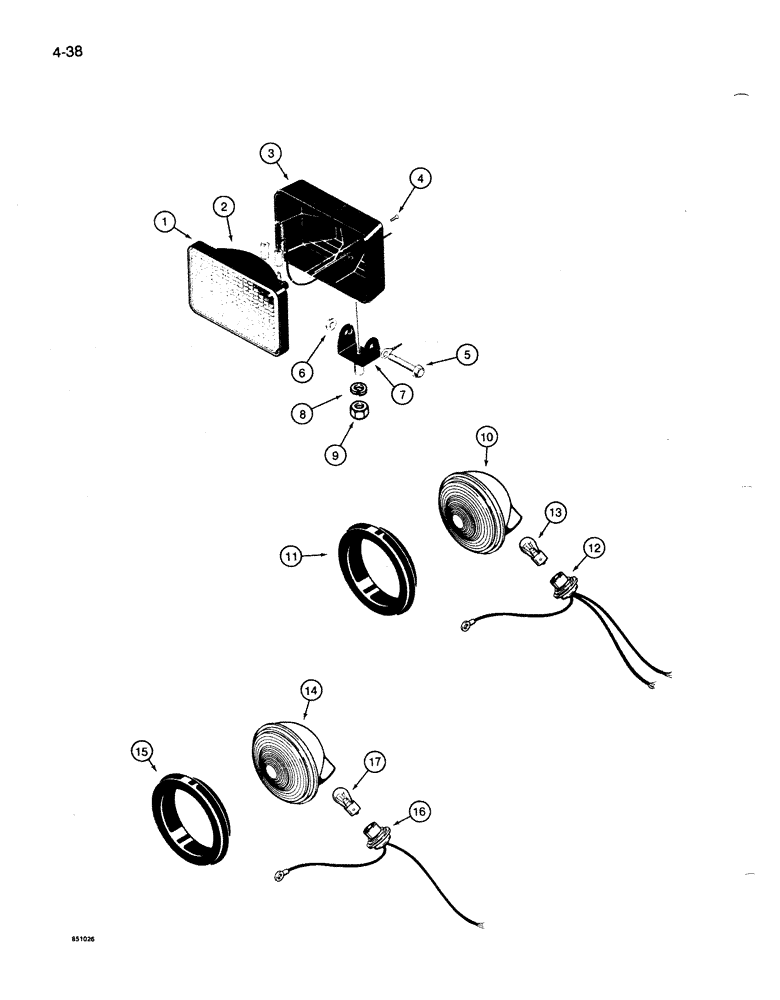

Схема запчастей Case 1085B - (4-038) - LAMPS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

S516889

LAMP

ASSEMBLY - work, Includes: Ref. 1 - 9

3шт.

1

NSS

NOT SOLD SEPARAT

RETAINER - bulb, work

1шт.

2

F45305

HEADLIGHT

BULB - sealed beam, work lamp

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL ASSEMBLY - lamp, work

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat slotted, No. 8-18 x 1/2 inch, work lamp

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Work lamp Hex Flg, 5/16"-18 x 2", Serr

1шт.

6

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC, Work lamp

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - lamp pivot, work

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Work lamp 1/2"

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Work lamp 1/2"-13, G5

1шт.

S515997

STOP LIGHT

LAMP ASSEMBLY - red stop, turn, and tail, not available, order components, Includes: Ref. 10 - 13

2шт.

10

N60379

HOUSING ASSY.

HOUSING ASSEMBLY - lamp, includes red lens, stop, turn, and tail

1шт.

11

N60380

GROMMET

RETAINER - lamp, rubber, stop, turn, and tail

1шт.

12

N60381

SOCKET

ASSEMBLY - lamp, stop, turn, and tail

1шт.

13

L33194

BULB

- lamp, 24 volt, No. 1662, stop, turn, and tail

1шт.

S515998

LIGHT

LAMP ASSEMBLY - amber, front turn, not available, order components, Includes: Ref. 14 - 17

2шт.

14

N60382

HOUSING ASSY.

HOUSING ASSEMBLY - lamp, includes amber lens, front turn

1шт.

15

N60380

GROMMET

RETAINER - lamp, rubber, front turn lamp

1шт.

16

N60383

SOCKET

ASSEMBLY - lamp, front turn

1шт.

17

A15084

LAMP

BULB - lamp, 24 volt, No. 1683, front turn

1шт.

Выбрано товаров: 20
