Запчасти Case 1085B (4-036) - WORK LAMPS AND ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

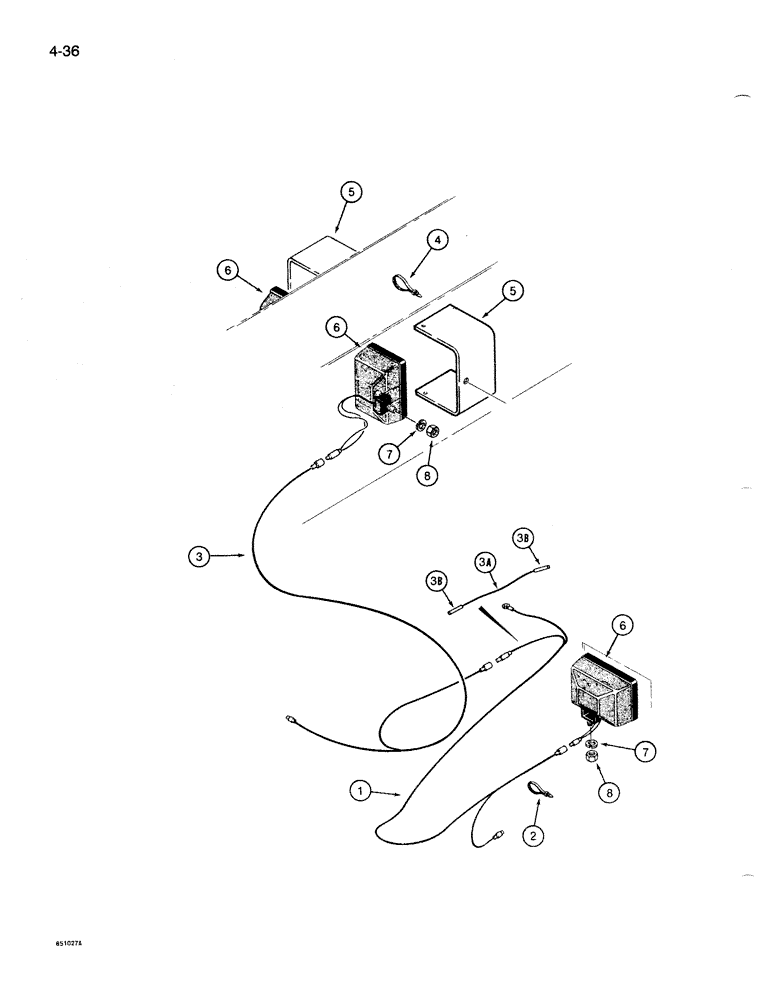

Схема запчастей Case 1085B - (4-036) - WORK LAMPS AND ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

S242622

HARNESS

- work lamps, connects to main cab harness

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, for S242622 harness

1шт.

3

S242623

HARNESS

- to work lamps on arm, units with Y boom

1шт.

3

S242816

HARNESS

- to work lamps on arm, units with 1086B logger boom

1шт.

3a

S243328

ELECTRICAL WIRE

WIRE - jumper, 48 inch, used on 1086B models with a 60 inch cab riser

1шт.

3b

223-250

ROD, CONNECTING

CONNECTOR - crimp type, 14-16 wire size

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - trie, for S242623 or S242816 harness

1шт.

5

S242621

BRACKET

- work lamp, welds to excavator or logger boom arm

2шт.

6

S516889

LAMP

ASSEMBLY - work, parts list Fig. 4-038

3шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

Выбрано товаров: 11
