Запчасти Case 1085B (4-034) - INSTRUMENT PANEL ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

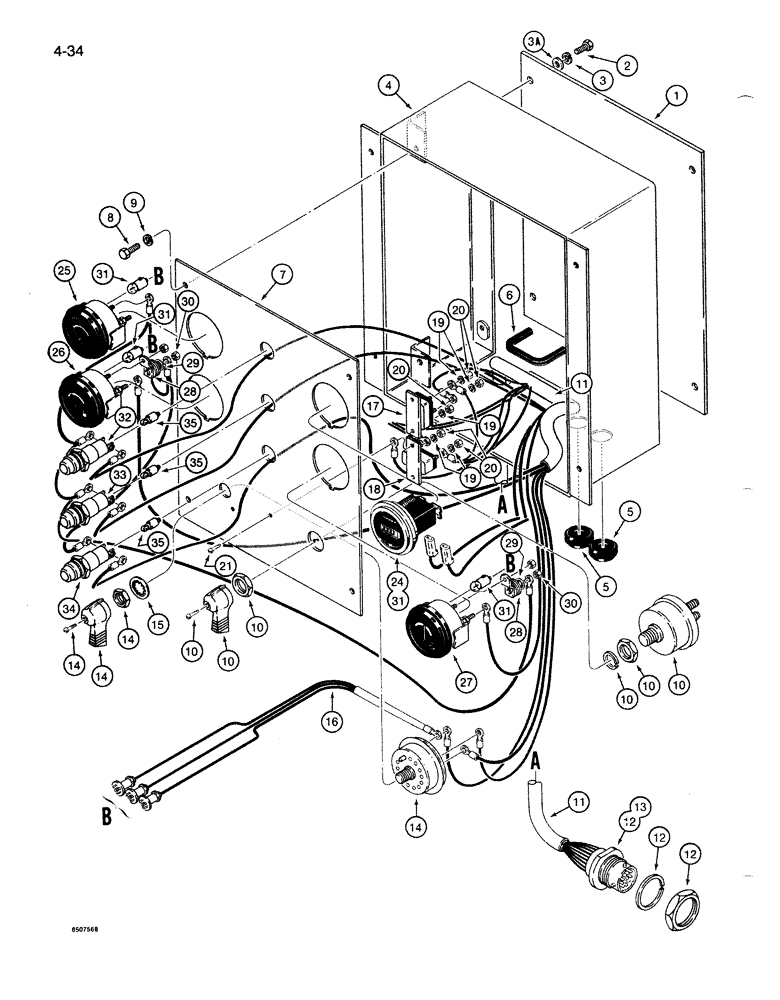

Схема запчастей Case 1085B - (4-034) - INSTRUMENT PANEL ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

S516941

COVER

- access, box

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3a

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

S516939

PANEL

BOX - electrical, instrument panel

1шт.

5

D51643

GROMMET

- electrical box

2шт.

6

S119372

GUARD - edge, rubber, 5 inch (127 mm) long, cut from S118467 bulk roll, see below

1шт.

7

S516940

PANEL

- engine instrument

1шт.

8

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

D75385

IGNITION SWITCH

SWITCH - disconnect, see Fig. 4-016 for ground and battery cables

1шт.

11

S618832

HARNESS

- instrument panel, Includes: Ref. 13

1шт.

13

S99516

CONTACT

- connector, pin, not shown

13шт.

14

S76367

SWITCH

ASSEMBLY - light

1шт.

15

93-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - lock, internal tooth, 1/2 inch

1шт.

16

S242703

HARNESS

- instrument panel lamps

1шт.

17

D37252

BREAKER

- circuit, 10 amp

1шт.

18

S49918

BREAKER

- circuit, 30 amp

1шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

20

225-14210

NUT,#10-32

5шт.

21

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- machine, pan head slotted, No. 10 NF x 3/4 inch

1шт.

24

S515551

HOURMETER

- engine

1шт.

25

S239336

VOLTMETER

GAUGE - voltmeter

1шт.

26

1341324C1

ELECTRICAL GAUGE

GAUGE - fuel, replaces S240215 gauge

1шт.

27

S239138

GAUGE

- engine temperature

1шт.

28

S108406

RESISTOR

- fuel and engine temperature gauges

2шт.

29

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

30

225-14210

NUT,#10-32

2шт.

31

S116543

BULB

- gauge lamp

4шт.

32

S242610

LIGHT

LAMP - warning, engine oil pressure

1шт.

33

S239150

LIGHT

LAMP - warning, hydraulic oil filter

1шт.

34

S240123

LIGHT

LAMP - warning, torque converter temperature

1шт.

35

A25258

BULB

- warning lamp

3шт.

S118467

SEAL

GUARD - rubber edge, bulk roll, 10 ft (3.05 m) long

1шт.

Выбрано товаров: 34
