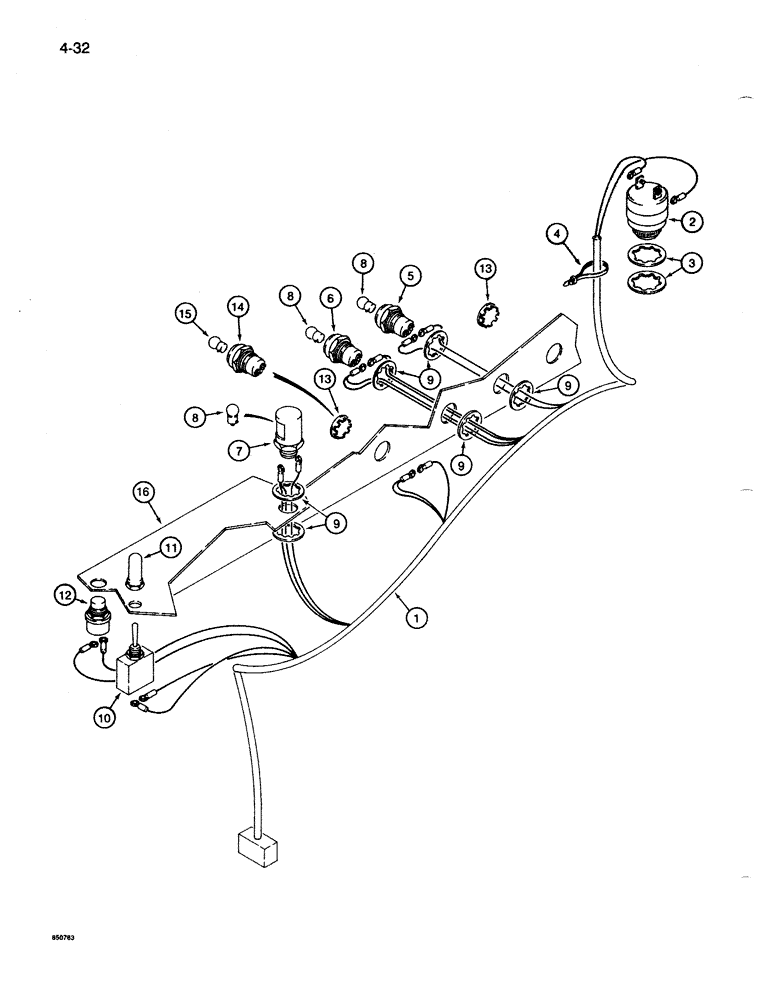

Запчасти Case 1085B (4-032) - RIGHT CONSOLE ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

S618825

HARNESS

- electrical, right console

1шт.

2

S242611

ALARM

BUZZER - low engine oil pressure

1шт.

3

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, harness

1шт.

5

S240562

LIGHT

LAMP - warning, low air

1шт.

6

S240123

LIGHT

LAMP - warning, torque converter

1шт.

7

S239151

LIGHT

LAMP - instrument panel

1шт.

8

A25258

BULB

- warning and panel lamp

3шт.

9

193-22

LOCK WASHER,Int Tooth, #4

WASHER, LOCK, Int Tooth, #4

6шт.

10

S119326

SWITCH

- toggle, high-low range

1шт.

11

S119401

BOOT

- rubber, toggle switch

1шт.

12

S241920

SWITCH

BUTTON - engine shutoff

1шт.

13

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, instrument panel, used in front hole and hole for optional auxilliary steering low pressure lamp

1-2шт.

14

S240579

INTERIOR LIGHT

LAMP - warning, auxiliary steering low pressure

1шт.

15

A25258

BULB

- steering warning lamp

1шт.

16

S956668

COVER

- console and instrument panel, see Fig. 4-046, Ref. 1 for cover and related parts

1шт.
