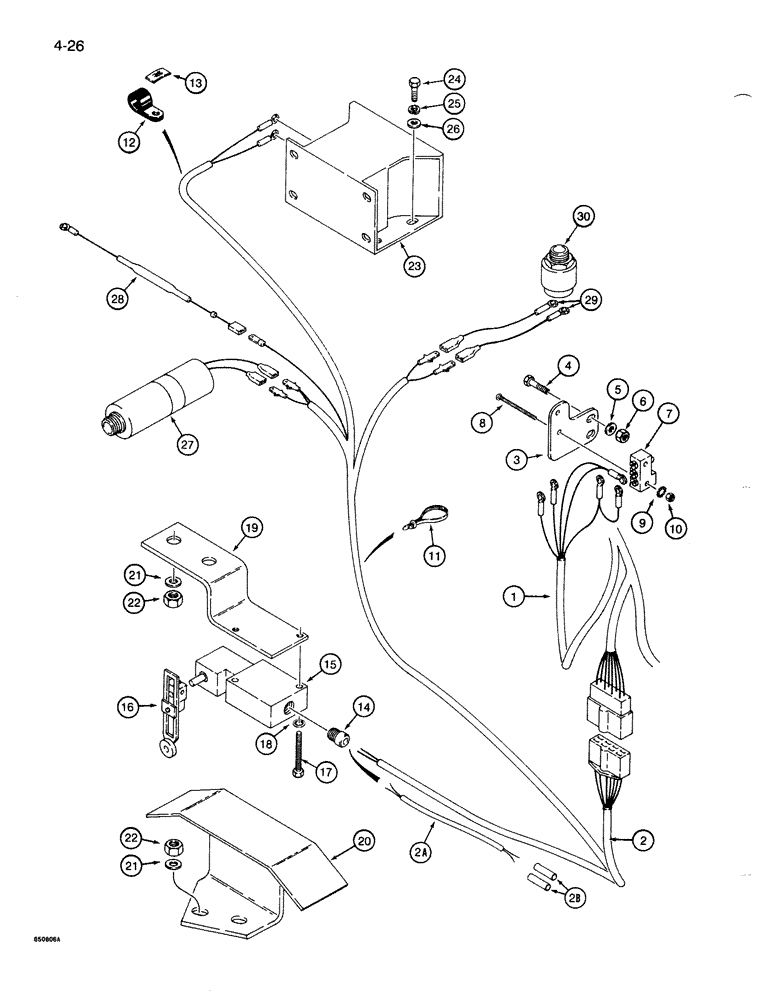

Запчасти Case 1085B (4-026) - FAST CROWD AND BACKUP ALARM WIRING HARNESS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - cab wiring, see Figure 4-22 for correct harness

1шт.

2

S515406

HARNESS

- fast crowd and backup alarm

1шт.

2a

S243327

ELECTRICAL WIRE

WIRE - jumper, 36 inch, used on 1086B models with a 60 inch cab riser

1шт.

2b

223-250

ROD, CONNECTING

CONNECTOR - crimp type, 14-16 wire size

2шт.

3

S240077

PLATE

- switch mounting

1шт.

4

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

2шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

6

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

7

L54683

SWITCH

- limit, backup alarm

1шт.

8

173-71

SCREW,Sl Rnd Hd, #6 - 32 x 2"

- machine, round head slotted, No. 6 NC x 2 inch

2шт.

9

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

2шт.

10

225-14106

NUT,#6-32

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

214-1202

CLAMP

- harness, 5/16 inch

6шт.

13

S48576

NUT

- speed type, used with 214-1202 clamp

6шт.

14

T29397

CONNECTOR, ELEC

CONNECTOR - harness, at switch

1шт.

15

S120338

SWITCH

- house angle

1шт.

16

S120339

LEVER

- roller, adjustable

1шт.

17

463-11028

SCREW,Hex Hd, #10-24 x 1 3/4"

- machine, hex head, No. 10 NC x 1-3/4 inch

2шт.

18

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

19

S242535

BRACKET

- mounting, house angle switch

1шт.

20

S242481

BRACKET

- roller, house angle switch

1шт.

21

495-21038

WASHER,5/16"

4шт.

22

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

23

D121972

ALARM

- backup

1шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

27

S239838

CYLINDER

VALVE - solenoid, fast crowd

1шт.

28

S238309

DIODE

ASSEMBLY - with wire, solenoid valve

1шт.

29

S242336

CABLE

WIRE - harness to pressure switch

2шт.

30

S241963

SWITCH

SENDER - auxiliary steering pressure buzzer

1шт.
