Запчасти Case 1085B (4-020) - OUTRIGGER ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

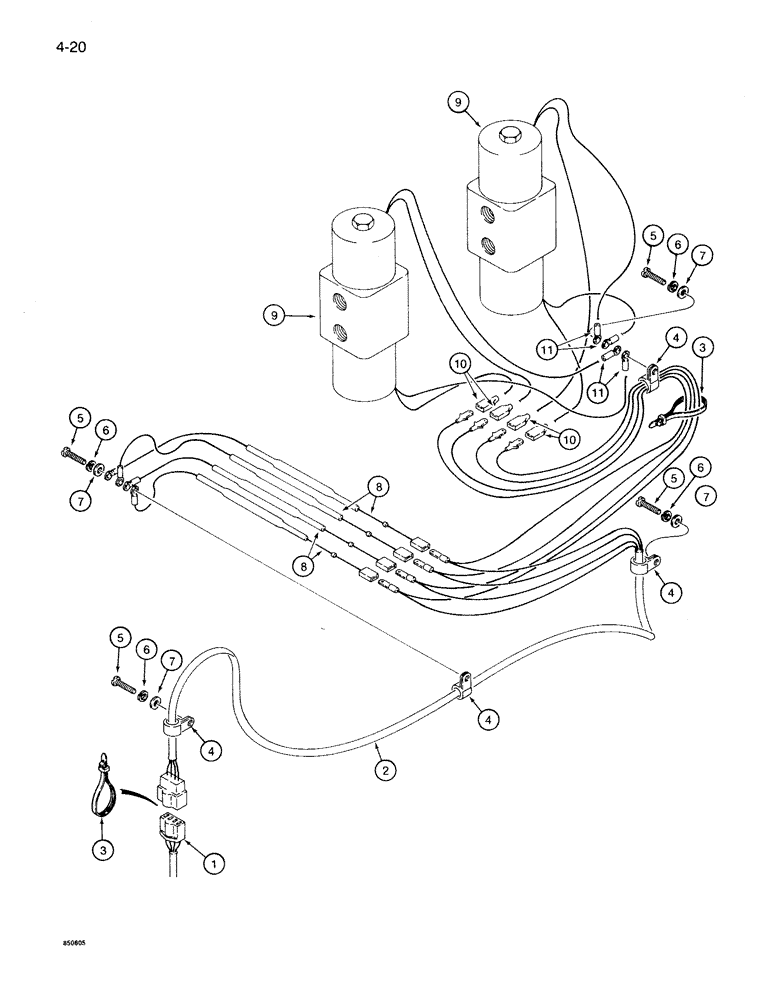

Схема запчастей Case 1085B - (4-020) - OUTRIGGER ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

S618838

HARNESS

- lower main frame, see Fig. 4-018 for related parts

1шт.

2

S515329

HARNESS

- electrical, outrigger

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- harness

4шт.

5

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

4шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

7

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

8

S238309

DIODE

ASSEMBLY - with wire, solenoid valve

4шт.

9

S237187

SOLENOID

VALVE ASSEMBLY - air solenoid, parts list Fig. 4-044

2шт.

10

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve, Serial Range: wires-harness

4шт.

11

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - eyelet, 14-16 wire x No. 10 screw size, solenoid control valve wires to ground

4шт.

Выбрано товаров: 11
