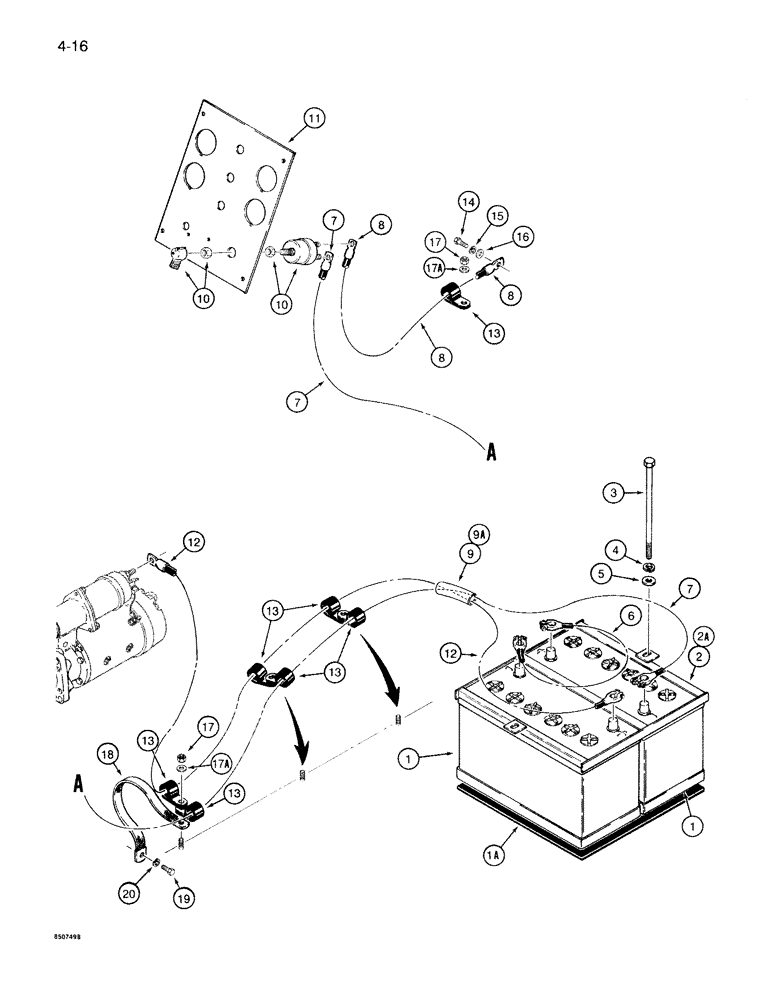

Запчасти Case 1085B (4-016) - BATTERIES, BATTERY MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt

2шт.

1a

S514581

PAD

- rubber, battery

1шт.

2

S515063

BRACKET

RETAINER - battery, no longer used, order Ref. 2A

1шт.

2a

S516968

BRACKET

RETAINER - battery

1шт.

3

113-2446

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

S95569

WASHER

- flat, special, hardened

2шт.

6

S237885

NEG BATTERY CABLE

CABLE - battery to battery, 16 inch (407 mm) long

1шт.

7

S242287

CABLE ASSY.

CABLE - battery to switch, negative, 114 inch (2896 mm) long

1шт.

8

S242637

CABLE

- switch to ground, negative, 60 inch (1524 mm) long

1шт.

9

S120536

GUARD - cable protector, 6 inch (153 mm) long, cut from S118481 bulk roll, see below, no longer used, replace with Ref. 9A

2шт.

9a

S119802

GUARD - cable protector, 11 inch (280 mm) long, cut from S118481 bulk roll, see below

1шт.

10

D75385

IGNITION SWITCH

SWITCH - battery disconnect

1шт.

11

S516940

PANEL

- engine instrument, see Fig. 4-034 for gauges and related parts

1шт.

12

S241852

CABLE

- battery to starter solenoid, positive, 66 inch (1676 mm) long

1шт.

13

NLS

NO LONGER SERVICED

-, Serial Range: cable-frame

7шт.

14

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

1шт.

15

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

17a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

18

S229640

CABLE

STRAP - ground, frame to engine mount

1шт.

19

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

1шт.

20

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

S118481

PACKAGE

GUARD - edge, bulk roll, 1 inch (25 mm) ID x 60 inch (1524 mm) long

1шт.
