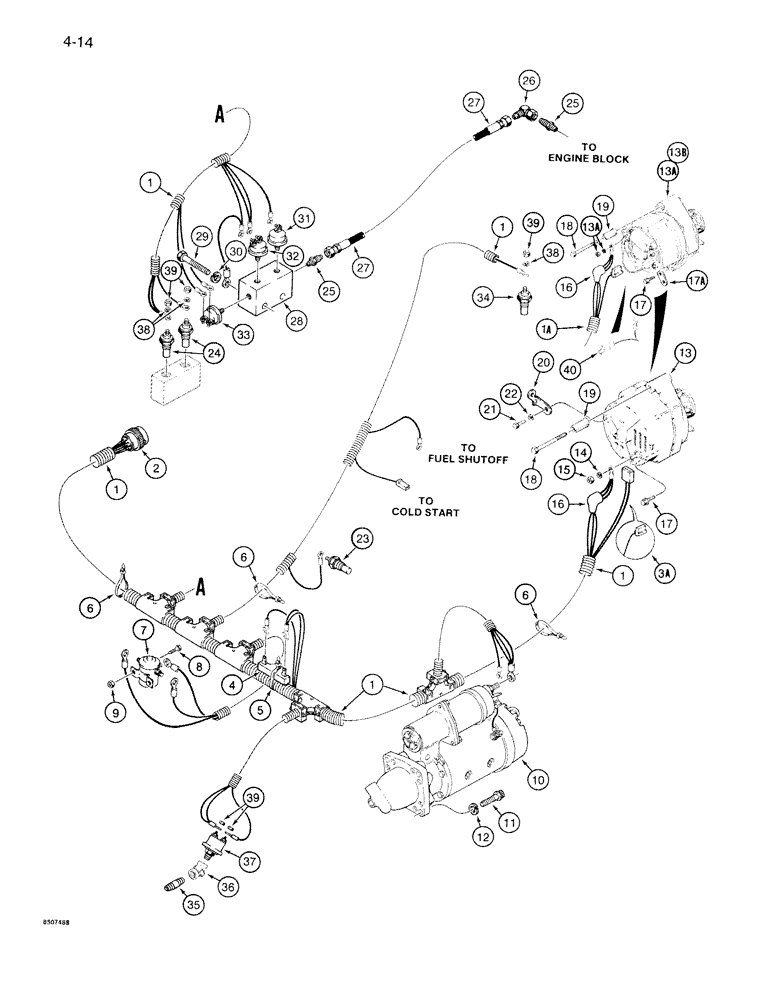

Запчасти Case 1085B (4-014) - ENGINE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

l

S618765

HARNESS

HARNESS - engine, used with Delco-Remy alternator

1шт.

1a

S619131

HARNESS

HARNESS - engine, used with Bosch alternator, Includes: Ref. 2 - 3

1шт.

2

S99514

COUPLING

CONNECTOR - harness, female, with movable ring on body, contact sockets not included, used with harness Ref. 1 and 1A

1шт.

3

S99513

CONTACT

CONTACT - connector, socket, not shown, used with harness Refs. 1 and 1A

11шт.

3a

223-155

ELEC CONNECTOR,Female, 1 Pin

BODY - connector, single contact, used with harness Ref. 1 if Bosch alternator is used to replace Delco-Remy

1шт.

4

F22316

RESISTOR,75 Ohms 0.2 Amps DC

RESISTOR - alternator

1шт.

5

R38237

STRAP

STRAP - tie, Serial Range: resistor-harness

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

7

S240588

SOLENOID SWITCH

RELAY - starter

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT - hex, 1/4 NC x 3/4 inch

2шт.

9

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

10

A169694

STARTING MOTOR

STARTER - engine, parts list Fig. 4-002 - 4-006

1шт.

10

AR169694

REMAN-STARTER

Remanufactured, STARTER

1шт.

10

AC169694

CORE-STARTER

Return Number

1шт.

11

866-10040

12 PT SCREW,Flg, M10 x 40mm, Cl 12.9

BOLT - Ferry head, 10 - 1.5 x 40mm, class 12.9

3шт.

12

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

3шт.

13

L112091

ALTERNATOR

ALTERNATOR - engine, Delco-Remy, if used, parts list Fig. 4-008

1шт.

13a

A186124

ALTERNATOR

ALTERNATOR - engine, Bosch, if used, parts list Fig. 4-010

1шт.

13b

A187916

ALTERNATOR,24V, 45A

ALTERNATOR - engine, Bosch, if used, parts list Fig. 4-012

1шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

15

825-1406

NUT,M6, Cl 8

NUT, M6, Cl 8

1шт.

16

S64612

BOOT

BOOT - rubber, at alternator

1шт.

17

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

BOLT - special, alternator mounting

1шт.

17a

J903089

SUPPORT

BRACKET - alternator mounting, used with Bosch alternator only

1шт.

18

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

19

J902469

SPACER

SPACER - alternator mounting

1шт.

20

S120535

BRACKET

SPARE PART BRACKET - alternator mounting, used with Delco-Remy alternator only

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

BOLT - hex, 8 x 20 mm, used with Delco-Remy alternator only

1шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Used with Delco-Remy alternator only M8

1шт.

23

S118976

TEMPERATURE SENDER

SENDER - engine temperature

1шт.

24

A141558

SWITCH

SWITCH - engine temperature

2шт.

25

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

26

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

ELBOW - 90 degree, 9/16-18 inch flare x swivel flare

1шт.

27

S77121

HOSE

HOSE - 20 inch (508 mm) long, Serial Range: engine-manifold

1шт.

28

S241719

MANIFOLD

MANIFOLD - engine oil

1шт.

29

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

BOLT - hex, 12 - 1.75 x 75 mm

2шт.

30

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

31

S242648

SWITCH

SENDER - engine oil pressure

1шт.

32

L112707

SWITCH

SENDER - engine oil pressure

1шт.

33

S63884

SWITCH

SENDER - oil pressure, hourmeter

1шт.

34

A154283

SWITCH

SWITCH - engine temperature

1шт.

35

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - straight, 1/8 PT x 1-1/2 inch long

1шт.

36

217-1120

ELBOW,45 Degree, 1/8"-27 Female

ELBOW - pipe, 45 degree, 1/8 inch female

1шт.

37

S213684

SWITCH

SWITCH - torque converter pressure

1шт.

38

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

39

129-37

NUT,#10-32

NUT, #10-32

5шт.

40

1987378C1

PACKAGE

KIT - alternator adapter, includes (1) A187990 terminal, (1) 825-1408 nut, (1) 892-11008 washer, (1) 825-1405 nut and (1) 892-11005 washer, used when A187916 replacement alternator (item 13B) is used

1шт.
