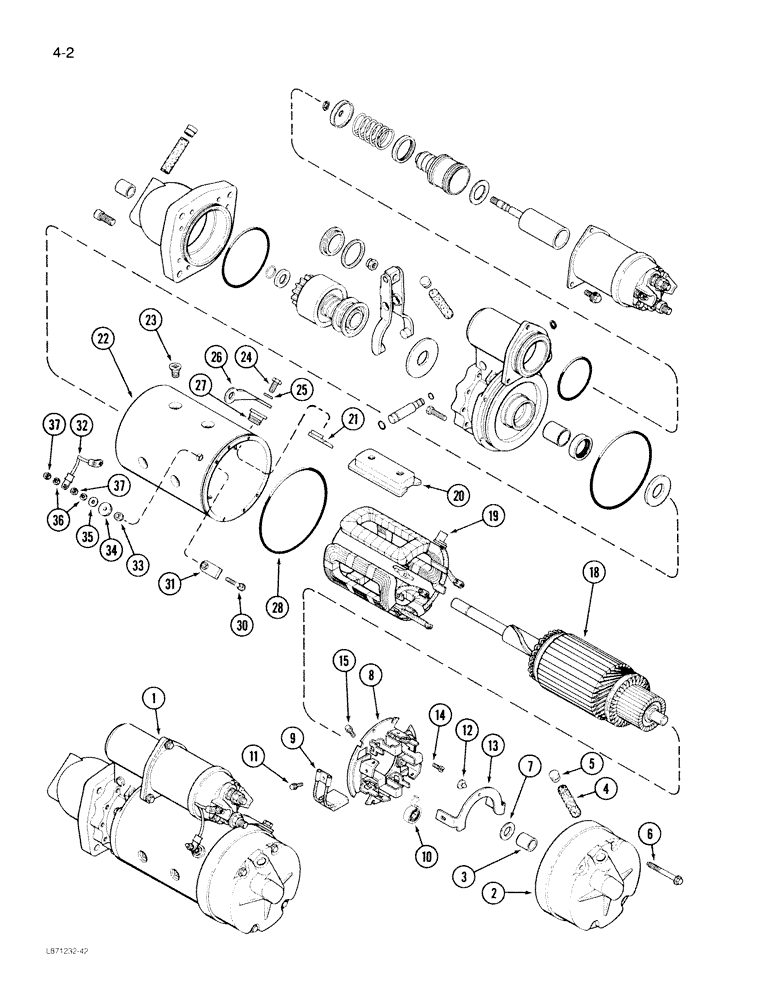

Запчасти Case 1085B (4-002) - A169694 STARTER (04) - ELECTRICAL SYSTEMS

1

A169694

STARTING MOTOR

STARTER ASSEMBLY - new (Delco-Remy No. 1990499)

1шт.

1

AR169694

REMAN-STARTER

Remanufactured, STARTER

1шт.

1

AC169694

CORE-STARTER

Return Number

1шт.

2

A49497

FRAME

ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A40868

BUSHING

- frame, commutator

1шт.

4

A49567

WICK

- oil, lever housing

1шт.

5

A49573

PLUG

- oil wick, lever housing

1шт.

6

A49574

CAPTIVE WASHER SCREW,Torx, #10 - 32 x 2.28"

BOLT AND WASHER ASSEMBLY - commutator frame

4шт.

7

195-2056

WASHER,5/8" x 1" x .065"

- flat, 9/16 x 1 x 1/16 inch

1шт.

8

A49505

BRUSH SET

BRUSH ASSEMBLY - starter, Includes: Ref. 9 - 13

1шт.

9

A49504

BRUSH

- armature

4шт.

10

A49575

SPRING

- brush

4шт.

11

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

- brush attaching

4шт.

12

A49561

INSULATOR

- conductor

1шт.

13

A49577

TERMINAL STRIP

CONDUCTOR - starter

1шт.

14

177-134

SCREW,Sl Fil Hd, #10 - 32 x 7/16""

- machine, Fillister head, No. 10 NF x 7/16 inch

2шт.

15

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer

3шт.

18

A49499

ARMATURE

- starter

1шт.

19

A49503

COIL ASSY.

COIL ASSEMBLY - field

1шт.

20

A49579

PLATE

POLE SHOE - field

4шт.

21

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal

1шт.

22

NSS

NOT SOLD SEPARAT

FRAME - field (Order A169694 starter)

1шт.

23

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

- machine, flat head Phillips, 3/8 NF x 13/20 inch

8шт.

24

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

25

A42100

WASHER

- flat, field terminal

1шт.

26

A49502

CONNECTOR, ELEC

CONNECTOR - terminal, field

1шт.

27

A49500

RUBBER INSULATOR

INSULATOR - outer, terminal

1шт.

28

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- housing

1шт.

30

A49508

TERMINAL CONNECTOR

STUD - terminal

1шт.

31

A49506

ISOLATOR

INSULATOR - terminal

1шт.

32

A49507

ELECTRICAL WIRE

WIRE - lead terminal

1шт.

33

A49578

BUSHING

- terminal

1шт.

34

A49568

WASHER

- terminal insulator

1шт.

35

A49560

WASHER

- flat

1шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

37

129-667

NUT,#10-32, LH

Chamferred #10-32, LH

2шт.
