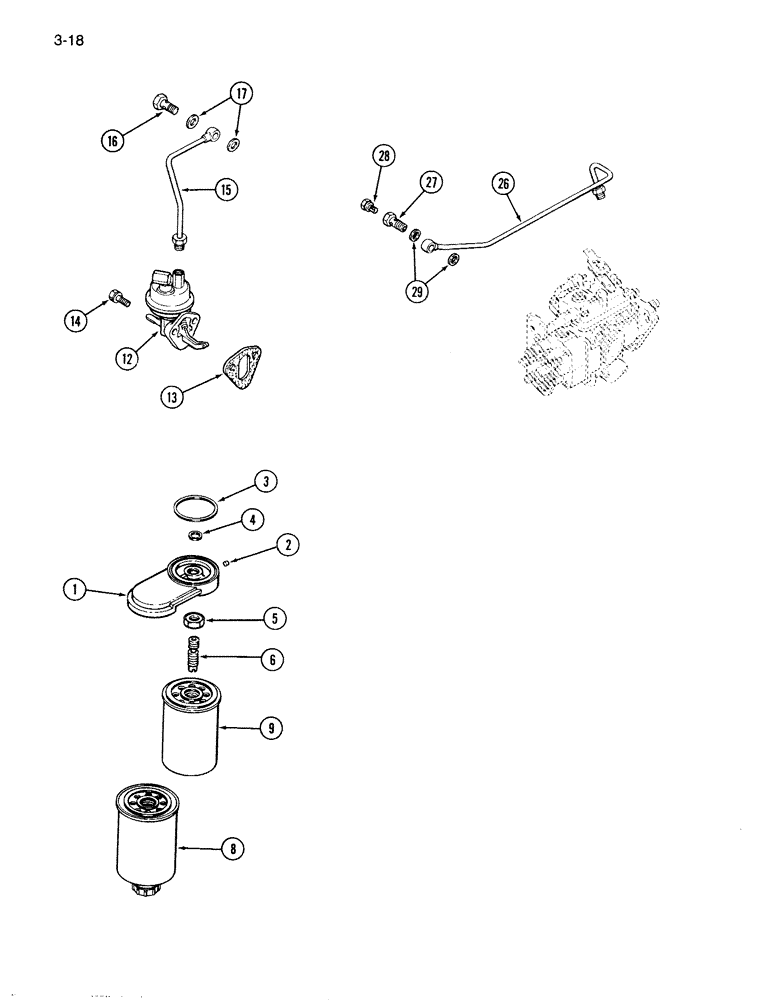

Запчасти Case 1085B (3-018) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter (Replaces J904362), Includes: Ref. 2

1шт.

2

A77432

PLUG

- expansion, 0.26 mm OD

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID (Replaces J903546)

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing(Replaces J903846), 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - filter, fuel

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J904044

GASKET

- mounting, pump

1шт.

14

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT - hex flange head, 8 mm - 1.25 x 25 mm

2шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply

1шт.

16

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

17

A77445

WASHER

- sealing, 0.5 mm ID

2шт.

26

J917564

FUEL TUBE,363.9, 85 mm L

TUBE ASSEMBLY - fuel supply

1шт.

27

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

28

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

SCREW - bleed

1шт.

29

A77445

WASHER

- sealing, 0.5 mm ID

2шт.
