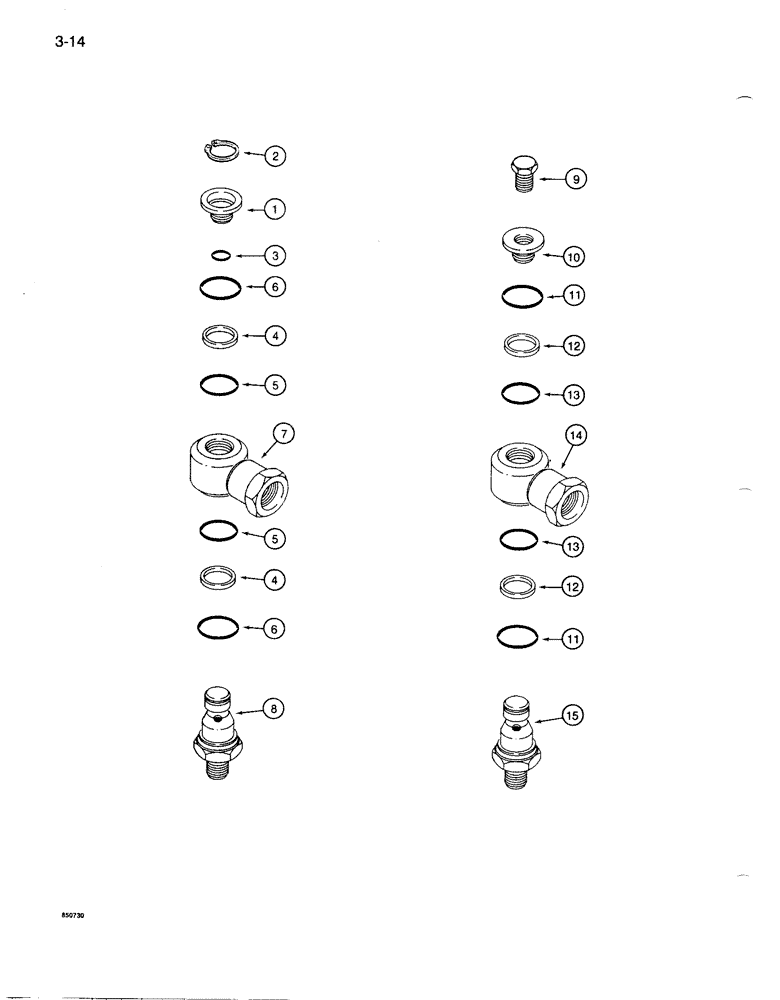

Запчасти Case 1085B (3-014) - ACCELERATOR SWIVEL (03) - FUEL SYSTEM

S205962

JOINT

SWIVEL ASSEMBLY - accelerator, uses snap ring to retain protector cap, Includes: Ref. 1 - 8

1шт.

Check swivel assembly to determine what type swivel you have before ordering repair parts.

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - protective, dirt

1шт.

2

F21293

SNAP RING,#59, Ext

Ring, Snap, , protective cap #59, Ext

1шт.

3

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

4

N8522

WASHER

RING - backup, O-ring

2шт.

5

S110300

RING

O-RING - large

2шт.

6

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Cap and body -116, 70 Duro, .737" ID x .103" Thk

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - swivel

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - swivel

1шт.

S205962

JOINT

SWIVEL ASSEMBLY - accelerator, uses bolt to retain protector cap, Includes: Ref. 9 - 15

1шт.

Check swivel assembly to determine what type swivel you have before ordering repair parts.

1шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

10

NSS

NOT SOLD SEPARAT

CAP - protective, dirt

1шт.

11

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Cap and body -116, 70 Duro, .737" ID x .103" Thk

2шт.

12

N8522

WASHER

RING - backup, small O-ring

2шт.

13

S110300

RING

O-RING - small, swivel housing

2шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - swivel

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - swivel

1шт.
