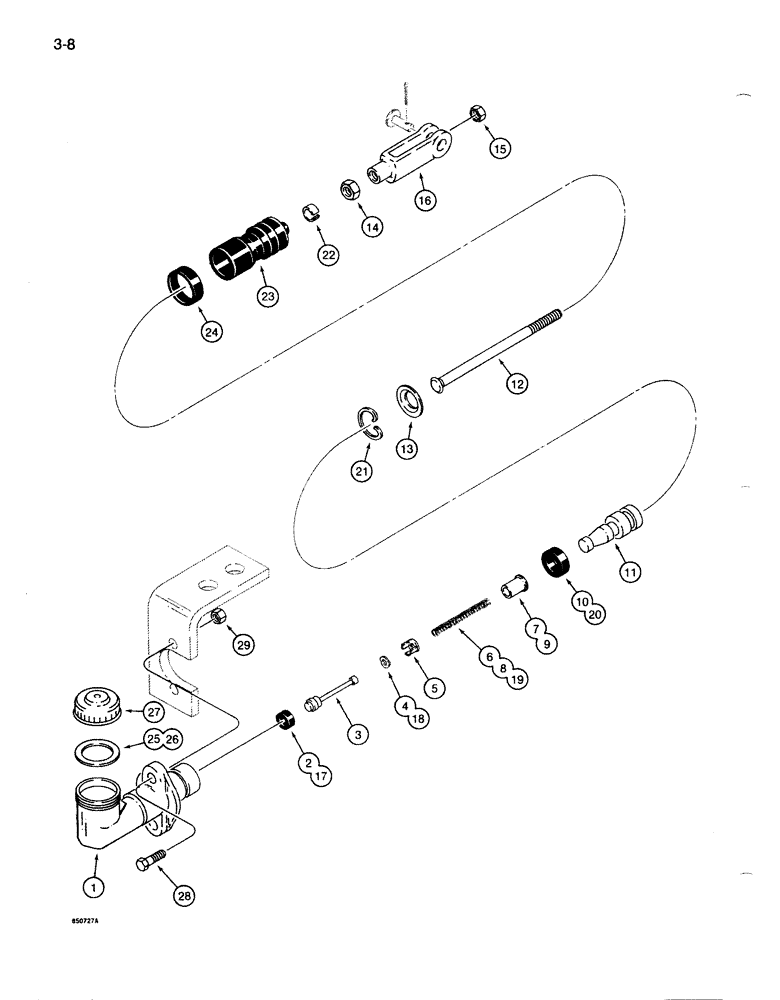

Запчасти Case 1085B (3-008) - ACCELERATOR MASTER CYLINDER (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
S402872
MASTER CYLINDER
CYLINDER ASSEMBLY - accelerator master, Includes: Ref. 1 - 27
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - master cylinder
1шт.
S62567
REPAIR KIT
KIT - service, spring and retainer, Includes: Ref. 2 - 7
1шт.
2
NSS
NOT SOLD SEPARAT
SEAL - valve stem
1шт.
3
NSS
NOT SOLD SEPARAT
STEM - valve
1шт.
4
NSS
NOT SOLD SEPARAT
WASHER - spring
1шт.
5
NSS
NOT SOLD SEPARAT
SPACER - valve spring
1шт.
6
NSS
NOT SOLD SEPARAT
SPRING - valve
1шт.
7
NSS
NOT SOLD SEPARAT
RETAINER - valve spring
1шт.
S62566
PACKAGE
KIT - service, piston, Includes: Ref. 8 - 11
1шт.
8
NSS
NOT SOLD SEPARAT
SPRING - valve
1шт.
9
NSS
NOT SOLD SEPARAT
RETAINER - valve spring
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
11
NSS
NOT SOLD SEPARAT
PISTON - cylinder
1шт.
S76593
PACKAGE,SERVICE
KIT - service, push rod, Includes: Ref. 12 - 16
1шт.
12
NSS
NOT SOLD SEPARAT
ROD - push
1шт.
13
NSS
NOT SOLD SEPARAT
WASHER - retainer
1шт.
14
NSS
NOT SOLD SEPARAT
NUT - lock, inner
1шт.
15
NSS
NOT SOLD SEPARAT
NUT - lock, outer
1шт.
16
NSS
NOT SOLD SEPARAT
CLEVIS - push rod
1шт.
S73181
REPAIR KIT
KIT - service, seal, Includes: Ref. 17 - 25
1шт.
17
NSS
NOT SOLD SEPARAT
SEAL - valve stem
1шт.
18
NSS
NOT SOLD SEPARAT
WASHER - spring
1шт.
19
NSS
NOT SOLD SEPARAT
SPRING - valve
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
21
NSS
NOT SOLD SEPARAT
RETAINER - push rod
1шт.
22
NSS
NOT SOLD SEPARAT
RETAINER - boot
1шт.
23
NSS
NOT SOLD SEPARAT
BOOT - rubber, protective
1шт.
24
NSS
NOT SOLD SEPARAT
BAND - rubber boot
1шт.
25
NSS
NOT SOLD SEPARAT
GASKET - filler cap
1шт.
S62568
PACKAGE,SERVICE
KIT - service, filler cap, Includes: Ref. 26 and 27
1шт.
26
NSS
NOT SOLD SEPARAT
GASKET - filler cap
1шт.
27
NSS
NOT SOLD SEPARAT
CAP - filler
1шт.
28
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- hex, 5/16 NC x 1-1/2 inch
2шт.
29
231-1445
NUT,5/16"-18, GB
NUT - light hex, self-locking, 5/16 inch NC
2шт.
Выбрано товаров: 35
