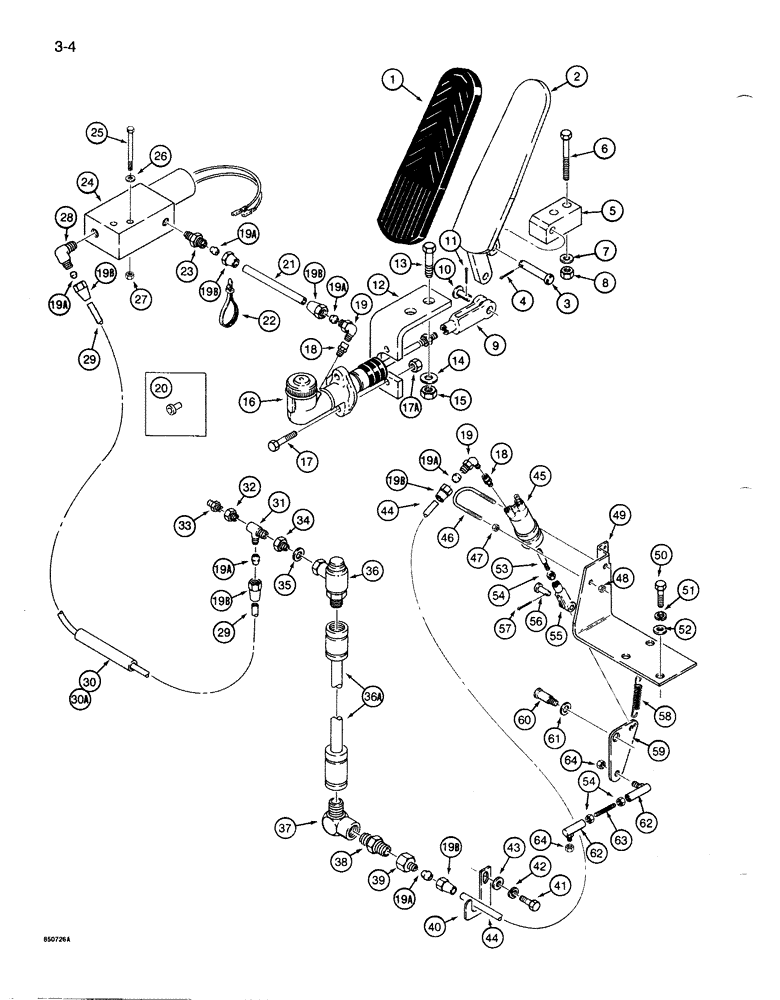

Запчасти Case 1085B (3-004) - ACCELERATOR PEDAL CONTROLS (03) - FUEL SYSTEM

1

S86996

RUBBER STRIP

COVER - rubber, pedal

1шт.

2

S515261

PEDAL

- accelerator control

1шт.

3

S10777

PIN

- clevis, accelerator pedal

1шт.

4

32-820

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

5

S118203

BLOCK

- mounting, pedal

1шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

9

S104129

YOKE

CLEVIS - accelerator pedal

1шт.

10

S10767

PIN

- clevis, accelerator pedal

1шт.

11

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

12

S235786

BRACKET

- mounting, master cylinder

1шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

15

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

16

S402872

MASTER CYLINDER

CYLINDER ASSEMBLY - accelerator master, parts list Fig. 3-008

1шт.

17

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

17a

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

2шт.

18

222-740

HYD CONNECTOR,3/8"-24 45 Degree Fl x 1/8" NPT Fem

ADAPTER - 3/8-24 45 degree flare x 1/8 female PT

2шт.

19

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 19A and 19B

2шт.

19a

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

19b

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

20

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD, used in all 3/8 inch tube compression fittings

6шт.

21

S119892

TUBE - nylon, 8 inch (203 mm) long, cut from S118405 bulk hose, see below

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

222-1842

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, includes sleeve and nut, items 19A and 19B

1шт.

24

S115892

VALVE

ASSEMBLY - accelerator lock, parts list Fig. 3-012

1шт.

25

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

26

195-101

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch

2шт.

27

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

28

222-1848

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT, includes sleeve and nut, items 19A and 19B

1шт.

29

S119474

PLASTIC-RUBBER TUBE,0.375" OD x 75" L

TUBE - nylon, 75 inch (1905 mm) long, cut from S118405 bulk hose, see below

1шт.

30

S119750

HOSE,0.38" ID x 20.00", SAE 30R2 Type 3

- Tube protection, Cut from S118400 bulk hose, See below 0.38" ID x 20.00", SAE 30R2 Type 3

1шт.

30a

R51356

HOSE - tube protection, 20 inch (508 mm) long, cut from F64508 bulk hose, see below

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Fuel 0.38" ID x 300.00"

1шт.

F64508

HOSE,0.43" ID x 100' Bulk

- fuel 0.43" ID x 100' Bulk

1шт.

31

222-2417

TEE

- compression, 3/8 tube OD br x 1/4 inch fem PT x PT, at bleeder plug, includes sleeve and nut, items 19A and 19B

1шт.

32

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

33

D46258

PLUG

- bleeder, air

1шт.

34

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

ADAPTER - straight, 7/16-20 flare x 1/4 inch female PT

1шт.

35

A12643

WASHER

- copper

1шт.

36

S205962

JOINT

SWIVEL ASSEMBLY - accelerator, parts list Fig. 3-014

1шт.

36a

S220358

TUBE,43.12" L

- inner swivel, item 12, Fig. 9-032 and 9-034

1шт.

37

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

38

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) x 1-7/16" lg. 1/4"-18 NPTF

1шт.

39

222-1810

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch female PT, includes sleeve and nut, items 19A and 19B

1шт.

40

S220965

BRACKET

- swivel tube

1шт.

41

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

42

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

44

S119477

PLASTIC-RUBBER TUBE,0.375" OD x 176" L

TUBE - nylon, 176 inch (4470 mm) long, cut from S118405 bulk hose, see below

1шт.

45

S36688

CYLINDER

ASSEMBLY - accelerator slave, parts list Fig. 3-010

1шт.

46

S100552

U-BOLT

- slave, Serial Range: cylinder-bracket

1шт.

47

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

2шт.

48

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

49

S242348

BRACKET

- slave cylinder and throttle linkage

1шт.

50

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

3шт.

51

892-11010

LOCK WASHER,M10

3шт.

52

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

3шт.

53

S68853

ROD

- connecting, slave cylinder

1шт.

54

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

3шт.

55

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable, 1/4 inch NF, slave cylinder rod

1шт.

56

S10714

CLEVIS PIN

PIN - clevis, slave cylinder rod

1шт.

57

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

58

S202938

SPRING

- throttle return

1шт.

59

S119839

PLATE

LINK - throttle control

1шт.

60

S69862

BOLT

- shoulder, special

1шт.

61

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

62

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, throttle control

2шт.

63

S110842

ROD

- threaded, throttle control

1шт.

64

131-63

LOCK NUT,1/4"-28, G8

NUT - hex, self-locking, 1/4 inch NF

2шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
