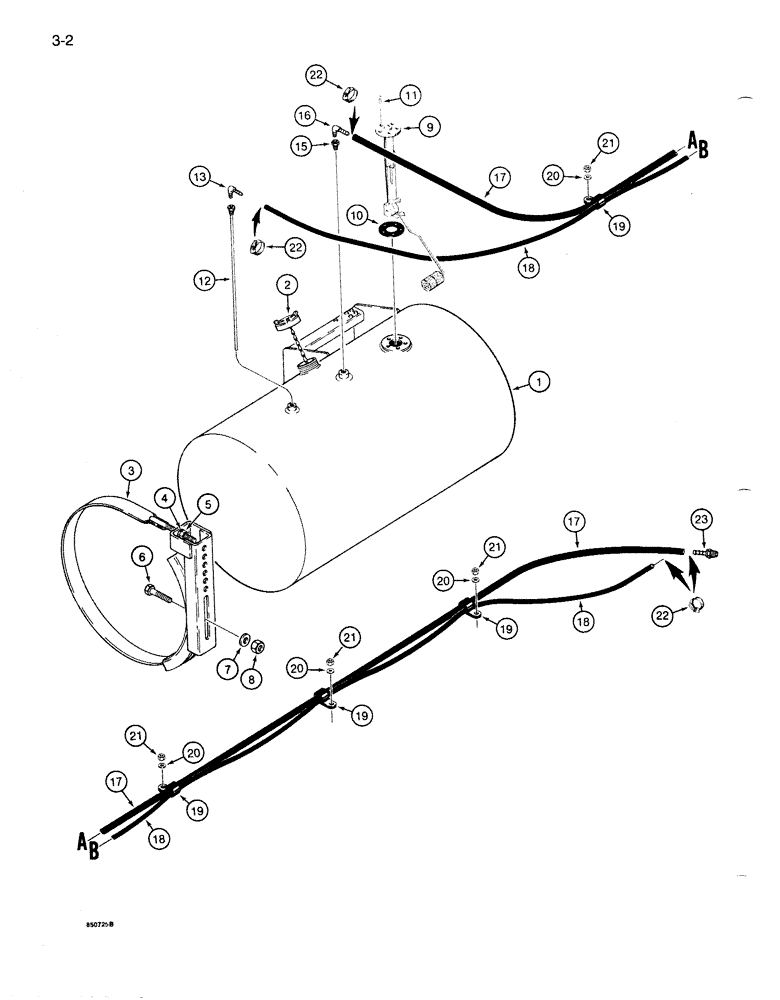

Запчасти Case 1085B (3-002) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

S511625

TANK

- fuel, Includes: Ref. 2

1шт.

2

S80526

CAP

- filler, with chain

1шт.

S207825

BRACKET

ASSEMBLY - with hardware, tank mounting, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - with welded stud

1шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

425-1110

NUT,5/8"-18, G5

1шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

7

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

S516616

SENDER UNIT

SENDER - fuel, Includes: Ref. 10

1шт.

10

S49745

GASKET

GASKET - fuel sender

1шт.

11

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine, round head slotted, No. 10 NF x 7/16 inch

5шт.

12

S241731

FUEL TUBE,19.5" L

TUBE - fuel return, in tank

1шт.

13

S120649

ELBOW

FITTING - 90 degree, fuel return

1шт.

14

RESERVED

1шт.

15

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- pipe, 3/8 male x 1/4 inch female

1шт.

16

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 5/16 barb end x 1/4 inch PT

1шт.

17

S119323

FUEL HOSE,0.31" ID x 94.00", SAE 30R2 Type 1

0.31" ID x 94.0", SAE 30R2 Type 1 - Fuel Supply to Fuel Lift Pump, Cut from Bulk Hose, See below

1шт.

18

S119324

HOSE - fuel return, 98 inch (2489 mm) long, cut from S118575 bulk hose, see below

1шт.

19

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- fuel lines

4шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

21

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

22

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

fuel hoses, from tank to engine #4, 0.25/0.62 Type F Worm

4шт.

23

220-503

ROD, CONNECTING

ADAPTER - straight, 5/16 inch barb end, push-on type

1шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

- Bulk roll 0.31" ID x 300.00", SAE 30R2 Type 1

1шт.

S118575

HOSE,0.19" ID x 300.00", SAE 30R3

- Bulk roll 0.19" ID x 300.00", SAE 30R3

1шт.
