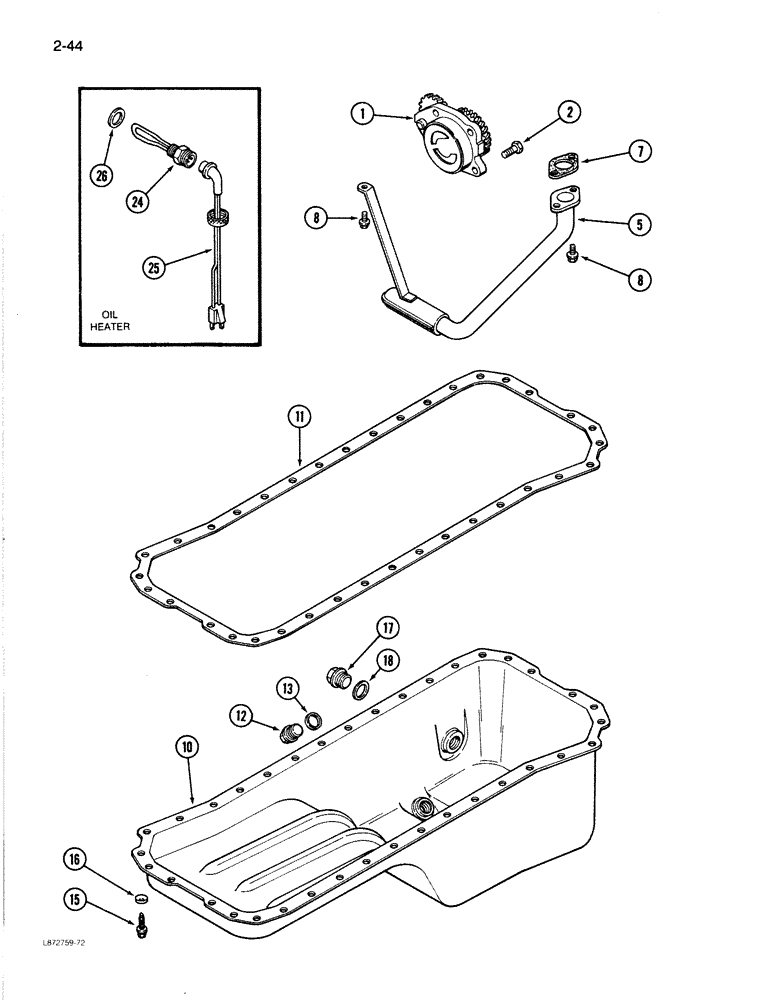

Запчасти Case 1085B (2-044) - OIL PUMP AND OIL PAN, 6T-590 ENGINE (02) - ENGINE

1

J906414

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (New)

1шт.

JR906414

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - engine oil, remanufactured (North America only)

1шт.

JC906414

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump (Use this part number to return core for credit)

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

5

J909373

TUBE

TUBE AND SCREEN - oil suction

1шт.

7

J905468

GASKET

GASKET - suction tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

3шт.

10

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine (Replaces J901288)

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A77676)

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

12

J911638

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic (Replaces J900215)

1шт.

13

J900216

PACKING RING

WASHER - sealing

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange head, 8 mm - 1.25 x 25 mm

36шт.

16

J907537

SPRING WASHER

WASHER - spring

36шт.

17

J904386

PLUG

PLUG - pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - retaining

1шт.

A77676

GASKET KIT

GASKET KIT - oil pan, Replaces A77492, Includes: Ref. numbers 7, 11, and 13

1шт.

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 24 and 25

1шт.

24

J904380

UNIT HEATER

HEATER - engine oil

1шт.

25

J905113

CABLE

CABLE - heater, engine oil

1шт.

26

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, engine oil heater

1шт.
