Запчасти Case 1085B (2-032) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

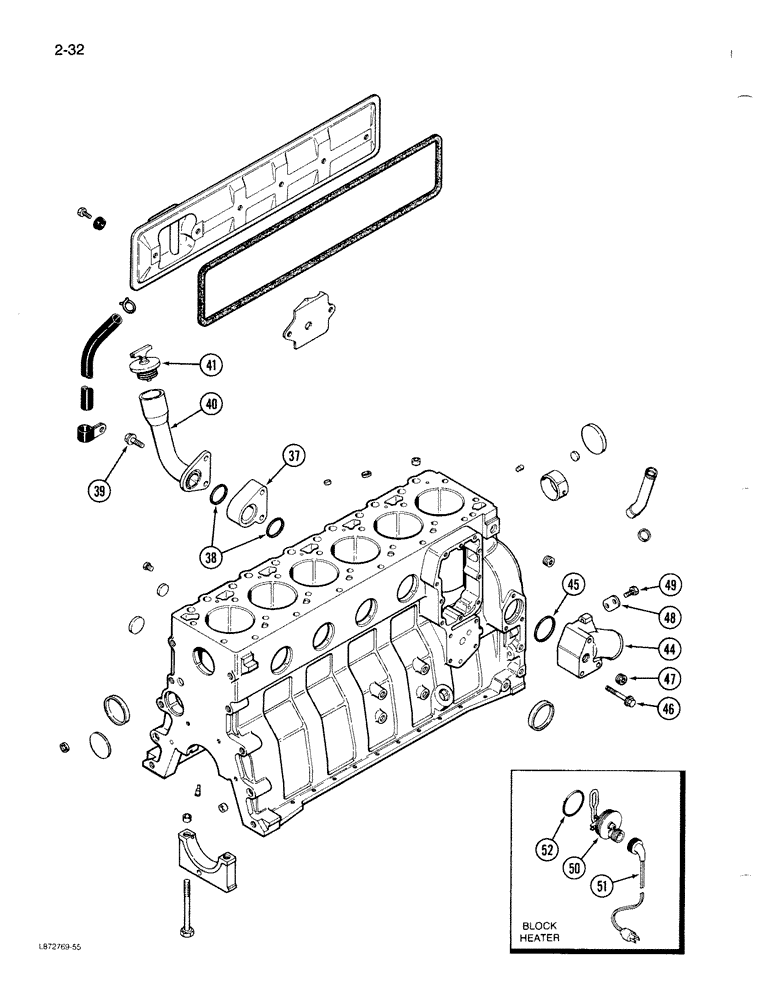

Схема запчастей Case 1085B - (2-032) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

37

J904693

SPACER

- oil filler tube connector

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

RING - sealing

2шт.

39

J905372

FLANGE BOLT,Hex, M12 x 60mm, Cl 10.9

BOLT - flanged hex, 12 mm - 1.75 x 60 mm

2шт.

40

J905440

TUBE

- fill, oil

1шт.

41

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - water inlet (Replaces J901467)

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 mm - 1.50 x 75 mm

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-18 PT

1шт.

48

J903089

SUPPORT

BRACE - alternator mounting

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 50 - 52

1шт.

50

J916127

RESISTOR

HEATER - engine block, Includes: Ref. 51

1шт.

51

J905113

CABLE

- heater, engine block

1шт.

52

J910517

O-RING

- heater sealing, engine block

1шт.

Выбрано товаров: 15
