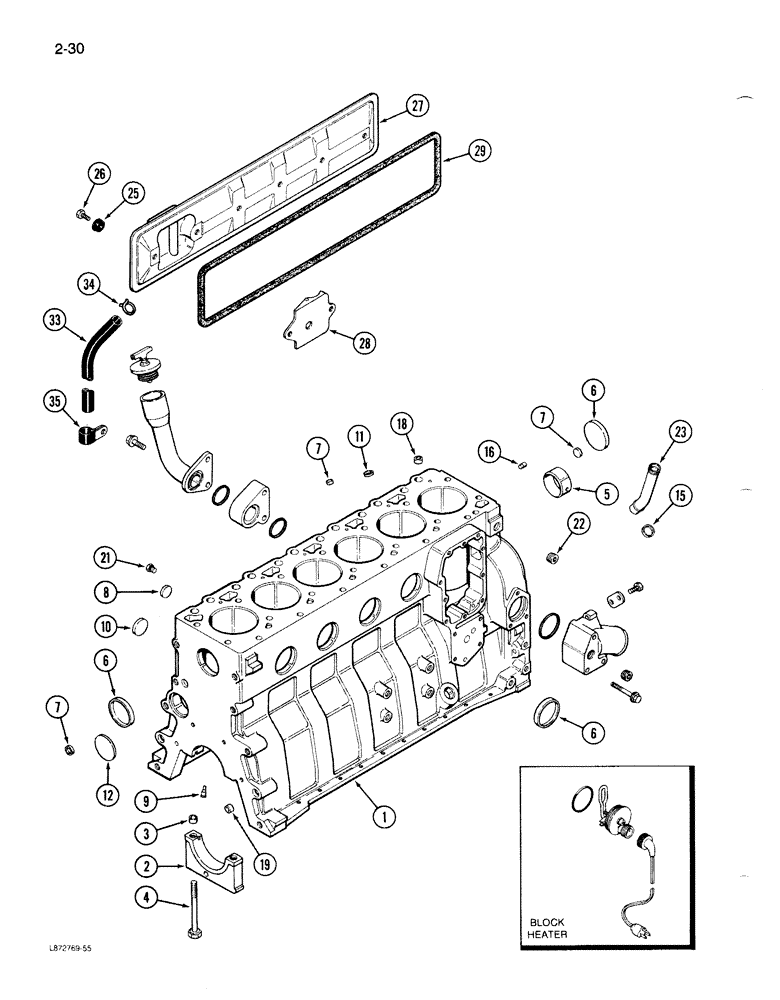

Запчасти Case 1085B (2-030) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

A174048

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

A174163

ENGINE

ENGINE ASSEMBLY - complete (Includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

A174356

BASIC ENGINE

ENGINE ASSEMBLY - basic, new (Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines

1шт.

1989096C2R

ENGINE, EXCHANGE

Engine (Exchange) Remanufactured

1шт.

1989096C2C

CORE-ENGINE

Return Part Number

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block, pistons, connecting rods, bearings, crankshaft and bearings) (Also order block and J905813 kit)

1шт.

JR910510

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Engine, Short, Remanufactured

1шт.

JC910510

CORE-ENGINE

Return Part Number, Engine, Short Block (Use This Number To Return Block Core For Credit)

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped (Order block and J905813 kit), Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-42)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

HARDWARE KIT - block, engine, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch), 60 mm OD

1шт.

15

A77439

PLUG

PLUG - expansion, 22 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 inch PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-18 PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

4шт.

27

J904672

COVER

COVER - push rod

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J904776

GASKET

GASKET - tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

35

A77531

CLIP

CLIP - retaining

1шт.
