Артикул
Название
Примечание
Количество
S618594
KIT

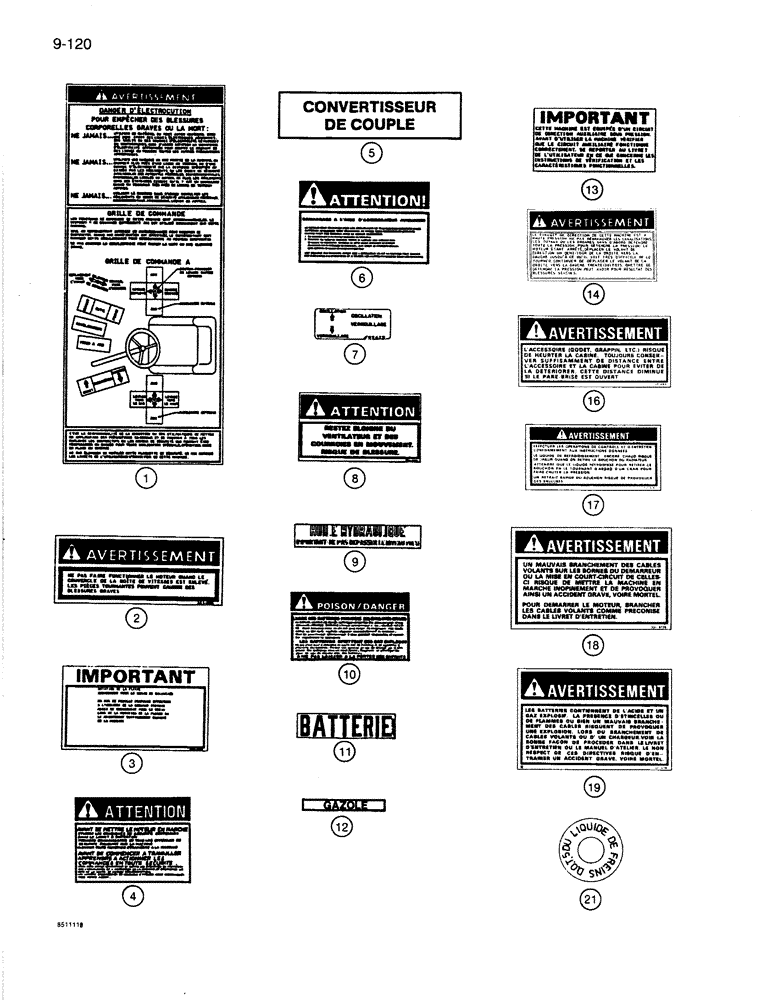

- decal, French, 1085B with Y boom, see Fig. 9-116 for additional kit components, Includes, Ref. 1 - 19
1шт.
1
S618740
DECAL
- control pattern A, standard, 1085B
1шт.
1a
S619037
DECAL
- control pattern A, standard, 1086B, not a component of decal kits, not shown
1шт.
2
321-6516
DECAL
- Warning, transmission cover removal
2шт.
3
321-5191
DECAL
- Important, crowd cylinder swing clearance
1шт.
4
321-4020
DECAL
- Warning, improper operation of machine
1шт.
5
321-5172
PRODUCT GRAPHIC
DECAL - torque converter
1шт.
6
321-5581
DECAL
- Warning, jump start, at starter, no longer used, order 321-6720 decal, Ref. 18
1шт.
7
S119629
DECAL
- oscillation lock
2шт.
8
321-4324
DECAL
- Warning, engine fan
2шт.
9
321-5152
DECAL
- hydraulic oil
1шт.
10
321-2841
DECAL
- Warning, jump start, at battery, no longer used, order 321-6719 decal, Ref. 19
1шт.
11
321-5183
DECAL
- battery
1шт.
12
321-6146
DECAL
- diesel fuel
1шт.
13
S241308
DECAL
- Important, auxiliary steering
1шт.
14
321-6645
DECAL
- Warning, auxiliary steering
2шт.
15
RESERVED
1шт.
16
321-6702
DECAL
- Warning, attachment to cab clearance
1шт.
17
321-6701
DECAL
- Warning, cooling system service
2шт.
18
321-6720
DECAL
- Warning, jump start, at starter
1шт.
19
321-6719
DECAL
- Warning, jump start, at battery
1шт.
20
321-5394
DECAL - battery master disconnect, not shown
1шт.
21
S120658
DECAL
- Use D.O.T. 5 Brake Fluid Only, on accelerator master cylinder filler cap
1шт.
Выбрано товаров: 23
