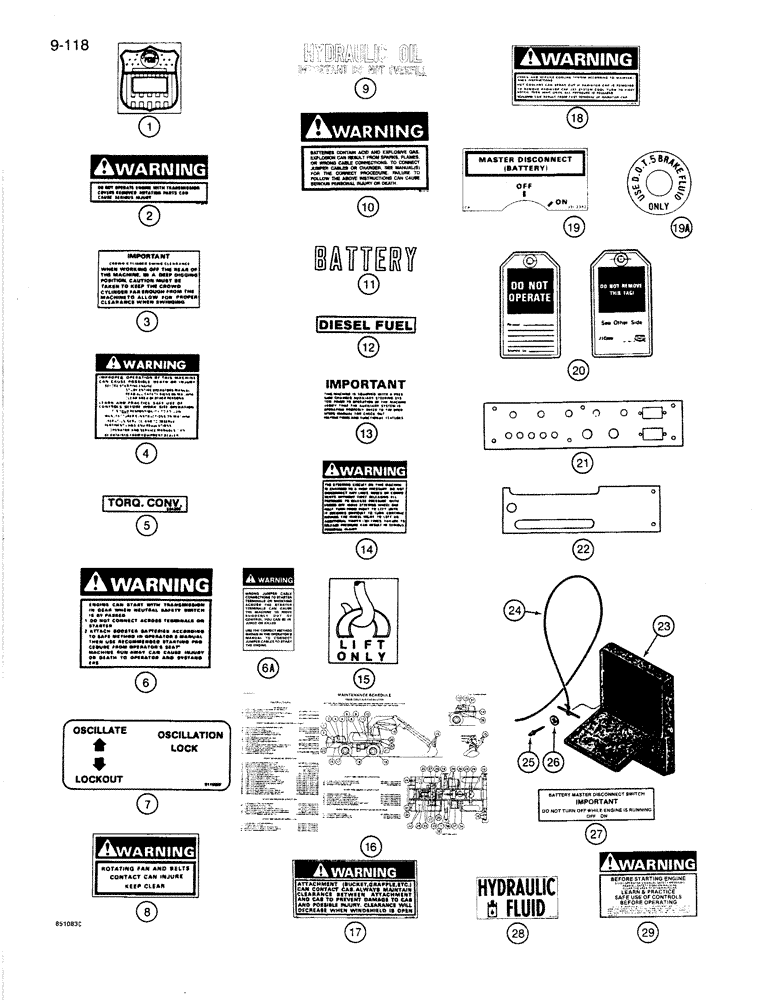

Запчасти Case 1085B (9-118) - DECALS, ENGLISH (09) - CHASSIS

S618593

KIT

- decal, English, 1085B with Y boom, see Fig. 9-116 and 9-122 for additional kit components, Includes, Ref. 1 - 18

1шт.

1

S242429

DECAL

- PCSA, no longer used

1шт.

2

321-6276

DECAL

- Warning, transmission cover removal

2шт.

3

S108833

DECAL

- Important, crowd cylinder swing clearance

1шт.

4

S231311

DECAL

- Warning, improper operation of machine, no longer available, order 321-3705 decal, Ref. 29

1шт.

5

S94265

DECAL

- torque converter

1шт.

6

321-3709

DECAL

- Warning, jump start, at starter, no longer used, order 321-6718, Ref. 6A

1шт.

6a

321-6718

DECAL

- Warning, wrong jumper cable, Serial Range: connections-starter

1шт.

7

S119627

DECAL

- oscillation lock

2шт.

8

321-3596

DECAL

- Warning, engine fan

2шт.

9

S80209

DECAL

- hydraulic oil, no longer available, order 321-6376 decal, Ref. 28

1шт.

10

321-6714

DECAL

- Warning, batteries contain acid and explosive gas, replaces 321-2996

1шт.

11

S29611

DECAL

- battery

1шт.

12

321-2601

DECAL

- diesel fuel

1шт.

13

S240964

DECAL

- important, auxiliary steering

1шт.

14

321-6636

DECAL

- Warning, auxiliary steering

2шт.

15

321-3587

DECAL

- Lift Only, component of S618594 French decal kits, also

4шт.

16

S618956

DECAL

- maintenance schedule

1шт.

17

321-6694

DECAL

- Warning, attachment to cab clearance

1шт.

18

321-6672

DECAL

- Warning, cooling system service

2шт.

19

321-2392

DECAL

- battery master disconnect, no longer available, order R55652 decal, Ref. 27

1шт.

19a

S120651

DECAL

- Use D.O.T. 5 Brake Fluid Only, on accelerator master cylinder filler cap

1шт.

20

321-4614

TAG

- do not operate

1шт.

21

321-6458

DECAL

- instrument panel, left-hand console

1шт.

22

S616761

PANEL, INSTRUMENTS

DECAL - instrument panel, right-hand console

1шт.

23

S511692

BOX

- operators manual

1шт.

24

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

25

151-532

RIVET,Pop, 3/16" x .700"

- pop, 3/16 x 21/32 inch

3шт.

26

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

27

R55652

DECAL

- battery master disconnect switch

1шт.

28

321-6376

DECAL

- hydraulic fluid

1шт.

29

321-3705

DECAL

- Warning, before starting engine

1шт.
