Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

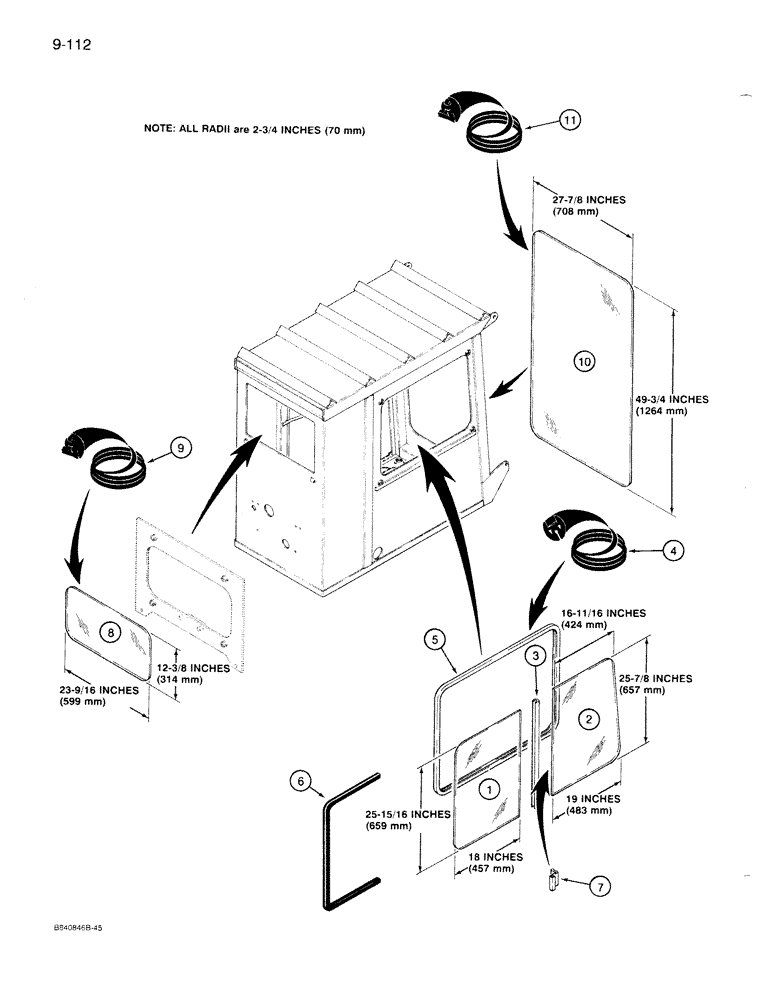

GLASS - cab, door and right side, stationary, see Figure 9-112 for dimensions
2шт.
All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).
1шт.
2
REF
INSTRUCTION
GLASS - cab, door and right side, moveable, see Figure 9-112 for dimensions
2шт.
All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).
1шт.
3
REF
INSTRUCTION
SEAL - between stationary and moveable glass, 26 inch (660 mm) long, cut from S118385 bulk roll, see below
2шт.
4
REF
INSTRUCTION
MOULDING - glass, door and cab side, 120 inch (3048 mm) long, cut from S118634 bulk roll
2шт.
5
REF
INSTRUCTION
SEAL - glass channel, 120 inch (3048 mm) long, cut from S118387 bulk roll
2шт.
6
REF
INSTRUCTION
SEAL - rubber, glass spacer, 60 inch (1524 mm) long, cut from S118386 bulk roll
2шт.
7
S118207
HANDLE
- pull, side window
2шт.
8
REF
INSTRUCTION
GLASS - cab, rear window, see page 9-112 for dimensions
1шт.
All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).
1шт.
9
REF
INSTRUCTION
MOULDING - rear window glass, 68.5 inch (1740 mm) long, cut from S118384 bulk roll
1шт.
10
REF
INSTRUCTION
GLASS - windshield, see page 9-112 for dimensions
1шт.
All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).
1шт.
11
REF
INSTRUCTION
MOULDING - windshield glass, 154 inch (3912 mm) long, cut from S118384 bulk roll
1шт.
S118384
SEAL
MOULDING - glass, bulk roll foot 50 foot (15.24 m) long
1шт.
S118385
SEAL
- glass, bulk roll, 6 foot (1.83 m) long
1шт.
S118386
SEAL
SEAL - glass spacer, bulk roll 50 foot (15.24 m) long
1шт.
S118387
SEAL
- glass, bulk roll, 11 foot (3.35 m) long
1шт.
S118634
SEAL
MOULDING - glass, 50 foot (15.24 m) bulk roll
1шт.
Выбрано товаров: 20
