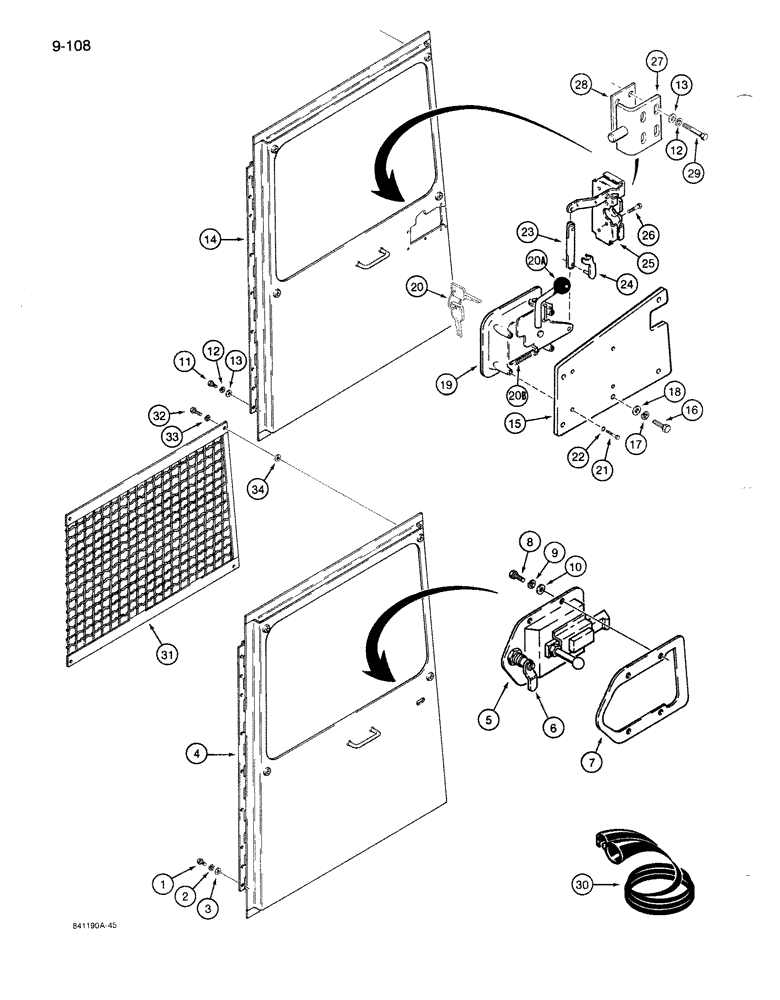

Запчасти Case 1085B (9-108) - LOGGER CAB (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
S956809
CAB
ASSEMBLY - logger, before PIN 6293936, includes parts listed on Fig. 9-106 and 9-108, door, door seal and window guard, Includes, Ref. 1 - 10
1шт.
S956959
CAB
ASSEMBLY - logger, PIN 6293936 and after, includes parts listed on Fig. 9-106 and 9-108, door, door seal and window guard, Includes, Ref. 1 - 10
1шт.
1
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
Door and latch parts used with S956809 cab Hex, 3/8"-16 x 5/8", G5, Full Thd
9шт.
2
492-11038
LOCK WASHER,3/8"
door and door latch parts used with S956809 cab 3/8"
9шт.
3
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16"), Door and latch parts used with S956809 cab 3/8", SAE
9шт.
4
S618300
DOOR
- cab, and latch parts used with S956809
1шт.
5
S516513
LOCK ASSY
LATCH - door closure and latch parts used with S956809 cab
1шт.
6
N60375
LOCK ASSY
LOCK - door, includes keys and latch parts used with S956809 cab
1шт.
7
S239956
GASKET
SEAL - latch to cab, door parts used with S956809 cab
1шт.
8
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
- hex, 1/4 NC x 1/2 inch, door and latch parts used with S956809 cab
4шт.
9
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Door and latch parts used with S956809 cab 1/4"
4шт.
10
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16"), Door and latch parts used with S956809 cab 1/4", SAE
4шт.
11
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
Door and latch parts used with S956959 cab Hex, 3/8"-16 x 5/8", G5, Full Thd
9шт.
12
492-11038
LOCK WASHER,3/8"
door and latch parts used with S956959 cab 3/8"
13шт.
13
196-5
WASHER,13/32" x 1 1/16" x .095", HDN
- flat, 13/32 x 1-1/16 x 1/8 inch, hardened, door and latch parts used with S956959 cab
13шт.
14
S619079
DOOR
- cab, and latch parts used with S956959
1шт.
15
S517147
PLATE
- mounting, latch to door, parts used with S956959 cab
1шт.
16
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
- hex, 1/4 NC x 1/2 inch, door and latch parts used with S956959 cab
5шт.
17
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Door and latch parts used with S956959 cab 1/4"
9шт.
18
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16"), Door and latch parts used with S956959 cab 1/4", SAE
5шт.
19
S619075
LATCH
HANDLE AND LOCK ASSEMBLY - door closure, and latch parts used with S956959 cab, Includes, Ref. 20 - 20B
1шт.
20
D88772
KEY
- door lock, set of two, and latch parts used with S956959 cab
1шт.
20a
70213
KNOB
- handle, door and latch parts used with S956959 cab
1шт.
20b
N14815
SPRING
- handle return, door and latch parts used with S956959 cab
1шт.
21
463-11012
SCREW,Hex Hd, #10-24 x 3/4"
- machine, hex, No. 10 NC x 3/4 inch, door and latch parts used with S956959 cab
4шт.
22
193-99
LOCK WASHER,Int Tooth, #10
WASHER, LOCK, , Door and latch parts used with S956959 cab Int Tooth, #10
4шт.
23
S517137
LINK
- connecting, handle to latch and door parts used with S956959 cab
1шт.
24
S242927
PIN
- retainer, connecting link, door and latch parts used with S956959 cab
2шт.
25
S517136
LATCH ASSY.
LATCH - door closure, parts used with S956959 cab
1шт.
26
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4 NC x 1 inch, door and latch parts used with S956959 cab
4шт.
27
S242940
ANGLE
STRIKER - door latch parts used with S956959 cab
1шт.
28
S242947
SHIM,.059" Thk
Latch striker, door and latch parts used with S956959 cab .059" Thk
1шт.
29
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch, door and latch parts used with S956959 cab
4шт.
30
S120341
SEAL
- cab door to cab, 153 inch (3886 mm) long, guard and seal used with all cabs
1шт.
31
S515176
GUARD
- side window, in door , guard and seal used with all cabs, Includes, Ref. 32 - 34
1шт.
32
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch, guard and seal used with all cabs
8шт.
33
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Guard and seal used with all cabs 1/2"
8шт.
34
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64"), Used as a spacer, guard and seal used with all cabs 1/2", SAE
1шт.
Выбрано товаров: 38
