Артикул
Название
Примечание
Количество
S956809
CAB

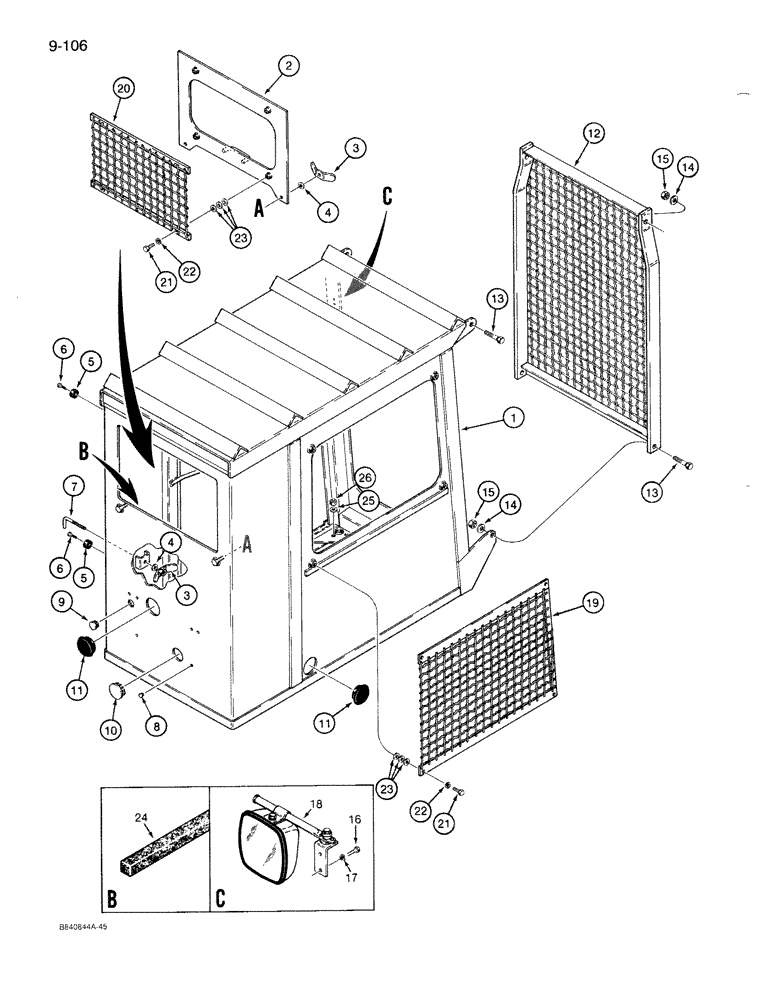

ASSEMBLY - logger, complete, before PIN 6293936, includes parts listed on Fig. 9-106 and 9-108, cab and window guards, Includes, Ref. 1 - 17
1шт.
S956959
CAB
ASSEMBLY - logger, complete, PIN 6293936 and after, includes parts listed on Fig. 9-106 and 9-108, cab and window guards, Includes, Ref. 1 - 17
1шт.
1
NSS
NOT SOLD SEPARAT
CAB - logger, and window guards
1шт.
2
S508190
FRAME
- cab rear window guards
1шт.
3
S221281
HANDLE
- retaining, rear window and door, cab, guards
3шт.
4
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64"), Cab and window guards 1/2", SAE
3шт.
5
S63621
BUMPER
- rubber, door to cab and window guards
2шт.
6
173-116
SCREW,Sl Rnd Hd, #12 - 24 x 1/2"
- machine, round head slotted, No. 12 NC x 1/2 inch, cab and window guards
2шт.
7
S94142
LATCH
- door retaining, open, cab and window guards
1шт.
8
205-15
HOLE PLUG BUTTON,3/8"
PLUG - button, 3/8 inch, cab, rear, and window guards
6шт.
9
205-61
HOLE PLUG BUTTON,1 1/2"
PLUG - button, 1-1/2 inch, cab, rear, and window guards
1шт.
10
205-72
HOLE PLUG BUTTON,3"
PLUG - button, 3 inch, cab, rear, and window guards
1шт.
11
S117638
PLUG
- cab rear and right side, 3 3/4 inch hole, and window guards
2шт.
12
S618301
GUARD ASSY.
GUARD - windshield, cab and window guards
1шт.
13
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
Cab and window guards Hex, 1"-8 x 3", G5
4шт.
14
195-553
WASHER,1", SAE
- flat, 1-1/16 x 2 x 1/8 inch, cab and window guards
4шт.
15
131-20
LOCK NUT,1"-8, GB
NUT - light hex, self-locking, 1 inch NC, cab and window guards
4шт.
16
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
- hex, 1/4 NC x 5/8 inch, mirror to cab, included with S956809 and S956959 cab assemblies, and window guards
2шт.
17
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Included with S956809 and S956959 cab assemblies, and window guards 1/4"
2шт.
18
S515469
MIRROR
- cab, rear view, related parts not included with cab assembly
1шт.
19
S515179
GUARD
- side window, in cab, related parts not included with cab assembly
1шт.
20
S221288
GUARD ASSY.
GUARD - rear window, related parts not included with cab assembly
1шт.
21
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch, related parts not included with cab assembly
8шт.
22
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Related parts not included with cab assembly 1/2"
8шт.
23
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64"), Used as a spacer, related parts not included with cab assembly 1/2", SAE
1шт.
24
S120341
SEAL
- rear window frame to cab, 98 inch (2489 mm) long, cut from S120316 bulk seal, see below, related parts not included with cab assembly
1шт.
25
496-21053
WASHER,17/32" x 1 1/16" x .134"
- flat, 17/32 x 1-1/16 x 1/8 inch, cab mounting, see Fig. 9-062, Ref. 14, for cab mounting plate, related parts not included with cab assembly
10шт.
26
SPECIAL NUT,1/2"-13
NUT - heavy hex, self-locking, 1/2 inch NC, cab mounting, see Fig. 9-062, Ref 14, for cab mounting plate, related parts not included with cab assembly
10шт.
S120316
SEAL
- weather, bulk roll, 25 ft (7.62 m) long, related parts not included with cab assembly
1шт.
Выбрано товаров: 29
