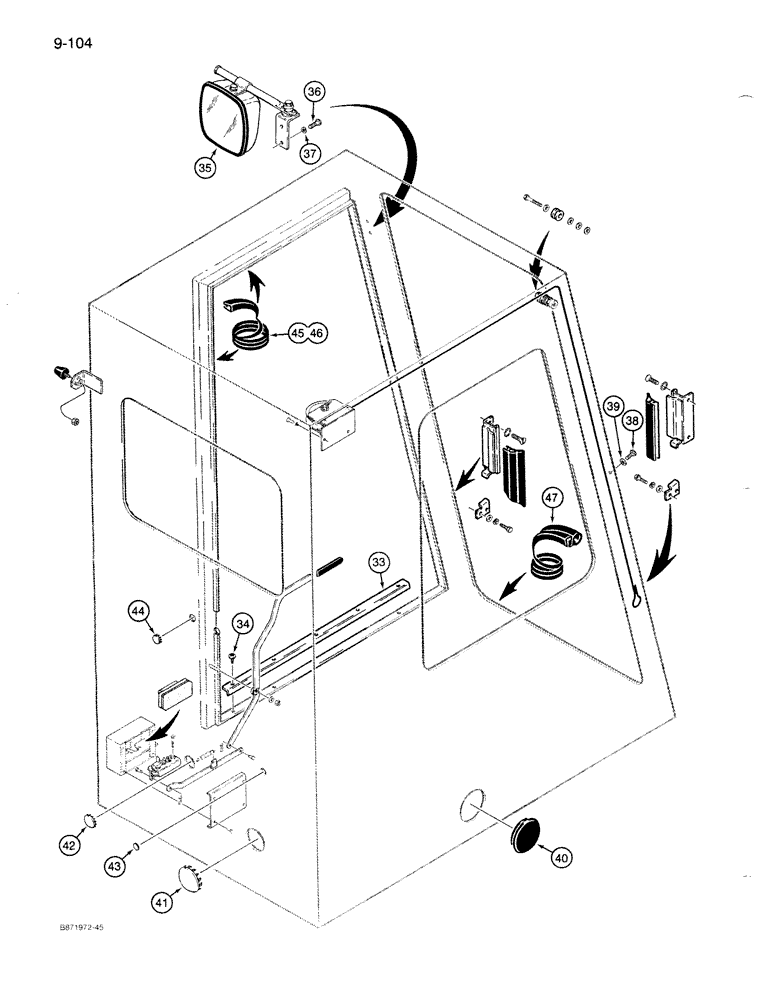

Запчасти Case 1085B (9-104) - WINDSHIELD CABLES, DOOR LATCH, AND MISCELLANEOUS, CAB S/N 334940 AND AFTER (09) - CHASSIS

33

S239626

ANGLE

COVER - door sill

1шт.

34

261-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan head Phillips, No. 8 NC x 1/2 inch

5шт.

35

S515469

MIRROR

- rear view

1шт.

36

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch

2шт.

37

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

182-300

SCREW,Slotted Pan Hd, 3/8"-24 X 3/4"

- machine, pan head slotted, 3/8 NF x 3/4 inch

1шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

40

S117638

PLUG

- cab, side and rear, 4-1/2 inch hole

2шт.

41

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3 inch, cab, rear

1шт.

42

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch, cab, rear

1шт.

43

205-15

HOLE PLUG BUTTON,3/8"

PLUG - button, 3/8 inch, cab, rear

2шт.

44

205-36

HOLE PLUG BUTTON,7/8"

PLUG - button, 7/8 inch, cab, rear, upper

2шт.

45

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 59-1/2 inch (1511 mm) long, cut from S118479 bulk roll, see below

1шт.

46

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 30-1/2 inch (775 mm) long, cut from S118479 bulk roll, see below

1шт.

47

REF

INSTRUCTION

SEAL - windshield frame to cab, see Fig. 9-096, item 36, for bulk seal number and cut length

1шт.

S118479

SEAL

TRIM - edge, cab frame, 90 inch (2286 mm) long, equals total length needed at door opening

1шт.
