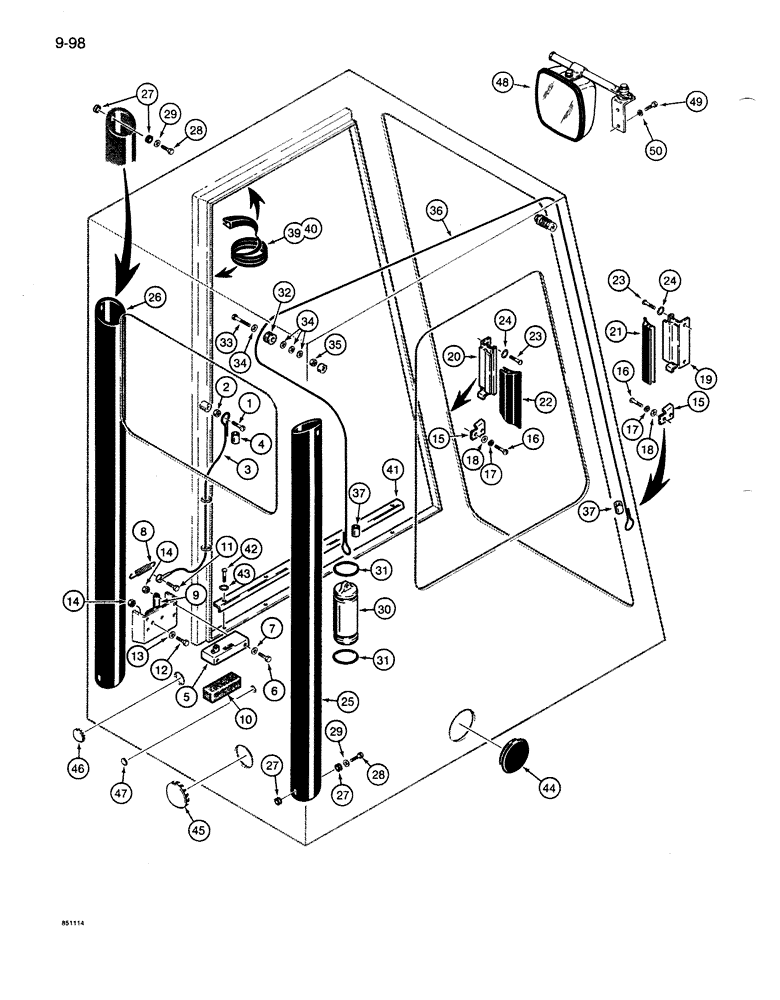

Запчасти Case 1085B (9-098) - WINDSHIELD CABLES, DOOR LATCH, AND MISCELLANEOUS, PRIOR TO CAB S/N 334940 (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - complete, for correct assembly and components see Fig. 9-088 through 9-104, Includes, Ref. 1 - 40

1шт.

1

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- machine, pan head slotted, 1/4 NC x 3/4 inch

1шт.

2

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

3

N60262

CABLE

- latch release

1шт.

4

N60268

SLEEVE

- cable splice

1шт.

5

S241527

COVER

- door latch

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

N60291

SPRING

- latch return

1шт.

9

S241526

LATCH

- door stop

1шт.

10

N60265

STOP

INSULATOR - latch housing

1шт.

11

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

5шт.

15

S119610

WEDGE

- windshield adjusting

2шт.

16

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- machine, pan head slotted, 1/4 NC x 3/4 inch

4шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

19

S241529

ASSEMBLY

TRACK - right-hand

1шт.

20

S241528

ASSEMBLY

TRACK - left-hand

1шт.

21

N60286

SEAL

- right-hand track

1шт.

22

N60285

SEAL

- left-hand track

1шт.

23

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- flat head slotted, 1/4 NC x 1/2 inch

4шт.

24

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

25

S239687

TUBE,3" ID x 54.4" L

- guide, right-hand counterweight

1шт.

26

S239688

TUBE,3" ID x 54.4" L

- guide, left-hand counterweight

1шт.

27

S75334

GROMMET,5/16" ID x 3/4" Groove Dia

- counterweight tube

8шт.

28

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

29

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

30

S239689

WEIGHT

COUNTERWEIGHT - windshield position

2шт.

31

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- counterweight to tube

4шт.

32

S117521

PULLEY

- cable

4шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

35

425-146

JAM NUT,3/8" - 16, Gr 5

- hex,jam, 3/8 inch NC

4шт.

36

S117548

METAL ROPE

CABLE - counterweight, 108" (3743 mm) long

2шт.

37

S117815

SLEEVE

- cable splice

4шт.

39

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 59-1/2 inch (1511 mm) long, cut from S118479 bulk roll, see below

1шт.

40

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 30-1/2 inch (775 mm) long, cut from S118479 bulk roll, see below

1шт.

S118479

SEAL

TRIM - edge, bulk, 90 inch (2286 mm) long, equals total length needed at door opening

1шт.

41

S239626

ANGLE

COVER - door sill

1шт.

42

261-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan head Phillips, No. 8 NC x 1/2 inch

5шт.

43

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

5шт.

44

S117638

PLUG

- cab, side, 4-1/2 inch hole

2шт.

45

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3 inch, cab, rear

1шт.

46

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch, cab, rear

1шт.

47

205-15

HOLE PLUG BUTTON,3/8"

PLUG - button, 3/8 inch, cab, rear

6шт.

48

S515469

MIRROR

- rear view

1шт.

49

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch

2шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
