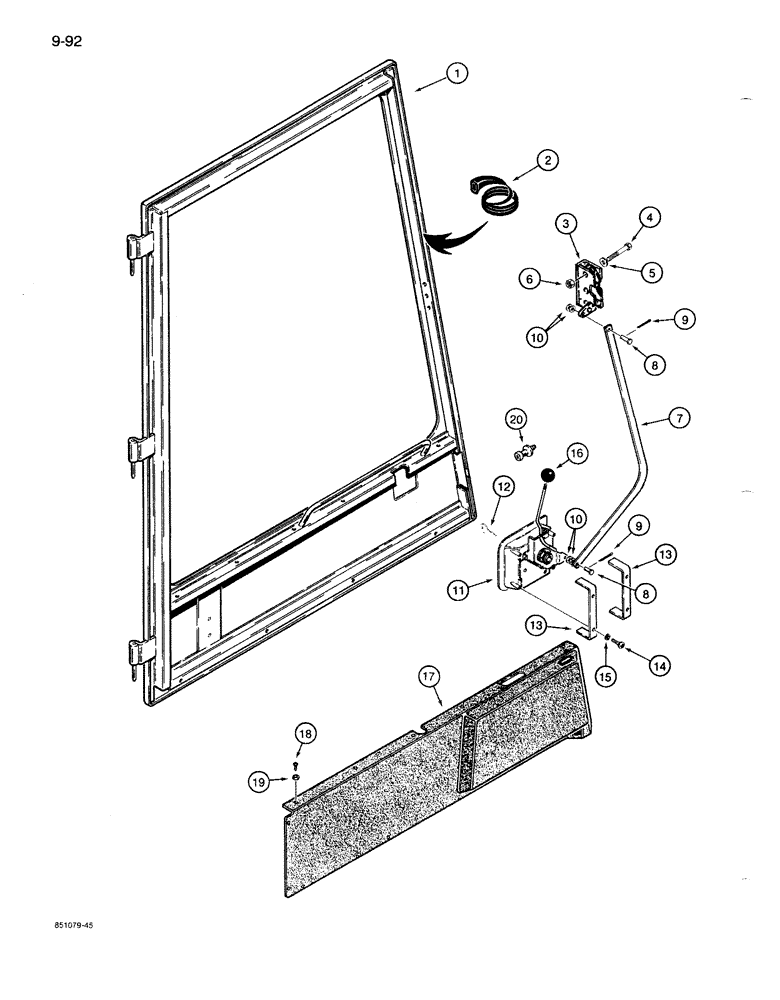

Запчасти Case 1085B (9-092) - DOOR ASSEMBLY, CAB SERIAL NUMBER 334940 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - complete, for correct assembly and components see Fig. 9-088 through 9-104, Includes, Ref. 1 - 20

1шт.

N13073

DOOR ASSY.

DOOR ASSEMBLY - cab serial number 334940 and after, includes Ref. 1A and 4 on Fig. 9-088, Includes, Ref. 1 - 19

1шт.

1

N13094

DOOR

- cab

1шт.

2

S119612

DOOR SEAL

- door edge, 202 inch (5131 mm) long

1шт.

3

N60267

LATCH

- door, upper, rotary

1шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

7

N13097

ROD ASSY.

ROD - latch release

1шт.

8

K912968

PIN

- clevis, rod

2шт.

9

136-158

COTTER PIN,Int, 9/64" x .054"

PIN - hair, 9/64 x 1-1/8 inch

2шт.

10

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

11

N13098

HANDLE

LATCH ASSEMBLY - door, includes one key

1шт.

12

N13118

KEY

- door latch

1шт.

13

N13099

RETAINER

- door latch

1шт.

14

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- machine, oval head Phillips, No. 10 NC x 5/8 inch

4шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

16

D60437

KNOB

- door latch

1шт.

17

N13096

PANEL

COVER - door latch, lower door

1шт.

18

179-153

SCREW,Cross Oval Hd, #10 - 24 x 1/2"

- machine, oval head Phillips, No. 10 NC x 1/2 inch

12шт.

19

F63765

WASHER

- shoulder

12шт.

20

S119611

PLATE

STRIKER - door latch

1шт.

4

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
