Артикул
Название
Примечание
Количество
REF
INSTRUCTION
CAB ASSEMBLY - complete, for correct assembly and components see Fig. 9-088 through 9-104, Includes, Ref. 1 - 35
1шт.
S956671

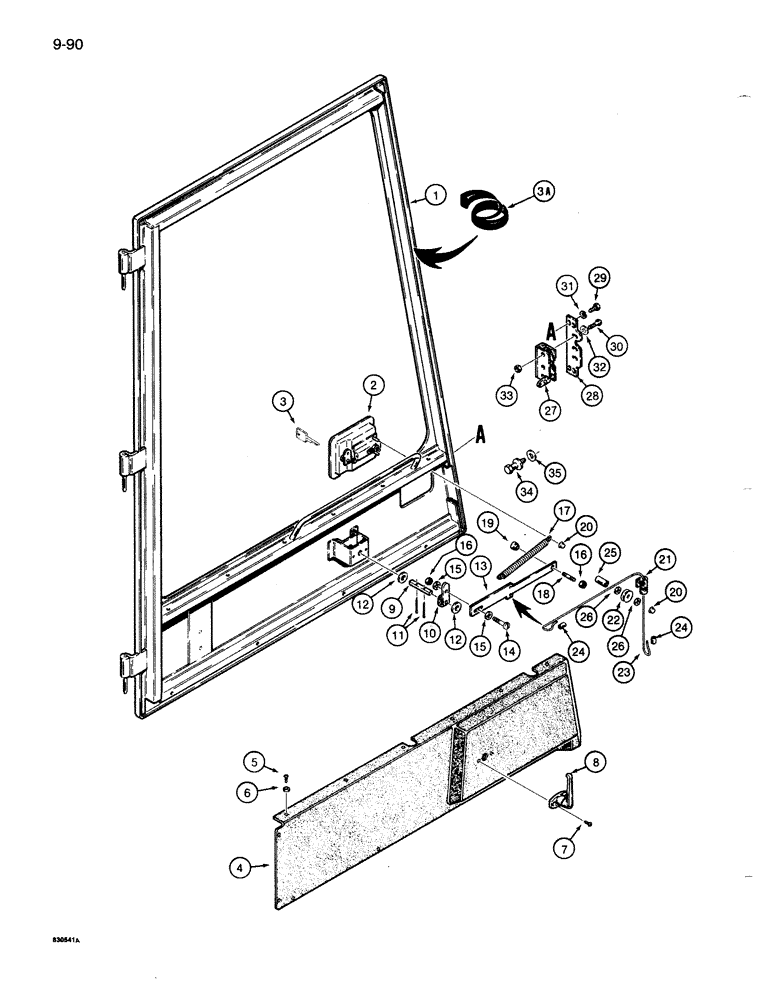

DOOR ASSY.
DOOR ASSEMBLY - before cab serial number 334940, includes Ref. 1 & 4 on Fig. 9-088, Includes, Ref. 1 - 35
1шт.
1
S119249
DOOR
- cab, Includes, Ref. 2 and 3
1шт.
2
S239629
LATCH
- door, outside
1шт.
3
N60100
KEY
- door latch
1шт.
3a
S119612
DOOR SEAL
- door edge, 202 inch (5131 mm) long
1шт.
4
S617800
PANEL
- access, lower door
1шт.
5
142-102
SCREW,Cross Oval Hd, #10 - 24 x 3/4"
- machine, oval head Phillips, No. 10 NC x 3/4 inch
12шт.
6
F64315
WASHER
- special trim
12шт.
7
SCREW,Cross Oval Hd, 1/4" - 20 x 5/8"
- machine, oval head Phillips, 1/4 NC x 5/8 inch
2шт.
8
S118652
HANDLE
- inside, cab door
1шт.
9
S118653
SHAFT
-, Serial Range: handle-link
1шт.
10
S117526
LATCH
LINK - shaft, includes screw
1шт.
12
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
2шт.
13
N60278
LINK
- cable connecting
1шт.
14
182-204
SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"
- machine, pan head slotted, 1/4 NC x 3/4 inch
1шт.
15
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
2шт.
16
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
2шт.
17
S119613
SPRING
- return, handle
1шт.
18
S118648
STUD
- link
1шт.
19
N60261
SPACER
- link
1шт.
20
S118721
NUT
- push-on type
2шт.
21
S118720
GUIDE
- cable
1шт.
22
S118723
SHEAVE
- cable
1шт.
23
S119184
CABLE
-, Serial Range: link-latch
1шт.
24
S118651
SLEEVE
- cable splice
2шт.
25
S118722
SPACER
- cable sheave
1шт.
26
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
2шт.
27
N60267
LATCH
- door, rotary
1шт.
28
N60274
PLATE
- latch support
1шт.
29
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
- hex, 1/4 NC x 5/8 inch
4шт.
30
182-209
SCREW,Sl Pan Hd, 1/4" - 20 x 1 1/2"
- machine, pan head slotted, 1/4 NC x 1-1/2 inch
3шт.
31
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
32
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
3шт.
33
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
3шт.
34
S119611
PLATE
STRIKER - door latch
1шт.
35
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
1шт.
Выбрано товаров: 38
