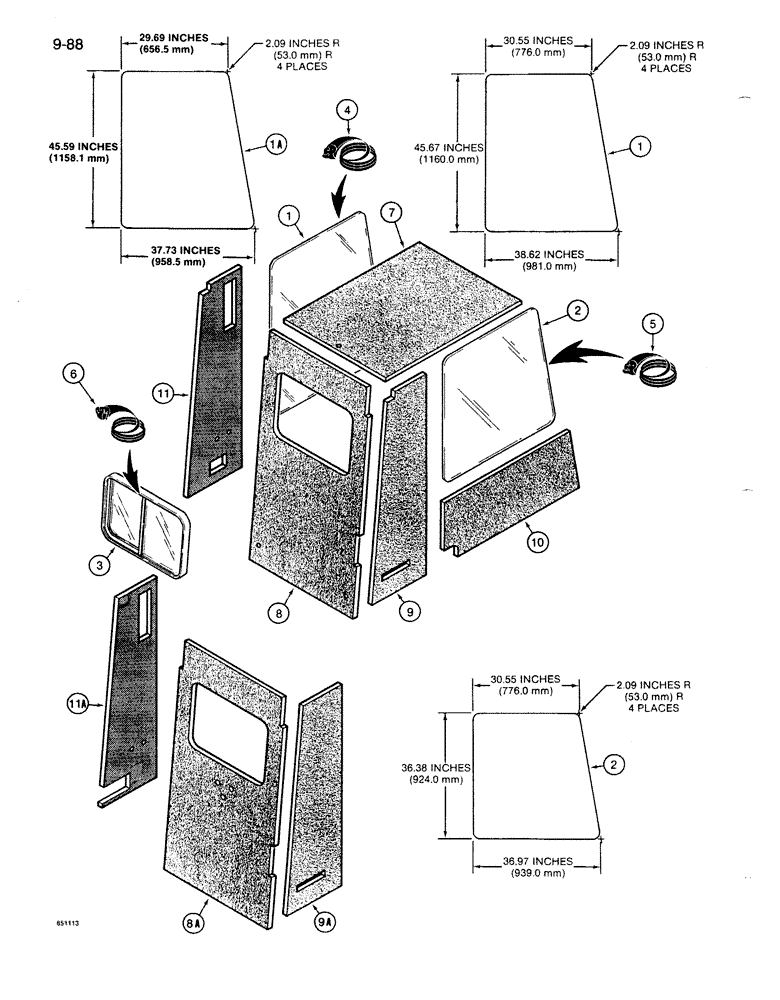

Запчасти Case 1085B (9-088) - CAB, WINDOWS, SEALS, AND INSULATION (09) - CHASSIS

S956669

CAB

ASSEMBLY - complete, used prior to cab S/N 334940, includes parts listed on Fig. 9-088 - 9-104, no longer available, for complete cab order S619252, Includes, Ref. 1 - 11A

1шт.

S618951

CAB

ASSEMBLY - complete, used cab S/N 334940 and after, includes parts listed on Fig. 9-088 through 9-104, no longer available, for complete cab order S619252, Includes, Ref. 1 - 11A

1шт.

S619252

CAB

ASSEMBLY - complete, includes skylight, replacement for S956669 & S618951 cab assemblies, no parts list available at time of print, Includes, Ref. 1 - 11A

1шт.

1

REF

INSTRUCTION

LEXAN - window, in door, part of S956671 door assembly used prior to cab S/N 334940, see Fig. 9-090

1шт.

1a

REF

INSTRUCTION

LEXAN - window, in door, part of N13073 door assembly used cab S/N 334940 and after, see Fig. 9-092

1шт.

2

REF

INSTRUCTION

LEXAN - window, RH

1шт.

3

S516738

WINDOW

ASSEMBLY - sliding, rear

1шт.

4

REF

INSTRUCTION

SEAL - Lexan, used with cab door window, 157-5/8 inch (4003 mm) long, cut from S118468 bulk, see below

1шт.

5

REF

INSTRUCTION

SEAL - Lexan, used with RH cab window, 137-3/16 inch (3485 mm) long, cut from S118468 bulk, see below

1шт.

7

S241506

INSULATOR

Cab, top

1шт.

8

S516036

INSULATOR

Cab, rear, used before cab S/N 334940

1шт.

8a

N13078

INSULATOR

Cab, rear, used on cab S/N 334940 and after

1шт.

9

S241504

INSULATOR

Cab, RH, rear, used before cab S/N 334940

1шт.

9a

N13077

INSULATOR

Cab, RH, rear, used on cab S/N 334940 and after

1шт.

10

S241505

INSULATOR

Cab, RH, front

1шт.

11

S241530

INSULATOR

Cab, LH, rear, used before cab S/N 334940

1шт.

11a

N13080

INSULATOR

Cab, LH, rear, used on cab S/N 334940 and after

1шт.

S118468

SEAL

Window glass, bulk, 50 ft (15.24 m) long

1шт.

N6492

GASKET

Window glass, bulk, 50 ft (15.24 m) long

1шт.
