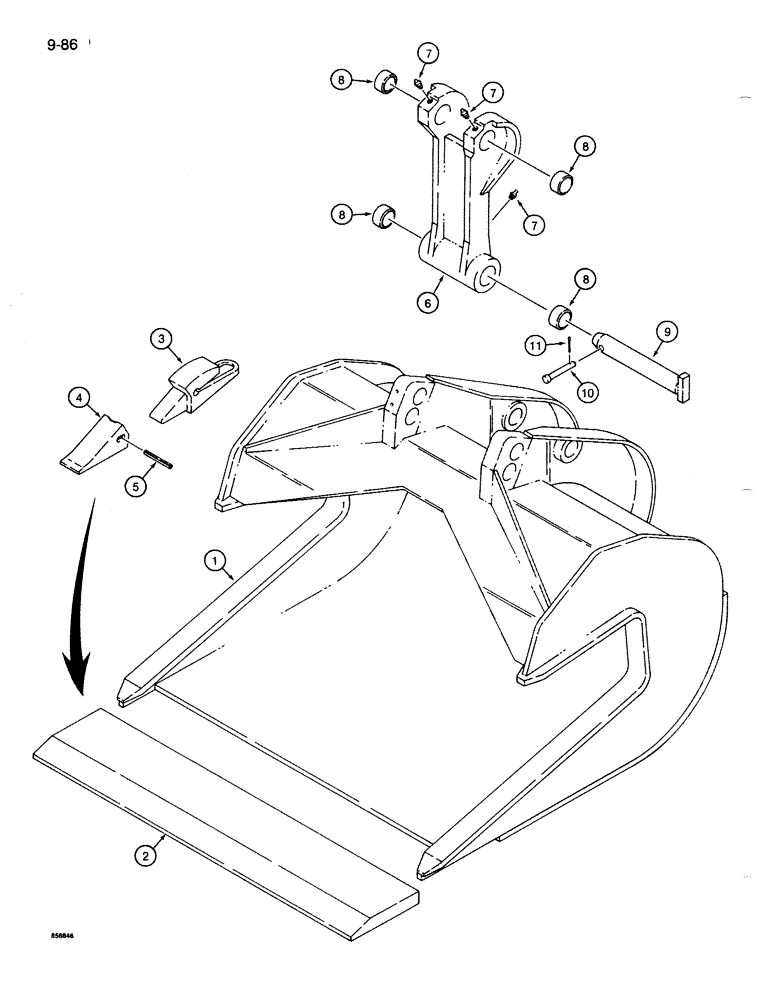

Запчасти Case 1085B (9-086) - CONCRETE REMOVAL BUCKET (09) - CHASSIS

S952763

BUCKET

ASSEMBLY - concrete removal, machinery Ref., order from Machinery Price List, Includes, Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - concrete removal

1шт.

2

S218340

EDGE, CUTTING

EDGE - cutting, bucket

1шт.

S503108

TOOTH

ASSEMBLY - bucket, no longer available, order components below, Includes, Ref. 3 - 5

6шт.

3

S59402

SHANK

- tooth

1шт.

4

S503093

POINT

- tooth

1шт.

5

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

1шт.

S617102

TURBINE

LINK ASSEMBLY - bucket, Includes, Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

LINK - bucket

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

8

S202134

BUSHING

- link

4шт.

9

S223986

PIN

-, Serial Range: link-bucket

1шт.

10

S61973

AXLE PIN

PIN - clevis, 1/2 diameter x 3-3/4 inch grip length

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.
