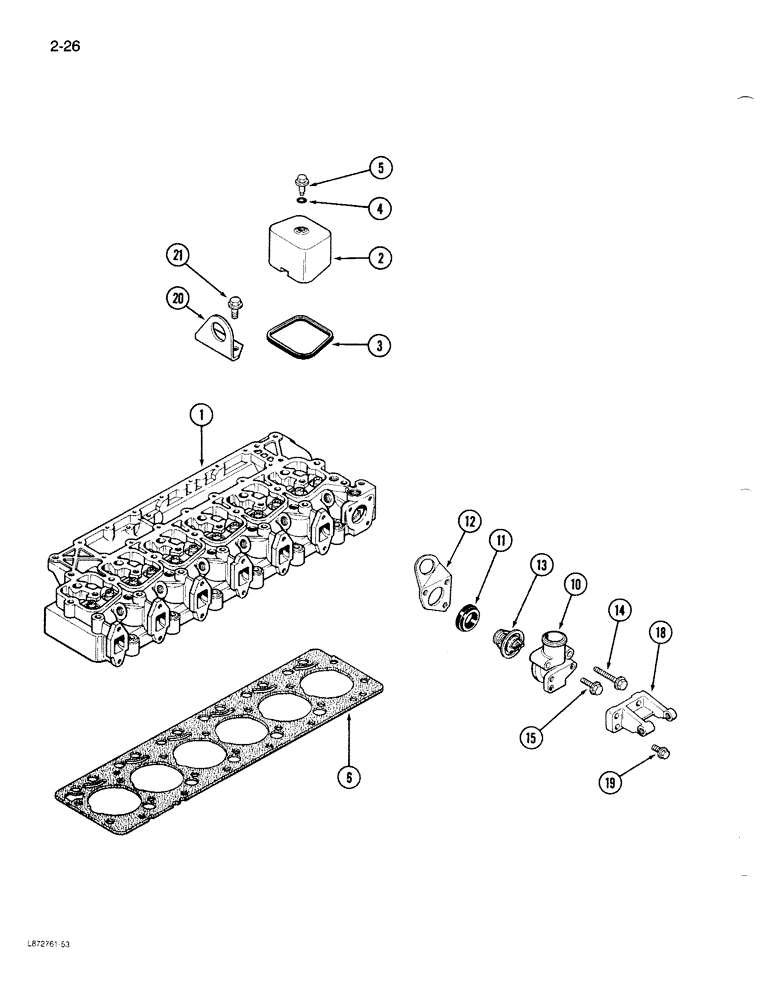

Запчасти Case 1085B (2-026) - CYLINDER HEAD COVERS AND GASKET, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See Figure 2-28)

1шт.

2

J902604

COVER

- rocker, valve

6шт.

3

J902666

GASKET

- cover, rocker arm

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

6

J917358

GASKET

- head, standard (1-Notch)

1шт.

5

J907049

BOLT,Hex

- hex flange, 8 mm - 1.25 x 21 mm

6шт.

6

J917358

GASKET

- head, standard (1-Notch) (Replaces J915730, J907057)

1шт.

6

J917359

GASKET

- head, 0.23 mm thicker (2-Notches) (Replaces J915731, J907058)

1шт.

6

J917360

GASKET

- head, 0.51 mm thicker (3-Notches) (Replaces J915732, J907059)

1шт.

10

J914409

HOUSING

- thermostat

1шт.

11

J903301

GASKET

- housing, thermostat

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

J912587

THERMOSTAT

- water, 95 degree C, and housing

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 70 mm (Replaces J903096), Thermostat and housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 35 mm (Replaces J900632), Thermostat and housing

1шт.

18

J910713

SUPPORT

- alternator mounting (Replaces J908774), thermostat and housing

1шт.

19

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm, thermostat and housing

3шт.

20

J908118

BRACKET

- lifting, rear, thermostat and housing

1шт.

21

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm, thermostat and housing

2шт.
