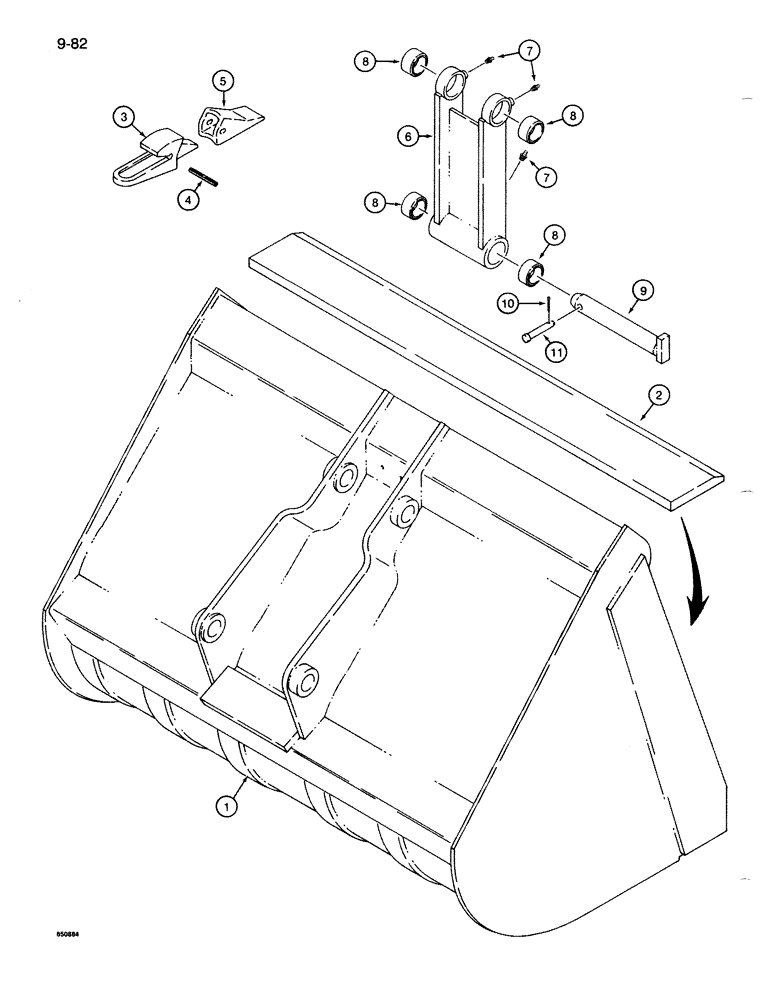

Запчасти Case 1085B (9-082) - FRONT LOADER BUCKET (09) - CHASSIS

S59093

BUCKET

ASSEMBLY - 60 inch (1524 mm), machinery Ref., order from Machinery Price List, Includes, Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - 60 inch (1524 mm)

1шт.

2

S82501

EDGE, CUTTING

EDGE - cutting, 60 inch (1524 mm) bucket

1шт.

3

S59402

SHANK

- tooth

5шт.

4

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

5шт.

5

S503093

POINT

- tooth

5шт.

S205652

LINK

ASSEMBLY - tool cylinder to bucket, Includes, Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

LINK - tool, Serial Range: cylinder-bucket

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

8

S202134

BUSHING

- link

4шт.

9

S223986

PIN

-, Serial Range: link-bucket

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

11

S61973

AXLE PIN

PIN - clevis, 1/2 x 3-3/4 inch grip length

1шт.
