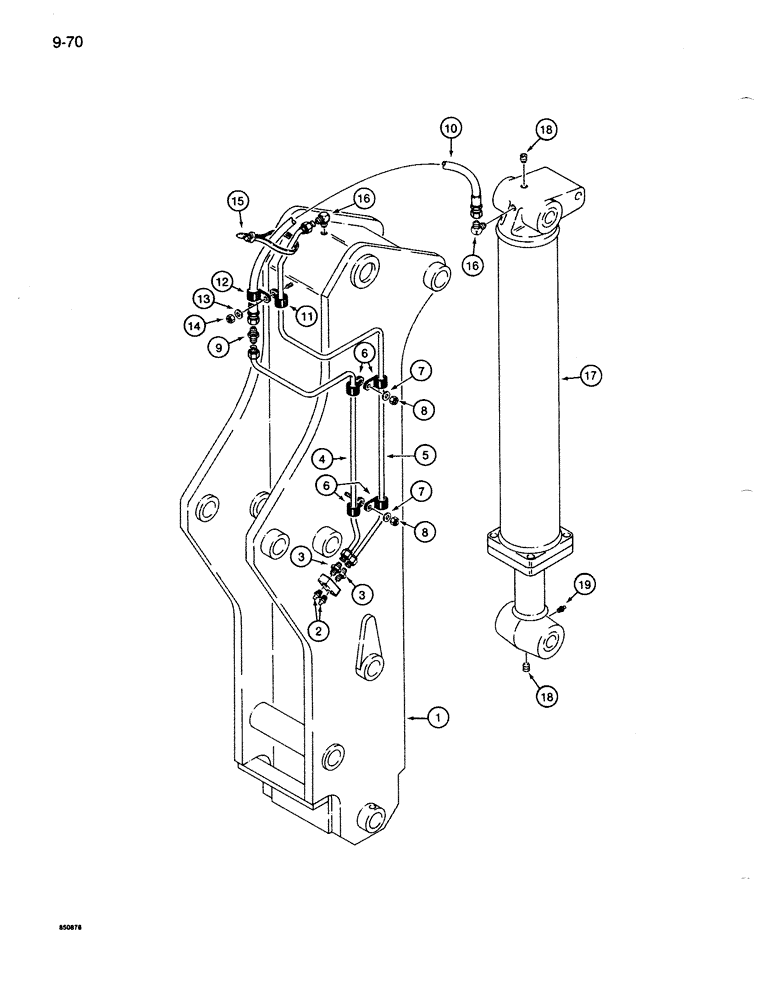

Запчасти Case 1085B (9-070) - Y-BOOM ARM LUBRICATION LINES (09) - CHASSIS

1

S954062

BOOM

Y-BOOM - parts list Fig. 9-066 for boom and bushings

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

3

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

4

S242392

TUBE ASSY.,6.35 mm OD

TUBE - lubrication, to tool cylinder closed end

1шт.

5

S242394

TUBE,635 mm OD

- lubrication, pivot point, Y-boom arm to boom

1шт.

6

49851

SHIELD

- tube

4шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

9

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16-20 inch flare, tube to hose

1шт.

10

S77467

HOSE

- 38 inch (965 mm) long, connecting, Serial Range: tube-cylinder

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

1шт.

12

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

2шт.

17

G109007

CYLINDER

ASSEMBLY - tool, parts list Fig. 8-098

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
