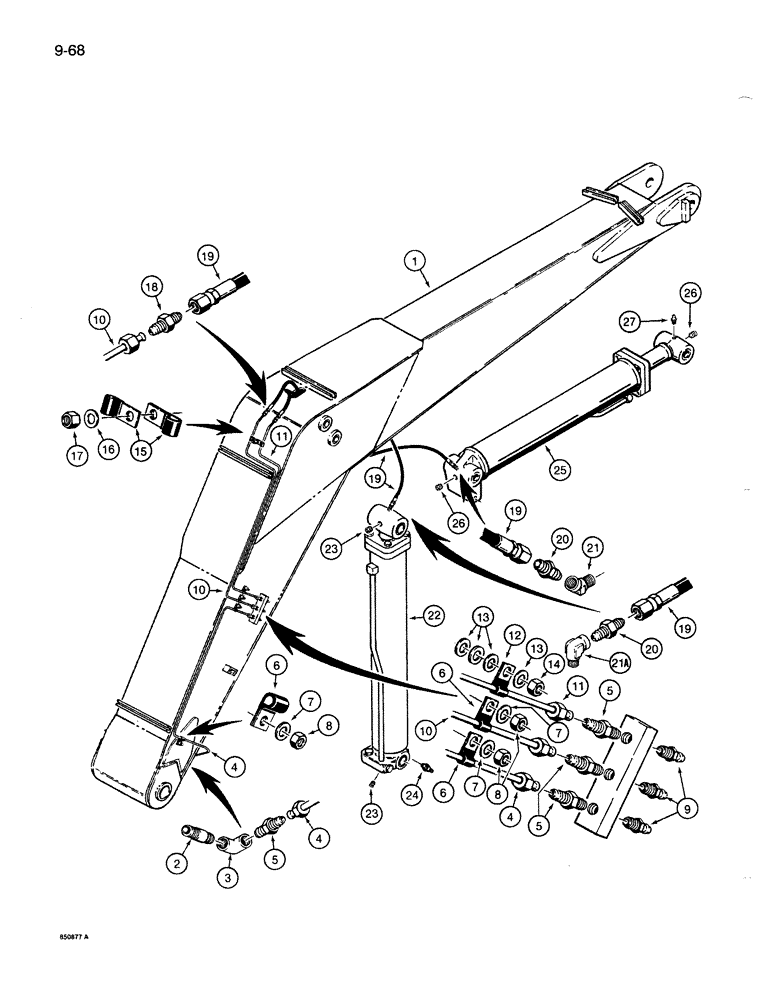

Запчасти Case 1085B (9-068) - Y-BOOM LUBRICATION LINES (09) - CHASSIS

1

S954062

BOOM

Y-BOOM - parts list Fig. 9-066 for boom and bushings

1шт.

2

221-111

PIPE,Nipple, 1/8" NPT x 3"

NIPPLE - straight, 1/8 PT x 3 inch

1шт.

3

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- pipe, 90 degree, 1/8 inch female

1шт.

4

S242293

TUBE,6.35" OD

- lubrication, pivot point, Y-boom to turntable

1шт.

5

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

4шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

3шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

8

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

10

S242294

TUBE,6.35 mm OD

- lubrication, to boom cylinder rod end

1шт.

11

S242295

TUBE,6.35 mm OD

- lubrication, to arm cylinder closed end

1шт.

12

49851

SHIELD

- tube

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

14

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

15

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

18

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16-20 inch flare

2шт.

19

S77467

HOSE

- 38 inch (965 mm) long, connecting, Serial Range: tube-cylinders

2шт.

20

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

21

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

21a

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

22

S956911

CYLINDER

ASSEMBLY - Y-boom, parts list Fig. 8-094

1шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

24

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

25

S956911

CYLINDER

ASSEMBLY - arm, parts list Fig. 8-094

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
