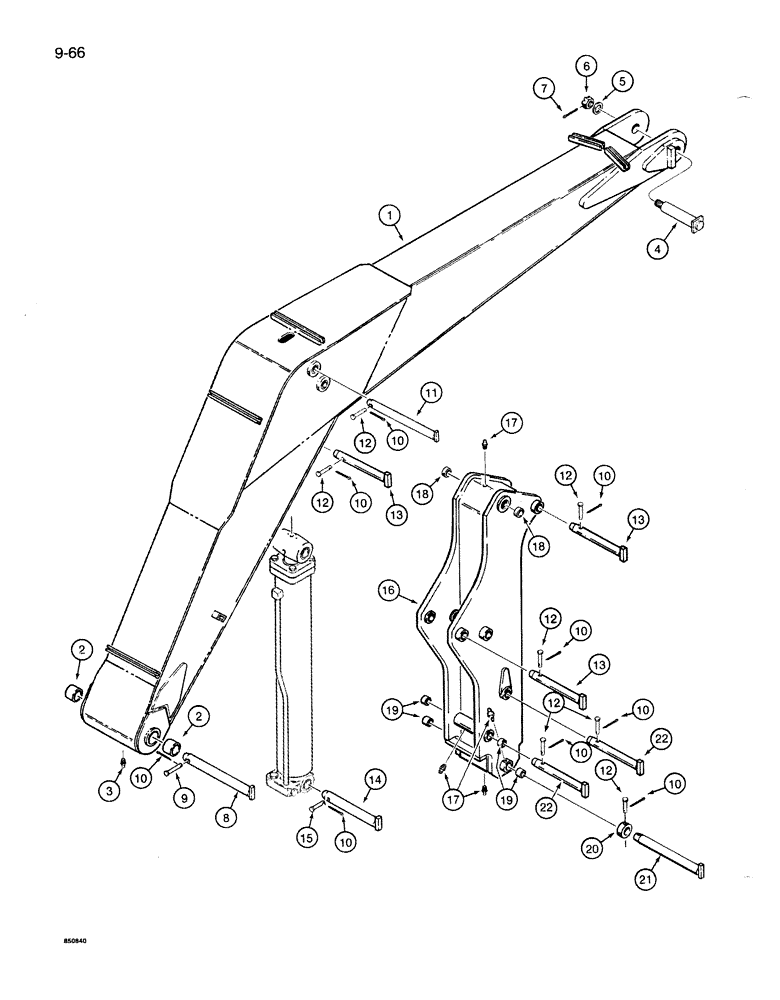

Запчасти Case 1085B (9-066) - Y BOOM AND ARM (09) - CHASSIS

1

S954062

BOOM

- weldment frame assembly, Includes, Ref. 2 - 3

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- boom

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

4

S220250

PIN ASSY.

PIN -, Serial Range: boom-arm

1шт.

5

95-31262

WASHER,2.62" ID x 5" OD x 0.24" Thk

- flat, 2-5/8 x 5 x 1/4 inch

1шт.

6

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - heavy hex, slotted, 2 inch NC

1шт.

7

32-1656

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

1шт.

8

S201023

PIN

-, Serial Range: boom-turntable

1шт.

9

S61976

CLEVIS PIN

PIN - clevis, 5/8 diameter x 4-5/8 inch grip length

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

9шт.

11

S208517

PIN ASSY.

PIN - boom cylinder rod, Serial Range: end-boom

1шт.

12

S61973

AXLE PIN

PIN - clevis, 1/2 diameter x 3-3/4 inch grip length

7шт.

13

S223986

PIN

- arm cylinder ends and closed end of tool cylinder

3шт.

14

S213911

PIN

- boom, Serial Range: cylinder-turntable

1шт.

15

S61973

AXLE PIN

PIN - clevis, 1/2 diameter x 4-1/4 inch grip length

1шт.

16

S614215

BOOM

ARM - weldment frame assembly, Includes, Ref. 17 - 19

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

18

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- arm pivot

2шт.

19

S202134

BUSHING

- tool and link pivot

4шт.

20

S68746

COLLAR

- pin retaining, Ref. 22 pin

1шт.

21

S204746

PIN

-, Serial Range: tool-arm

1шт.

22

S223986

PIN

- arm, Serial Range: extention-arm

2шт.
