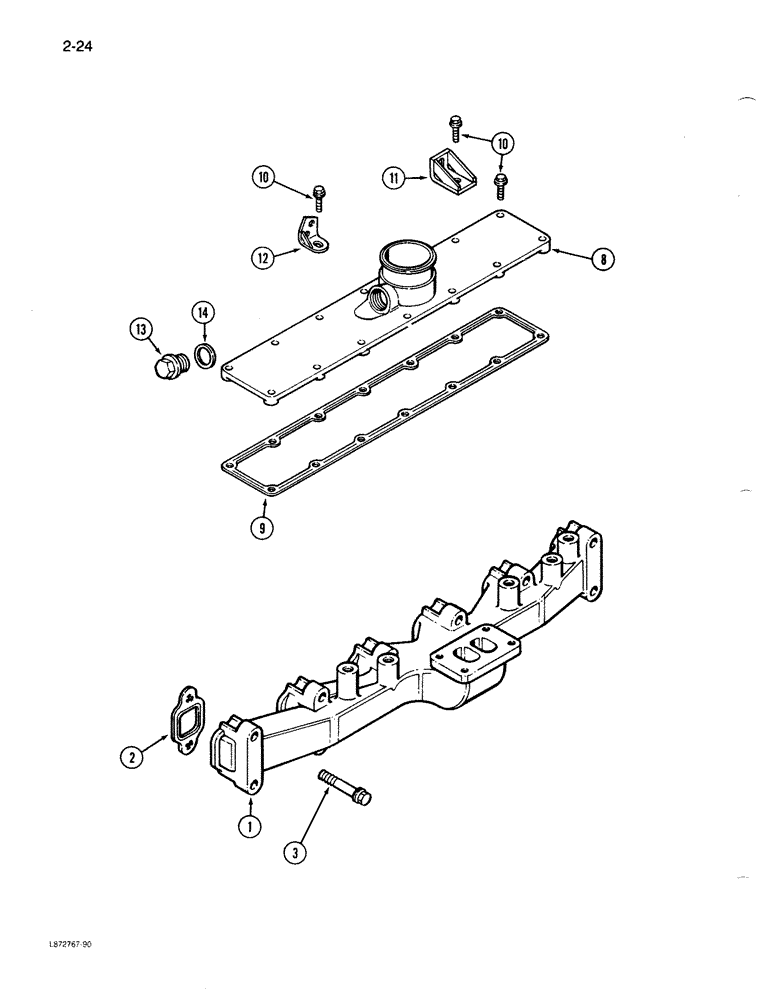

Запчасти Case 1085B (2-024) - MANIFOLDS, 6T-590 ENGINE (02) - ENGINE

1

J902347

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, 10 mm - 1.50 x 70 mm, exhaust

12шт.

8

J904862

COVER

- intake manifold

1шт.

Part of Intake Manifold Kit, P/N A77418

1шт.

9

J907036

GASKET

- intake manifold

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, (Replaces J904341), Intake Hex Flg Hd, M8 x 1.25 x 25

2шт.

11

REF

INSTRUCTION

BRACKET - fuel line (See Figure 3-16), intake

2шт.

12

REF

INSTRUCTION

BRACKET - fuel line (See Figure 3-16), intake

2шт.

13

J907185

PLUG

ASSEMBLY - manifold, intake

1шт.

Part of Intake Manifold Kit, P/N A77418

1шт.

14

J906773

WASHER

- plug sealing, intake

1шт.

Part of Intake Manifold Kit, P/N A77418

1шт.

A77418

KIT

- intake manifold, Includes: Ref. numbers 8, 13, and 14

1шт.
