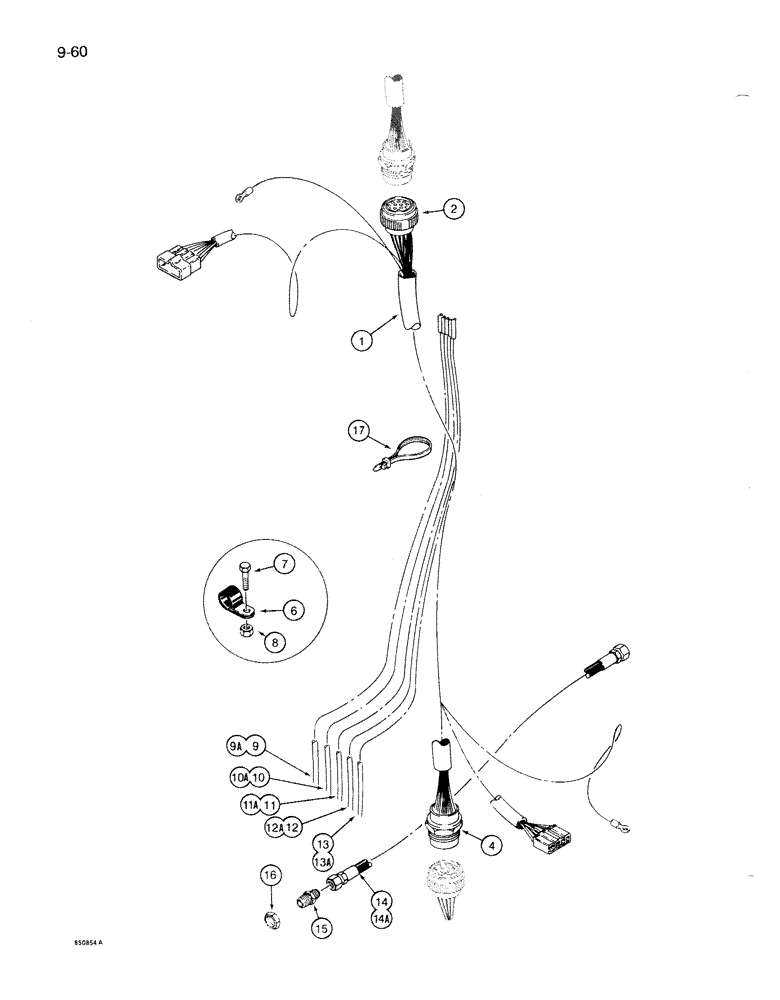

Запчасти Case 1085B (9-060) - CAB RISER, ELECTRICAL HARNESS AND AIR TUBING (09) - CHASSIS

1

S616760

HARNESS

- 30 and 60 inch cab riser, Includes, Ref. 2 - 5

1шт.

2

S99514

COUPLING

CONNECTOR - harness, with 16 socket contacts

1шт.

3

S99513

CONTACT

- connector, socket, not shown

16шт.

4

S99518

PIVOT ASSY.

CONNECTOR - harness, with 16 pin contacts

1шт.

5

S99516

CONTACT

- connector, pin, not shown

16шт.

6

R14668

CLAMP

- harness and tubing

3шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

8

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

9

S119864

TUBE - nylon, 80 inch (2032 mm) long, cut from S118405 bulk roll, turntable bearing lube line on units with 30 inch riser

1шт.

9a

S119824

PLASTIC-RUBBER TUBE,0.375" OD x 110" L

TUBE - nylon, 110 inch (2794 mm) long, cut from S118405 bulk roll, turntable bearing lube line on units with 60 inch riser

1шт.

10

S119893

TUBE - nylon, 146 inch (3708 mm) long, cut from S118405 bulk roll, line to air swivel port (1) on units with 30 inch riser

1шт.

10a

S119853

TUBE - nylon, 176 inch (4470 mm) long, cut from S118405 bulk roll, line to air swivel port (1) on units with 60 inch riser

1шт.

11

S119894

TUBE - nylon, 97 inch (2464 mm) long, cut from S118405 bulk roll, line to air swivel port (2) on units with 30 inch riser

1шт.

11a

S119896

TUBE - nylon, 127 inch (3226 mm) long, cut from S118405 bulk roll, line to air swivel port (2) on units with 60 inch riser

1шт.

12

S119843

TUBE - nylon, 108 inch (2743 mm) long, cut from S118405 bulk roll, line to air swivel port (3) on units with 30 inch riser

1шт.

12a

S119897

TUBE - nylon, 140 inch (3556 mm) long, cut from S118405 bulk roll, line to air swivel port (3) on units with 60 inch riser

1шт.

13

S119891

TUBE - nylon, 111 inch (2819 mm) long, cut from S118405 bulk roll, line to master cylinder on units with 30 inch riser

1шт.

13a

S119895

TUBE - nylon, 141 inch (3581 mm) long, cut from S118405 bulk roll, line to master cylinder on units with 60 inch riser

1шт.

14

S11226

HOSE

- 3/8 ID x 20 inch (508 mm) long, extension, used on units with 30 inch riser, steering control hoses to upper swivel ports

4шт.

14a

S11229

HOSE ASSY.

HOSE - 3/8 ID x 49 inch (1245 mm) long, extension, used on units with 60 inch riser, steering control hoses to upper swivel ports

4шт.

15

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
