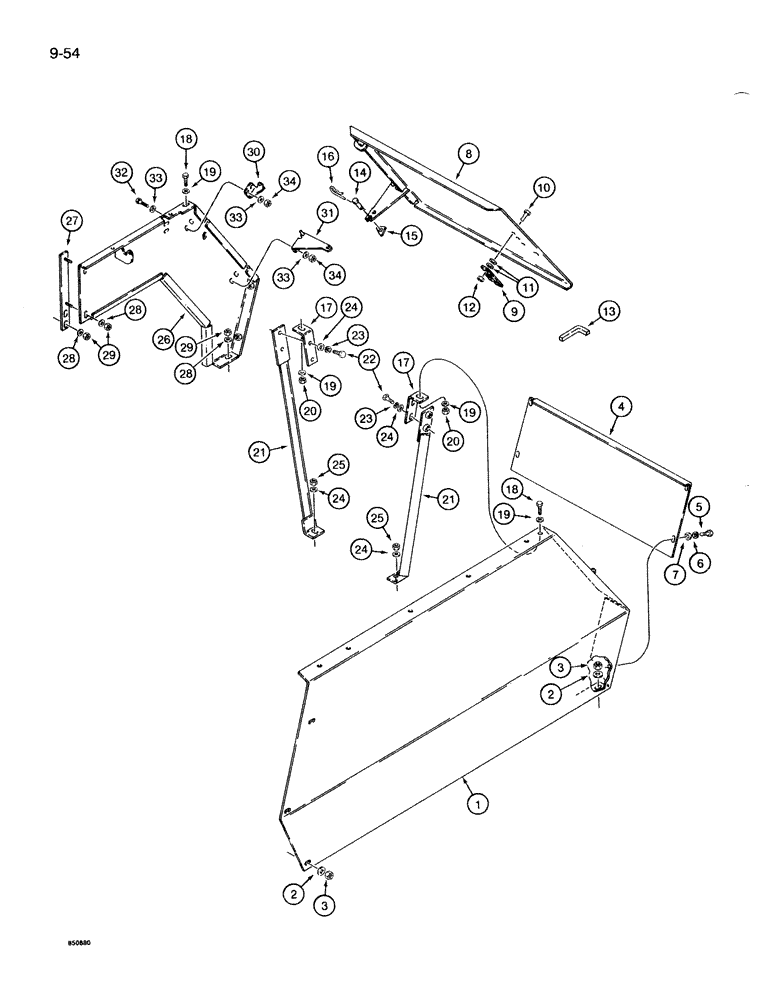

Запчасти Case 1085B (9-054) - RIGHT-HAND AND FRONT SIDE SHIELDS (09) - CHASSIS

1

S617761

SHROUD

SHIELD - right-hand side, rear

1шт.

2

S95569

WASHER

- flat, hardened

8шт.

3

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

8шт.

4

S219775

SHEET

PLATE - lower front

1шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

S95569

WASHER

- flat, hardened

4шт.

8

S513408

DOOR

- side access, right-hand side front

1шт.

9

S110414

LOCK

- side access door

1шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

12

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

2шт.

13

S115083

KEY

- lock, access door

1шт.

14

S10775

PIN

- clevis, access door lower hinge

1шт.

15

S62147

RING

- retainer

1шт.

16

S120261

PIN

- hair, hinge pin retaining

1шт.

17

S108326

ANGLE

BRACKET - brace support

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

19

S95569

WASHER

- flat, hardened

4шт.

20

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

21

S231608

BRACE

- support

2шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

S95569

WASHER

- flat, hardened

6шт.

25

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

26

S606687

SHROUD

SHIELD - front

1шт.

27

S239820

SUPPORT

BRACKET - shield

1шт.

28

S95569

WASHER

- flat, hardened

5шт.

29

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

5шт.

30

S221455

BRACKET

- upper, door hinge

1шт.

31

S221453

BRACKET

- lower, door hinge

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

33

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

8шт.

34

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

10

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
