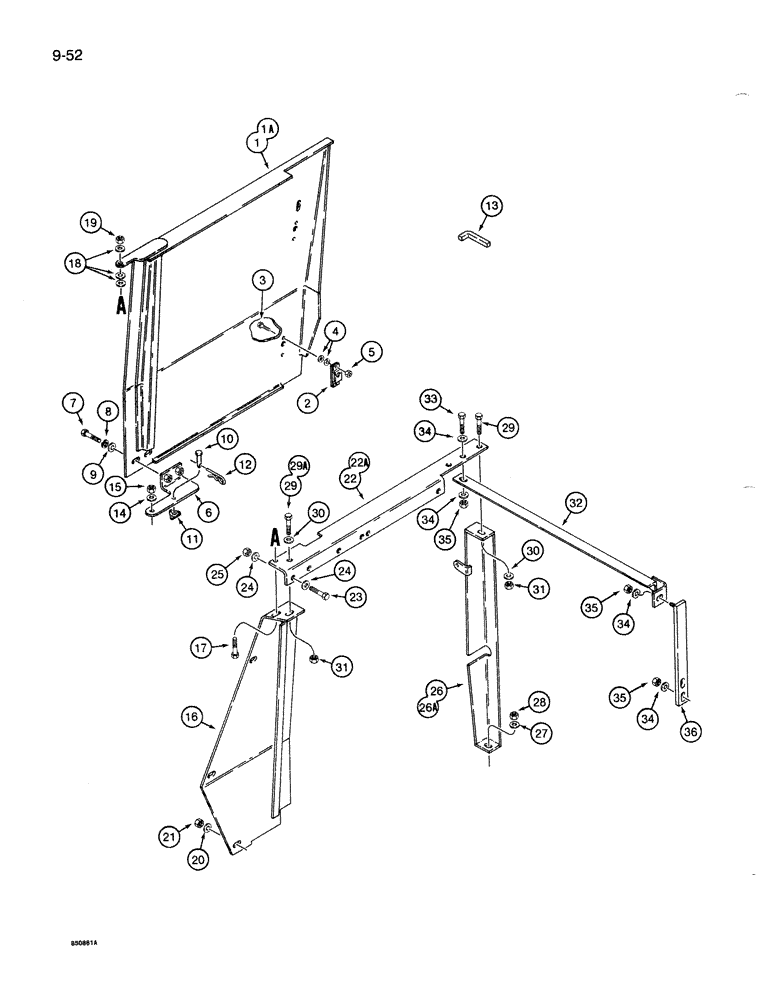

Запчасти Case 1085B (9-052) - LEFT-HAND SIDE SHIELDS (09) - CHASSIS

1

S617762

SHROUD

DOOR - side access, left-hand rear, used on models without cab riser

1шт.

1a

S617764

SHROUD

DOOR - side access, left-hand rear, used on models with cab riser, not shown

1шт.

2

S110414

LOCK

- side access door

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

5

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

4шт.

6

S240878

BRACKET

HINGE - lower

1шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

S95569

WASHER

- flat, hardened

2шт.

10

S10775

PIN

- clevis, lower hinge

1шт.

11

S62147

RING

- retainer

1шт.

12

S120261

PIN

- hair, hinge pin retaining

1шт.

13

S115083

KEY

- lock, access door

1шт.

14

S95569

WASHER

- flat, hardened

1шт.

15

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

16

S617763

SHROUD

SHIELD - left side rear

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

3шт.

19

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

20

S95569

WASHER

- flat, hardened

3шт.

21

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

3шт.

22

S515508

ANGLE

BRACKET - upper, used on models without cab riser

1шт.

22a

S515509

ANGLE

BRACKET - upper, used on models with cab riser, not shown

1шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

25

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

26

S514649

BRACE

- support, used on models without cab riser

1шт.

26a

S238100

BRACE

- support, used on models with cab riser, not shown

1шт.

27

S95569

WASHER

- flat, hardened

1шт.

28

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

29

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

29a

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

31

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

32

S237076

ANGLE

BRACKET - support

1шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

34

S95569

WASHER

- flat, hardened

5шт.

35

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

36

S226309

BRACKET

- small, vertical

1шт.

3

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
