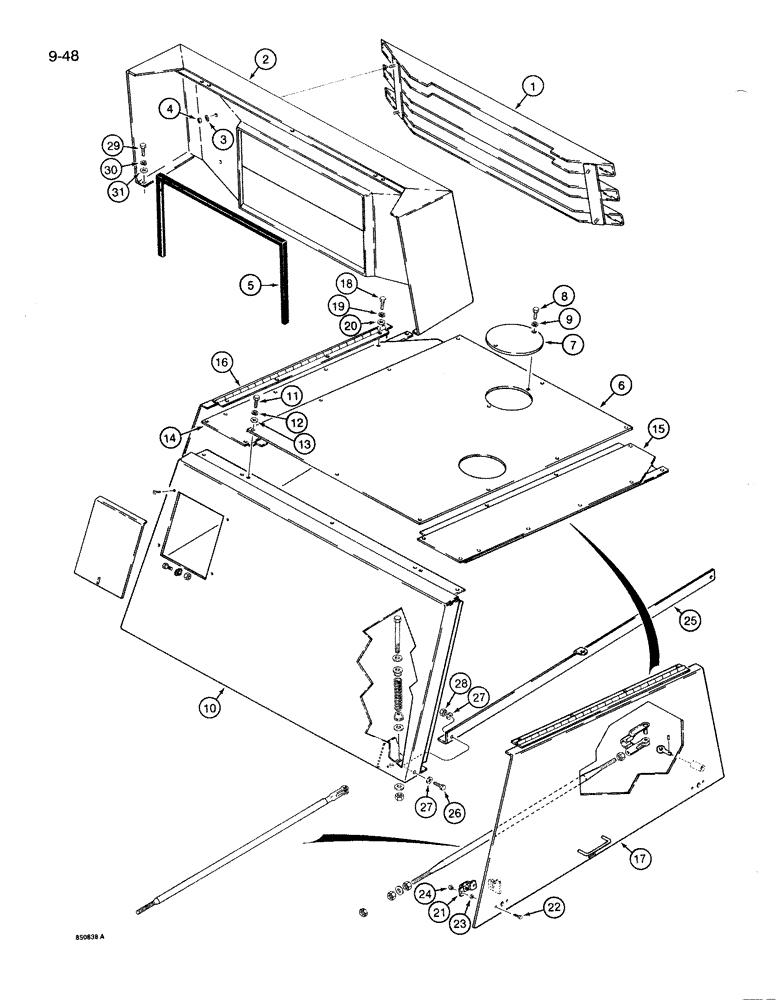

Запчасти Case 1085B (9-048) - ENGINE SHROUDS (09) - CHASSIS

1

S515999

GRILLE ASSY

GRILLE - radiator

1шт.

2

S617415

SHROUD

- front

1шт.

3

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

4

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

5

S119366

SEALING STRIP

SEAL - rubber, 70 inch (1778 mm) long, cut from S118475 bulk roll, see below

1шт.

6

S515849

COVER ASSY

HOOD - engine

1шт.

7

S241674

COVER

- hood, radiator access

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

S617521

SHROUD

- rear

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

18шт.

12

492-11038

LOCK WASHER,3/8"

18шт.

13

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

18шт.

14

S241213

SUPPORT

- hood, left-hand

1шт.

15

S241214

SUPPORT

- hood, right-hand

1шт.

16

S617498

DOOR ASSY.

PANEL - side, engine, left-hand

1шт.

17

S617497

DOOR

PANEL - side, engine, right-hand

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

19

492-11038

LOCK WASHER,3/8"

8шт.

20

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

8шт.

21

S110414

LOCK

- side panel

4шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

23

195-101

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch

8шт.

24

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

8шт.

25

S242536

ANGLE

BRACKET - side panel lock

2шт.

26

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

4шт.

27

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

8шт.

28

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

29

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

5шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

31

S95569

WASHER

- flat

5шт.

S118475

SEAL

SEAL - rubber, bulk, 1 (25.4 mm) thick x 1-1/2 inch (38 mm) wide x 10 ft (3.05 m) long

1шт.
