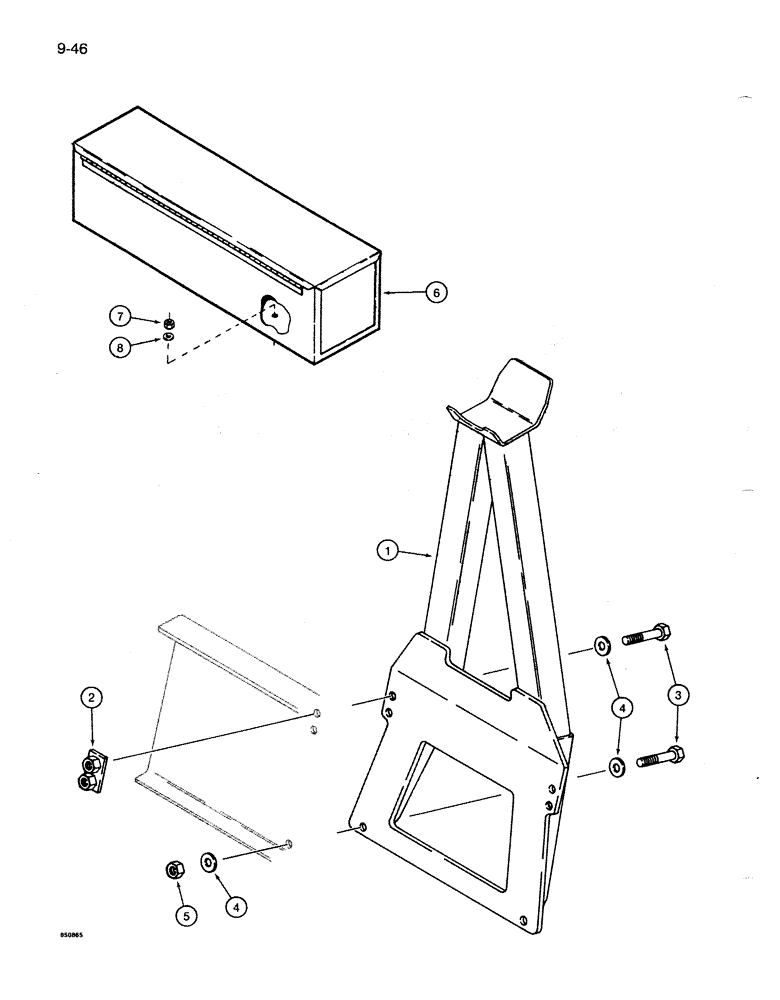

Запчасти Case 1085B (9-046) - BOOM SUPPORT AND TOOL BOX (09) - CHASSIS

1

S618286

SUPPORT

- boom rest, used on 1085B with Y boom only

1шт.

2

S221856

BAR

RETAINER - bolt

2шт.

3

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

6шт.

4

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch

8шт.

5

131-450

NUT,3/4"-10

NUT - heavy hex, self-locking, 3/4 inch NC

2шт.

6

S219842

BOX, TOOL

BOX - tool, used with both 1085B and 1086B

1шт.

7

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.
