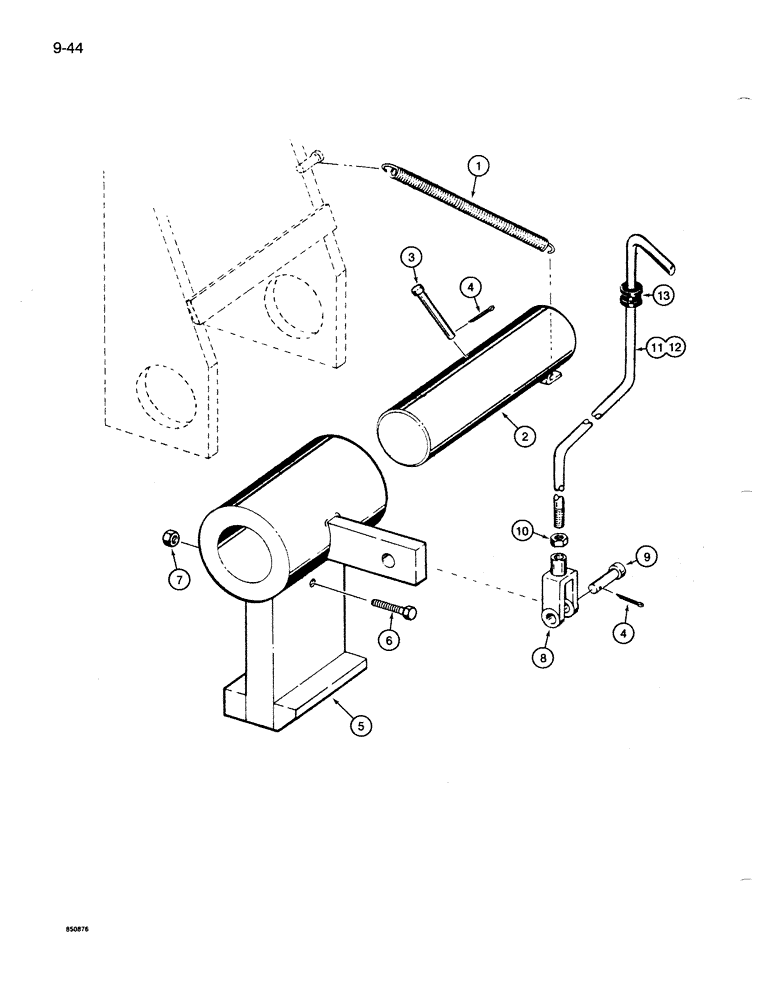

Запчасти Case 1085B (9-044) - FRONT AXLE LOCK (09) - CHASSIS

1

S49093

SPRING

- axle lock pin

2шт.

2

S207312

PIN

- front axle stop to mainframe weldment

2шт.

3

S10782

CLEVIS

PIN - clevis, axle stop pin

2шт.

4

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

5

S207311

STOP

- front axle lock

2шт.

6

123-203

CAPSCREW

BOLT - hex, full thread, 3/8 NC x 2 inch

2шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

2шт.

9

S10767

PIN

- clevis, clevis to axle stop

2шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

11

S93509

ROD

LEVER - control, front axle lock, right-hand, not shown

1шт.

12

S93510

ROD

LEVER - control, front axle lock, left-hand

1шт.

13

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- rubber, control lever

2шт.
